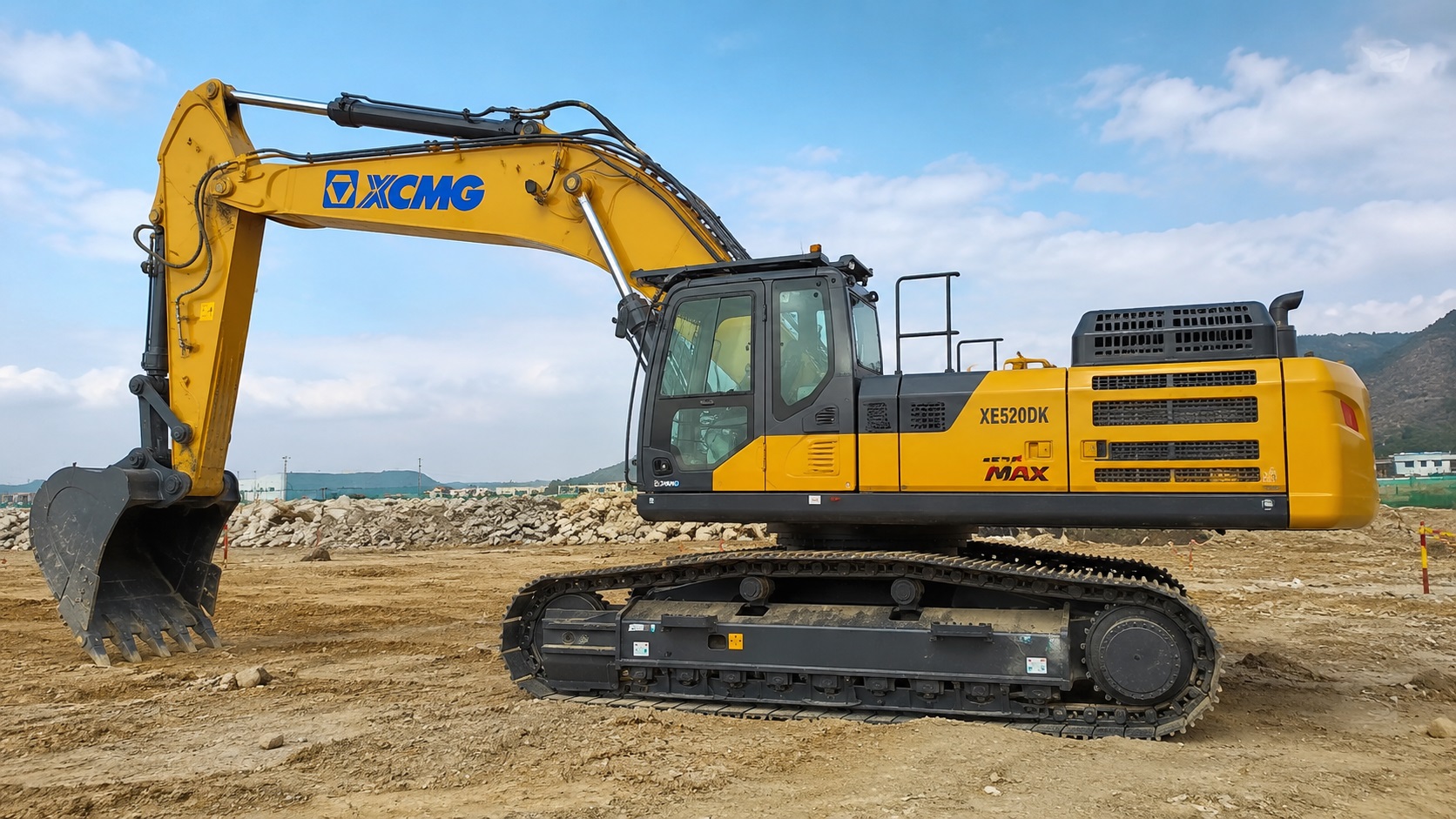

XCMG XE520DK MAX
Specifications & Parameters
| Engine Model | QSM11 |
| Rated Power(kW) | 309.5 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 1820 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 22‑24 |
| Engine Displacement(L) | 10.8 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 680 |
| Hydraulic Tank(L) | 430 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 3.6 |
| Bucket Digging Force(kN) | 330 |
| Boom Length(mm) | 6550 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 10800 |
| Maximum Digging Height(mm) | 9935 |
| Maximum Digging Depth(mm) | 7230 |
| Specifications(mm) | 11750×3340×3650 |
| Operating Weight(kg&ton) | 50200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. XE520DK MAX mining excavator adopts Cummins QSM11 national‑III electronically controlled common rail engine, large torque reserve, strong power for rock digging and heavy loading.
2. Reinforced heavy‑duty working device and lengthened L‑type chassis, excellent stability and impact resistance for quarry and open‑pit mine.
3. Optimized heavy‑load hydraulic system, large breakout force, high loading efficiency for continuous mining operation.
4. FOPS anti‑fall object safety cabin with shock absorption, low noise, comfortable for long shift mining work.
5. Centralized lubrication and large capacity oil tank, extended maintenance cycle, high attendance rate in severe mine environment.
