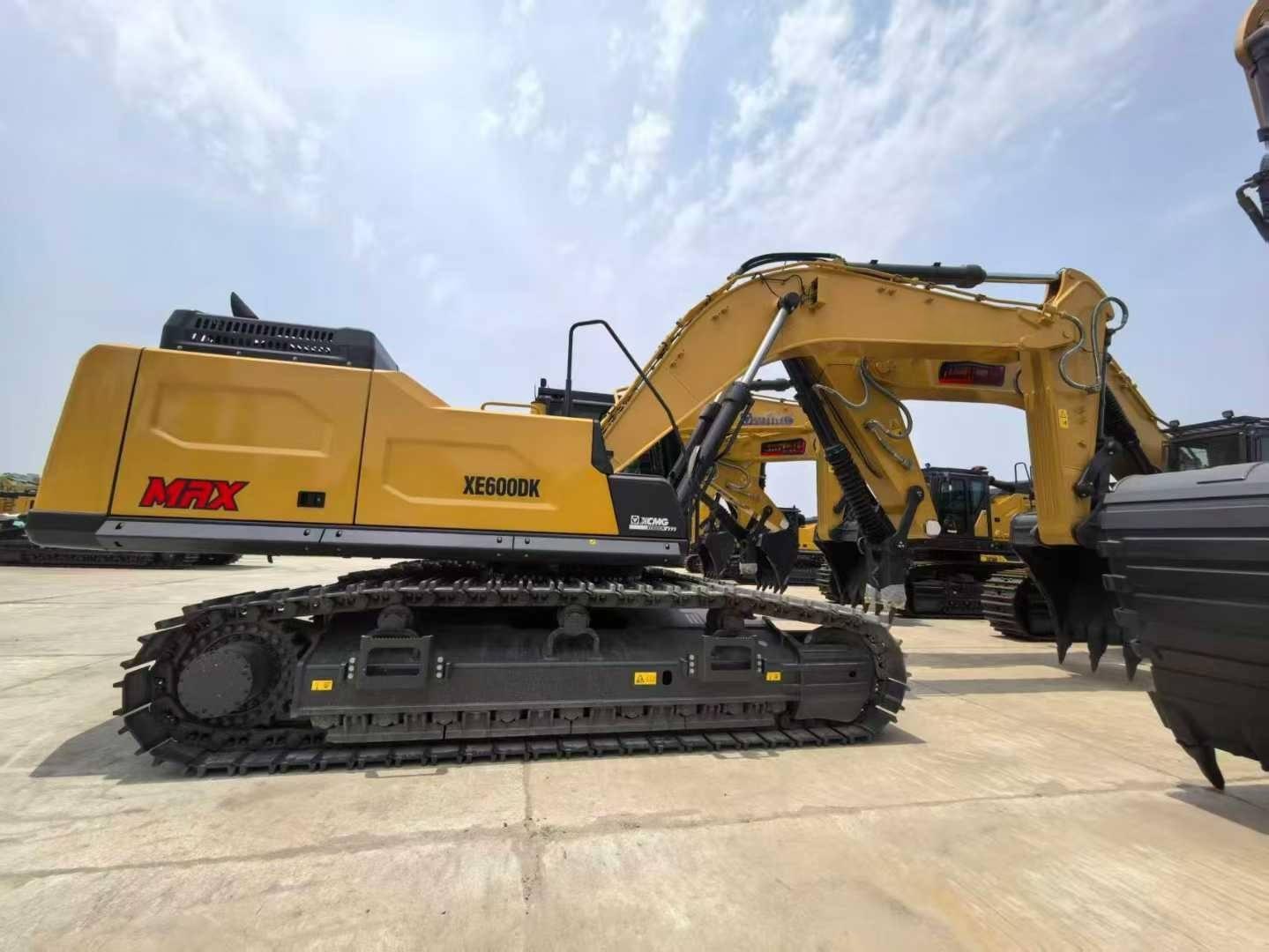

XCMG XE600DK MAX
Specifications & Parameters
| Engine Model | X12 |
| Rated Power(kW) | 336 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2170 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 22‑24 |
| Engine Displacement(L) | 11.8 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 800 |
| Hydraulic Tank(L) | 480 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 3.8 |
| Bucket Digging Force(kN) | 335 |
| Boom Length(mm) | 6800 |
| Stick Length(mm) | 3450 |
| Maximum Excavation Radius(mm) | 12440 |
| Maximum Digging Height(mm) | 11360 |
| Maximum Digging Depth(mm) | 7920 |
| Specifications(mm) | 12280×3490×3720 |
| Operating Weight(kg&ton) | 59500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. XE600DK MAX mining excavator is equipped with Cummins X12 national‑III electronically controlled common rail engine, sufficient power reserve and quick response, ideal for rock excavation and heavy loading work.
2. 240cc large displacement main pump with PIC feedforward intelligent hydraulic system, optimized power matching, high efficiency for quarry and open‑pit mining.
3. Reinforced boom, arm and heavy‑duty extended chassis, strong impact resistance and stable performance under severe mining conditions.
4. FOPS anti‑falling object safety cabin with shock absorption and low noise design, improves comfort during long continuous shifts.
5. Independent large capacity heat dissipation system and centralized lubrication layout, extended maintenance cycle and high attendance rate.
Interested in used XCMG XE600DK MAX excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
