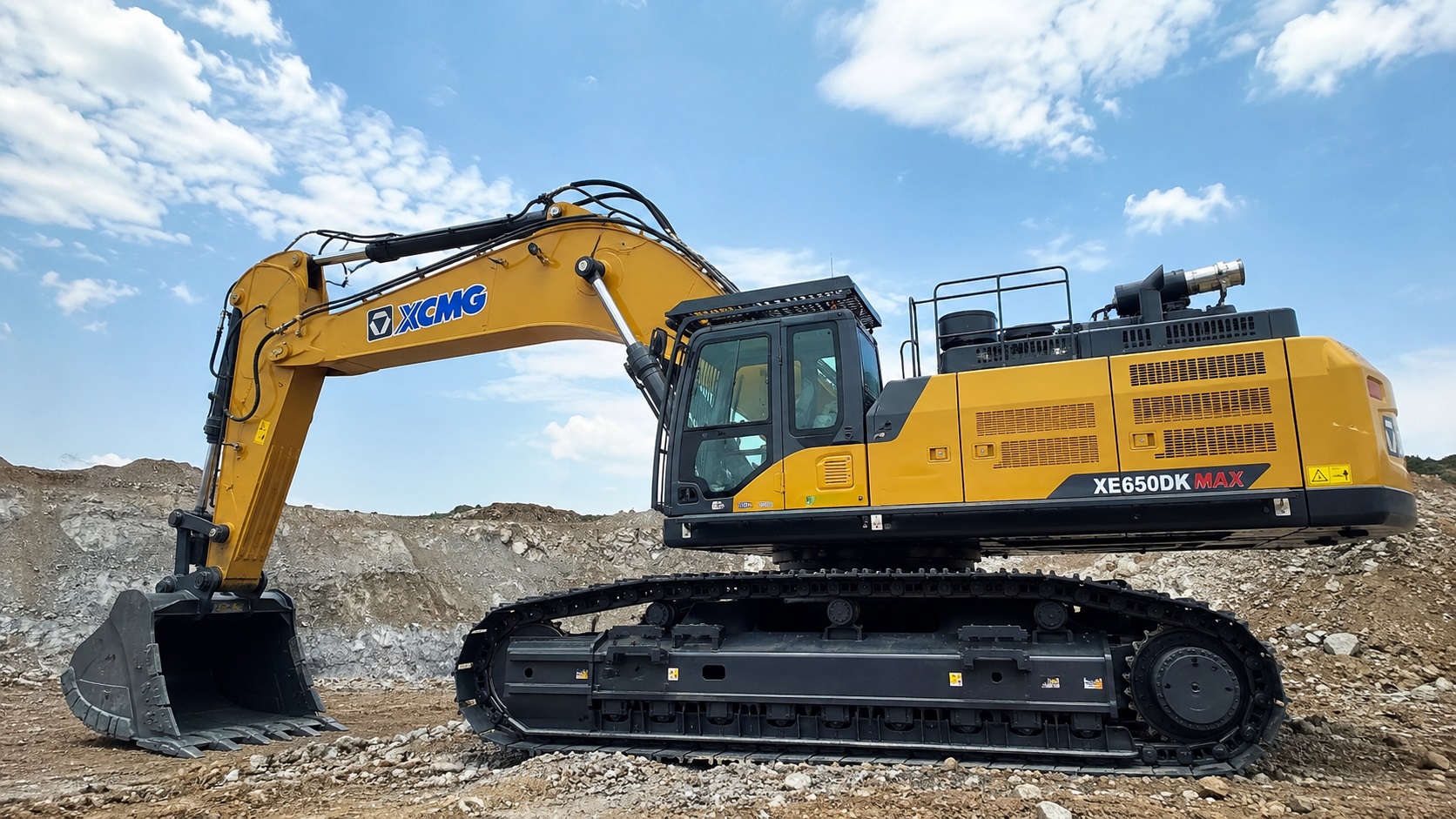

XCMG XE650DK MAX
Specifications & Parameters
| Engine Model | QSM15 |
| Rated Power(kW) | 560 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 3200 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 26‑28 |
| Engine Displacement(L) | 15 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 900 |
| Hydraulic Tank(L) | 520 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 4.4 |
| Bucket Digging Force(kN) | 385 |
| Boom Length(mm) | 6950 |
| Stick Length(mm) | 3500 |
| Maximum Excavation Radius(mm) | 12650 |
| Maximum Digging Height(mm) | 11580 |
| Maximum Digging Depth(mm) | 8050 |
| Specifications(mm) | 12560×3490×3780 |
| Operating Weight(kg&ton) | 65800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. XE650DK MAX heavy mining excavator adopts Cummins QSM15 national‑III electronically controlled common rail engine, ultra‑large torque reserve, strong power for rock excavation and heavy continuous loading.
2. Large displacement hydraulic pump and reinforced heavy‑load hydraulic system with PIC intelligent control, high working efficiency and stable compound movement under severe mining conditions.
3. Thickened boom, arm and integrated welded heavy‑duty long chassis, excellent impact resistance and overall stability in open‑pit quarry.
4. FOPS anti‑falling object shock absorption safety cabin, low noise design, greatly improves comfort for long‑time three‑shift mining operation.
5. Independent large heat dissipation system and centralized lubrication layout, extended maintenance cycle, high attendance rate and low downtime.
Interested in used XCMG XE650DK MAX excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
