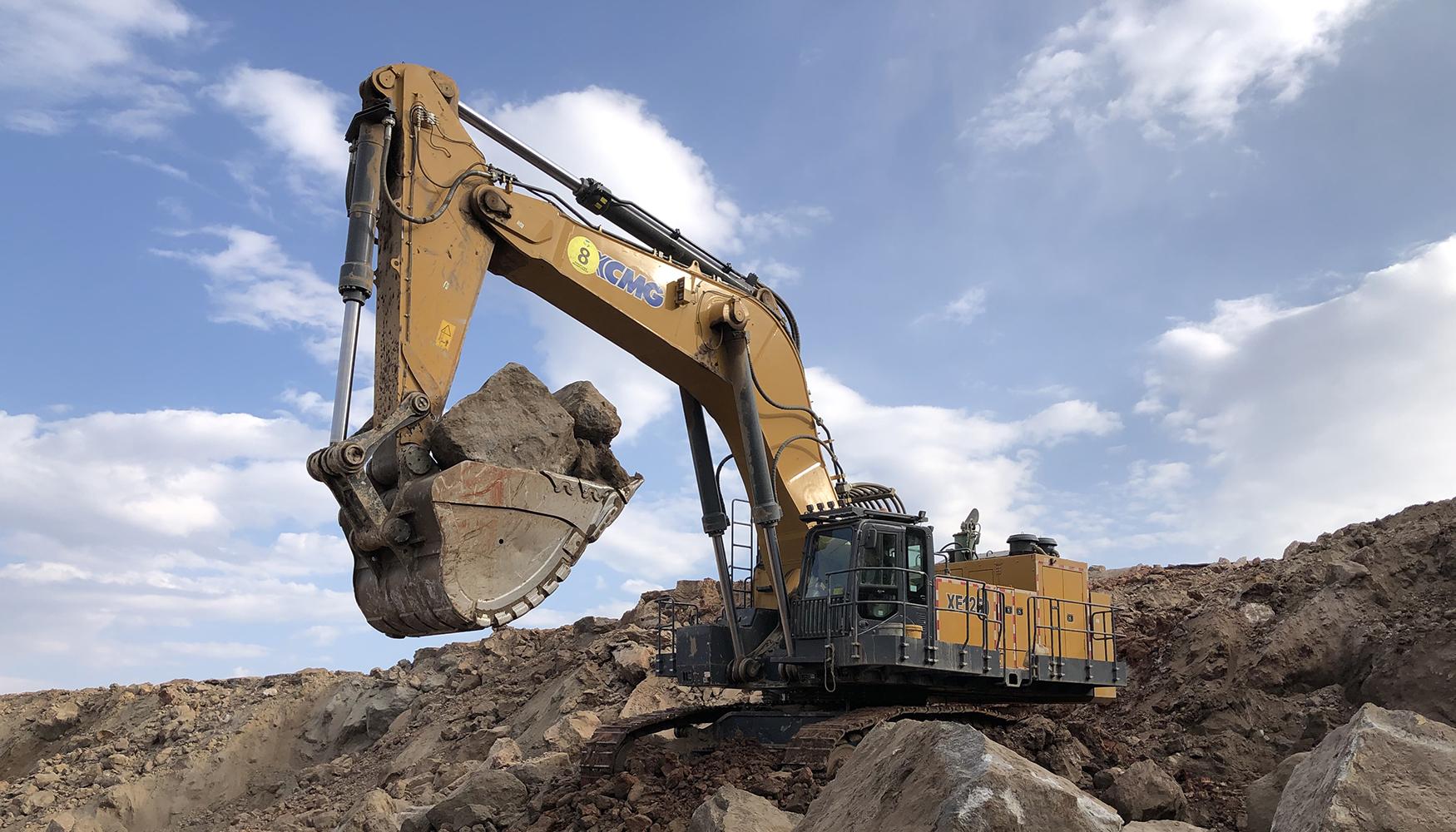

XCMG XE1250H
Specifications & Parameters
| Engine Model | QSK23 |
| Rated Power(kW) | 567 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 3468 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 48-54 |
| Engine Displacement(L) | 23 |
| Emisson | Stage V |
| Track width(mm) | 700 |
| Fuel Tank(L) | 1460 |
| Hydraulic Tank(L) | 680 |
| Travel Speed(km/h) | 3.5 |
| Bucket Capacity(m³) | 8.5 |
| Bucket Digging Force(kN) | 597 |
| Boom Length(mm) | 7550 |
| Stick Length(mm) | 3400 |
| Maximum Excavation Radius(mm) | 13860 |
| Maximum Digging Height(mm) | 8110 |
| Maximum Digging Depth(mm) | 12500 |
| Specifications(mm) | 14650×5470×4980 |
| Operating Weight(kg&ton) | 115000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. XE1250H super-large mining excavator adopts Cummins QSK23 national‑IV electronically controlled common rail engine, ultra-large torque reserve, strong power for heavy rock excavation and continuous bulk loading.
2. Three large-displacement main pumps intelligent hydraulic system with optimized power matching, stable compound movements and high efficiency for large open-pit mine stripping operations.
3. Ultra-heavy reinforced working devices and lengthened heavy-duty chassis, excellent impact resistance and stability under severe dusty mining conditions.
4. FOPS Level II anti-falling object safety cabin with air suspension seat, low-noise design to relieve fatigue during long three-shift mining work.
5. Standard automatic centralized lubrication and independent large heat dissipation system, extended maintenance cycle, high attendance rate and lower comprehensive operating cost.
