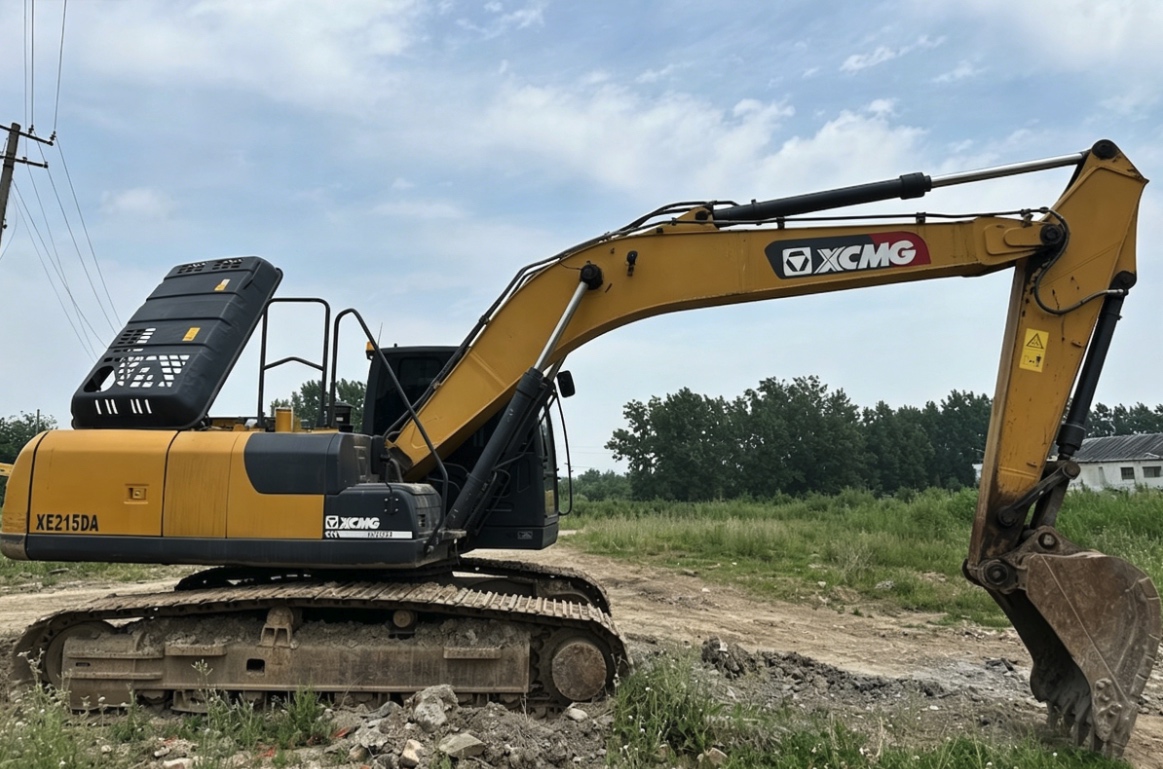

Used XCMG XE215DA
Parameters
| Engine Model | QSB7 |
| Rated Power(kW) | 135 |
| Engine Revolutions(rpm) | 2050 |
| Maximum Torque(N·m) | 740 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-13 |
| Engine Displacement(L) | 6.7 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 220 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5680 |
| Stick Length(mm) | 2910 |
| Maximum Excavation Radius(mm) | 9940 |
| Maximum Digging Height(mm) | 9620 |
| Maximum Digging Depth(mm) | 6680 |
| Specifications(mm) | 9625×2990×3100 |
| Operating Weight(kg&ton) | 21900 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
1、 Strong power and excellent energy-saving performance
Equipped with a customized six cylinder engine, the rated power reaches 135kW, providing abundant and stable power output. Adopting low-speed high torque characteristic curve matching technology, the effective output power is sufficient, and the fuel utilization rate is improved by about 5% compared to the previous generation model. The overall fuel consumption of the whole machine is excellent, with a fuel consumption of less than 12 liters per hour for conventional earthwork operations, balancing efficient operation with energy conservation and environmental protection, and fully complying with the National III emission standards.
2、 Efficient hydraulic system and intelligent control
Equipped with a new generation of efficient hydraulic system, featuring a brand new main pump, main valve, and electric control stick design, optimizing the internal structure of the valve group to reduce hydraulic shock and achieve more precise control response. Equipped with XCMG's exclusive pump independent intelligent control system, it achieves dual electric proportional valve control for independent operation of dual pumps, distributes main pump power according to demand, avoids throttling losses, and improves system conversion efficiency by 1% to 2%. The multifunctional implement control system supports one click switching of work modes to ensure that the equipment is always in optimal working condition.
3、 Enhanced structure and efficient operational capability
The working weight of the whole machine reaches 21500kg, and it adopts a reinforced chassis and enlarged and widened track design, effectively reducing the start stop impact of the boom and stick, and significantly enhancing the stability and anti shake ability of the whole vehicle. The working device has been comprehensively strengthened with proprietary technology, and the bucket capacity has been increased to 1.05m ³. The large bore bucket oil cylinder and stick oil cylinder have increased the excavation force by more than 5%, and the maximum excavation depth has reached 6680mm. The rotation and walking speed have been increased by more than 7% compared to equipment of the same level, and the efficiency of loading and transfer has been comprehensively optimized.
4、 Comfortable driving environment and intelligent management
The driver's cabin adopts a new design with a large field of view, equipped with double-layer laminated glass and efficient sound insulation and noise reduction devices, combined with high-power air conditioning and new shock absorption technology, greatly reducing operational fatigue. The integrated control panel and multi-mode control layout conform to ergonomics, ensuring smooth and seamless operation. Equipped with advanced XCMG excavator intelligent management system (XEICS), it realizes digital sharing of equipment operation data, supports remote monitoring and microservices on mobile devices, and facilitates real-time monitoring of equipment status and preventive maintenance.
5、 Wide adaptability to various working conditions and comprehensive cost-effectiveness
This model, with its stable performance, is widely used in various scenarios such as municipal construction, highway bridges, agricultural water conservancy, small and medium-sized earthwork projects, and small-scale mining operations. It maintains reliable operation in extreme environments such as high altitude and high temperature, and is praised by the market as the "king of all rounders" and the new generation "king of earthworks". Comprehensive power, fuel consumption, operational efficiency, and after-sales service system, with outstanding comprehensive cost-effectiveness, meeting the core requirements of modern engineering for efficient, low consumption, and intelligent equipment.
Photos
