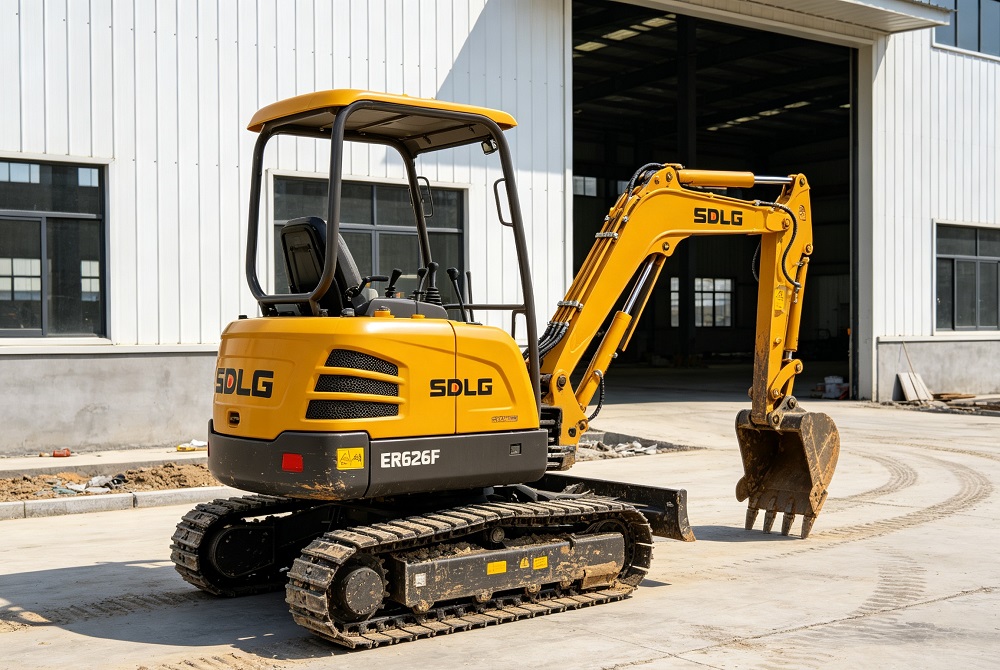

SDLG ER626F
Specifications & Parameters
| Engine Model | Kubota D1105 |
| Rated Power(kW) | 15.4 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 68 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 2.4‑3.2 |
| Engine Displacement(L) | 1.123 |
| Emisson | Tier 3 |
| Track width(mm) | 300 |
| Fuel Tank(L) | 33 |
| Hydraulic Tank(L) | 28 |
| Travel Speed(km/h) | 4 |
| Bucket Capacity(m³) | 0.08 |
| Bucket Digging Force(kN) | 24.5 |
| Boom Length(mm) | 2150 |
| Stick Length(mm) | 1320 |
| Maximum Excavation Radius(mm) | 4880 |
| Maximum Digging Height(mm) | 4210 |
| Maximum Digging Depth(mm) | 2860 |
| Specifications(mm) | 4365×1550×2460 |
| Operating Weight(kg&ton) | 2900 |
| Size Class | Mini |
| Power Type | Electric |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with imported Kubota D1105 Tier‑3 electronically controlled diesel engine, sufficient power output, low noise and stable performance for long-time continuous construction.
2. Adopts load-sensing hydraulic system with boom offset function and standard auxiliary hydraulic pipelines, compatible with breaker, auger and other attachments for multi-scene operation.
3. Short-tail revolving structure and high rigidity fixed chassis, stable operation and strong passability for municipal engineering, garden renovation and trenching work.
4. Reinforced boom and arm with stress-relief welding, good impact resistance and long service life under frequent heavy load conditions.
5. ROPS certified open safety canopy with mechanical suspension seat and LED working lights, comfortable operation and good safety protection.
Interested in used SDLG ER626F excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
