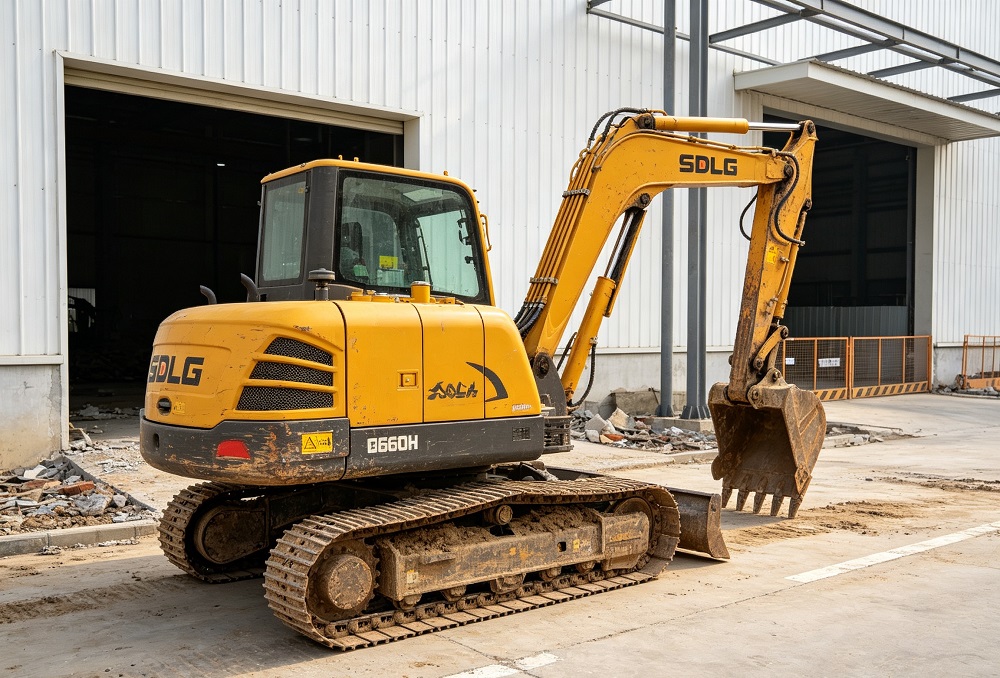

SDLG E660H
Specifications & Parameters
| Engine Model | Yanmar 4TNV98-EXSLGC |
| Rated Power(kW) | 36.2 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 209 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 3.6-4.4 |
| Engine Displacement(L) | 3.054 |
| Emisson | Tier 3 |
| Track width(mm) | 400 |
| Fuel Tank(L) | 135 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 45 |
| Boom Length(mm) | 3030 |
| Stick Length(mm) | 1540 |
| Maximum Excavation Radius(mm) | 6125 |
| Maximum Digging Height(mm) | 3760 |
| Maximum Digging Depth(mm) | 5915 |
| Specifications(mm) | 5945×1960×2660 |
| Operating Weight(kg&ton) | 6050 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Yanmar 4TNV94L-ZCSC Tier4 electronically controlled diesel engine, optimized combustion design, strong power output and good high-temperature adaptability for long continuous construction.
2. Adopts load-sensing hydraulic system with proportional pilot control, sensitive response and smooth compound movements, effectively improves operation efficiency in municipal and earthwork projects.
3. Reinforced upper and lower frame structure with high rigidity and uniform load distribution, high-strength revolving platform and durable undercarriage for various complex ground conditions.
4. High-tensile steel boom and arm with robot welding and flaw detection, forged shaft seats to enhance impact resistance and extend service life under frequent heavy loads.
5. ROPS certified enclosed safety cab with skylight and curved rear glass for wide vision, color monitor for real-time machine status monitoring, comfortable for long-shift operation.
Interested in used SDLG E660H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
