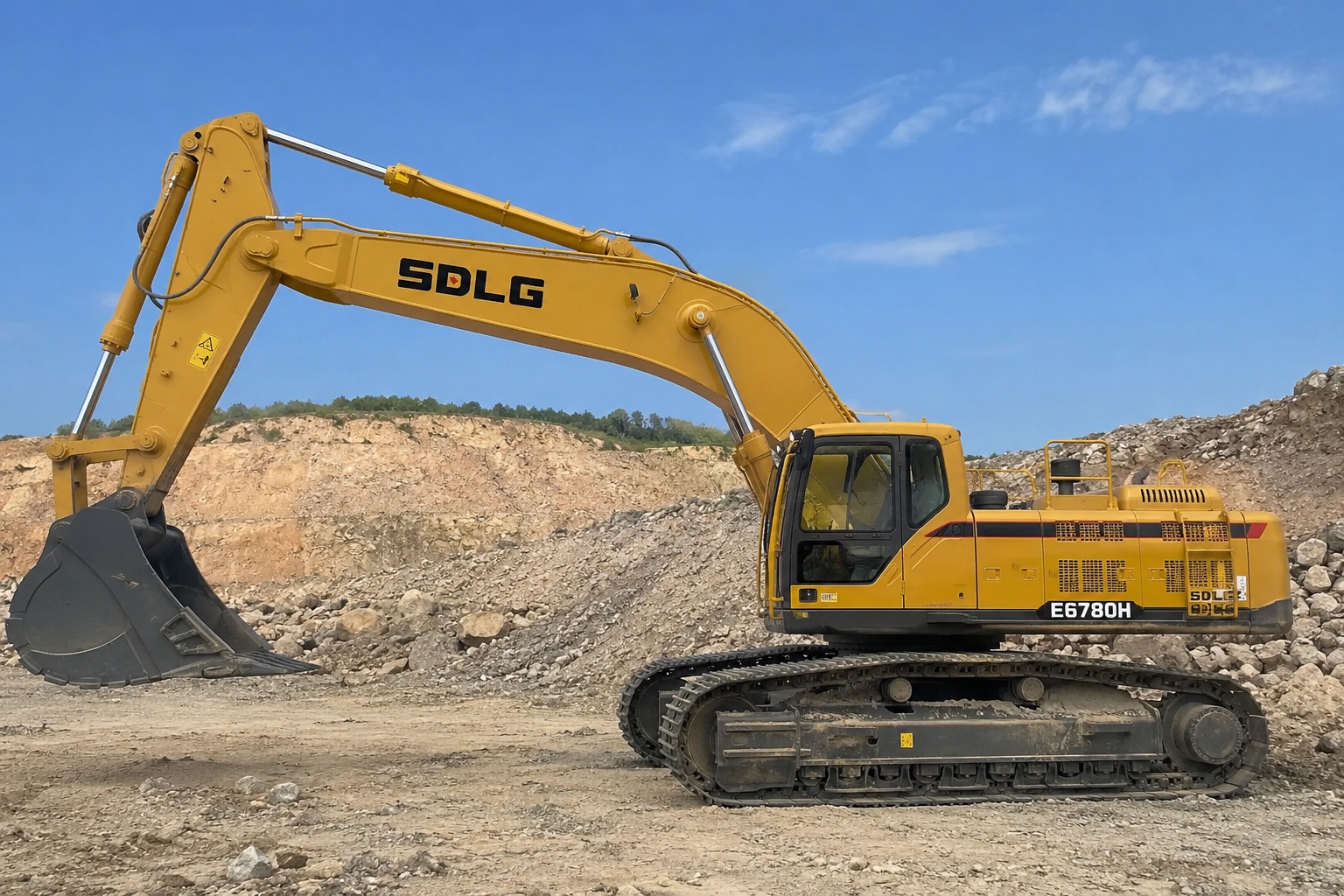

SDLG E6780H
Specifications & Parameters
| Engine Model | QSM15 77C |
| Rated Power(kW) | 563 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 3000 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 14.5 |
| Emisson | Tier 3 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 1000 |
| Hydraulic Tank(L) | 505 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 5.2 |
| Bucket Digging Force(kN) | 405.5 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 12000 |
| Maximum Digging Height(mm) | 7315 |
| Maximum Digging Depth(mm) | 11085 |
| Specifications(mm) | 12915×4322×5100 |
| Operating Weight(kg&ton) | 79000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Cummins QSM15 Tier3 electronically controlled diesel engine, matched with speed-increasing transfer box, huge low-speed torque, no urea after-treatment, low operating cost for large-scale mining.
2. Adopts full electronic positive flow hydraulic system, dual independent electric control main pumps and large-diameter main valve, fast response and smooth compound actions to improve loading efficiency.
3. Heavy-duty 90-ton class undercarriage, adjustable track gauge and full track guard, high structural strength and excellent stability under severe mine conditions.
4. Reinforced mining boom & arm with key forged parts and overall annealing treatment, standard 5.2m³ heavy rock bucket with high wear-resistant steel plate.
5. ROPS certified luxury cab with heated air suspension seat, 8-inch touch screen, panoramic camera and automatic centralized lubrication system.
