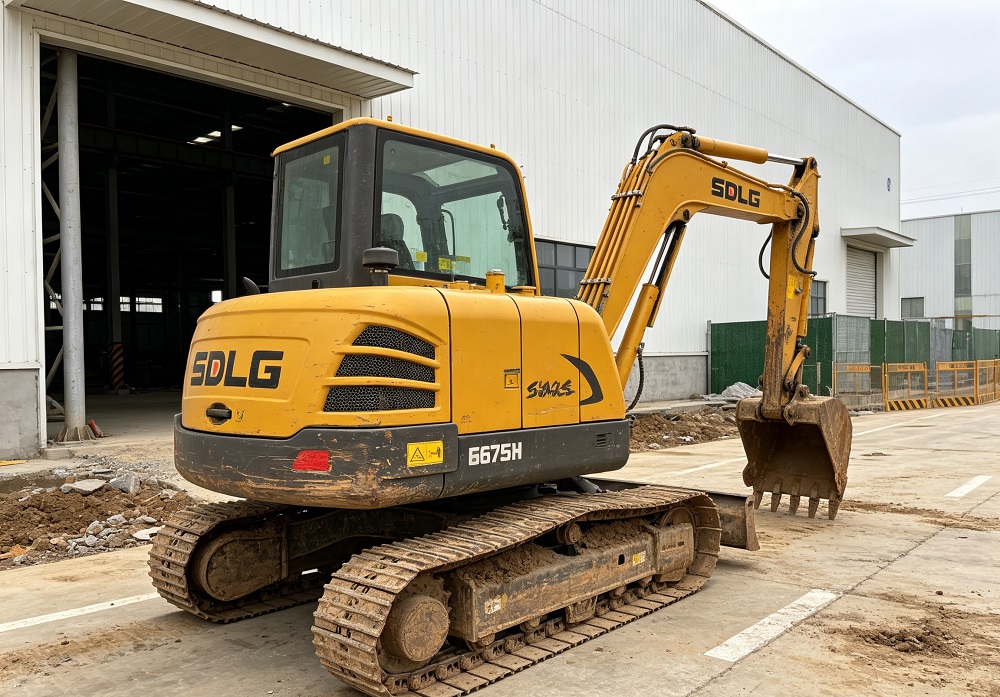

SDLG E675H
Specifications & Parameters
| Engine Model | 4TNV94L-ZCWCLG |
| Rated Power(kW) | 35.9 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 200.8 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 4.2‑5.0 |
| Engine Displacement(L) | 3.054 |
| Emisson | Tier 4 |
| Track width(mm) | 450 |
| Fuel Tank(L) | 150 |
| Hydraulic Tank(L) | 120 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 0.3 |
| Bucket Digging Force(kN) | 50 |
| Boom Length(mm) | 3100 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6340 |
| Maximum Digging Height(mm) | 4160 |
| Maximum Digging Depth(mm) | 5065 |
| Specifications(mm) | 6235×2240×2585 |
| Operating Weight(kg&ton) | 7450 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Yanmar 4TNV94L-ZCWCLG Tier4 electronically controlled diesel engine, optimized combustion design, stable power output and outstanding fuel economy for long continuous earthwork.
2. Adopts load-sensing hydraulic system with proportional pilot control, quick response and smooth compound movements, greatly improves working efficiency for trenching and earthmoving projects.
3. Rigid reinforced chassis and reasonable weight distribution, stable digging performance when handling hard soil and light hoisting operations.
4. High-tensile steel boom and arm with robot welding and flaw detection, forged shaft seats for strong impact resistance and long service life under frequent heavy loads.
5. ROPS certified enclosed safety cab with panoramic skylight, sliding front window and independent air conditioning, wide vision and comfortable long-hour operation.
