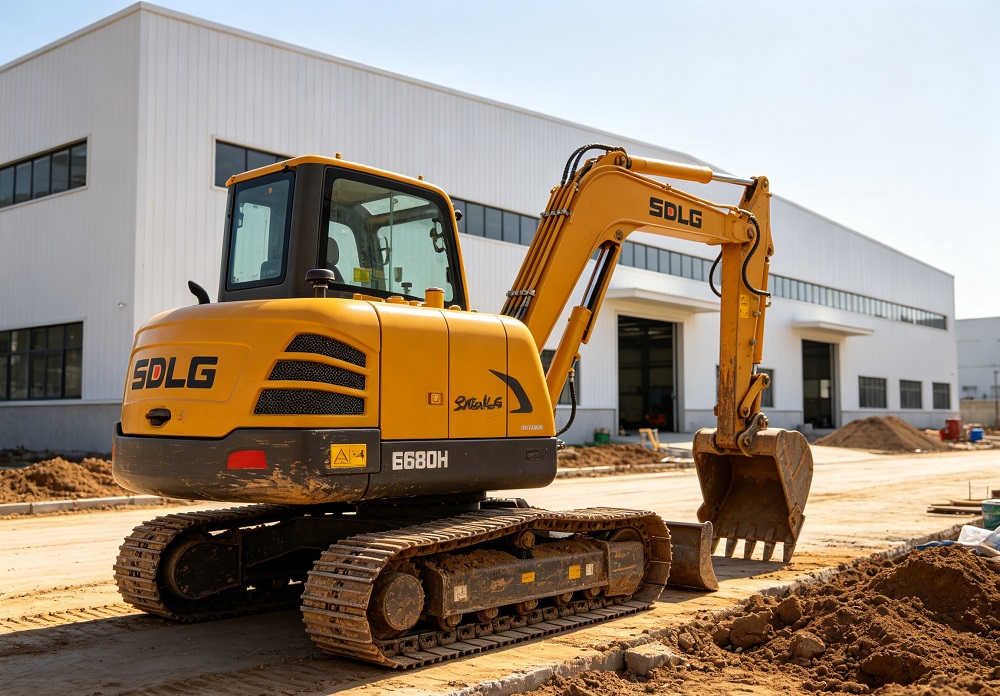

SDLG E680H
Specifications & Parameters
| Engine Model | Yanmar 4TNV98-ZCSLG |
| Rated Power(kW) | 44.3 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 245 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 4.6‑5.4 |
| Engine Displacement(L) | 3.319 |
| Emisson | Tier 4 |
| Track width(mm) | 450 |
| Fuel Tank(L) | 150 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 0.32 |
| Bucket Digging Force(kN) | 50 |
| Boom Length(mm) | 3120 |
| Stick Length(mm) | 1620 |
| Maximum Excavation Radius(mm) | 6340 |
| Maximum Digging Height(mm) | 4125 |
| Maximum Digging Depth(mm) | 5100 |
| Specifications(mm) | 6230×2340×2620 |
| Operating Weight(kg&ton) | 7800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Yanmar 4TNV98 Tier4 electronically controlled diesel engine, matched with mature DPF after-treatment system, stable power output and excellent fuel economy for long continuous construction.
2. Adopts load-sensing hydraulic system with proportional pilot control, fast response and smooth compound movements, greatly improves working efficiency for earthmoving and municipal renovation.
3. Reinforced chassis and optimized upper platform layout, reasonable weight distribution, outstanding stability when digging hard soil and light hoisting operation.
4. High-tensile steel boom and arm with robot welding and flaw detection, enhanced structural strength and long service life under frequent heavy loads.
5. New ROPS certified enclosed safety cab with 7-inch color monitor, built-in cooling box and storage box, wide vision and comfortable long-hour operation.
Interested in used SDLG E680H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
