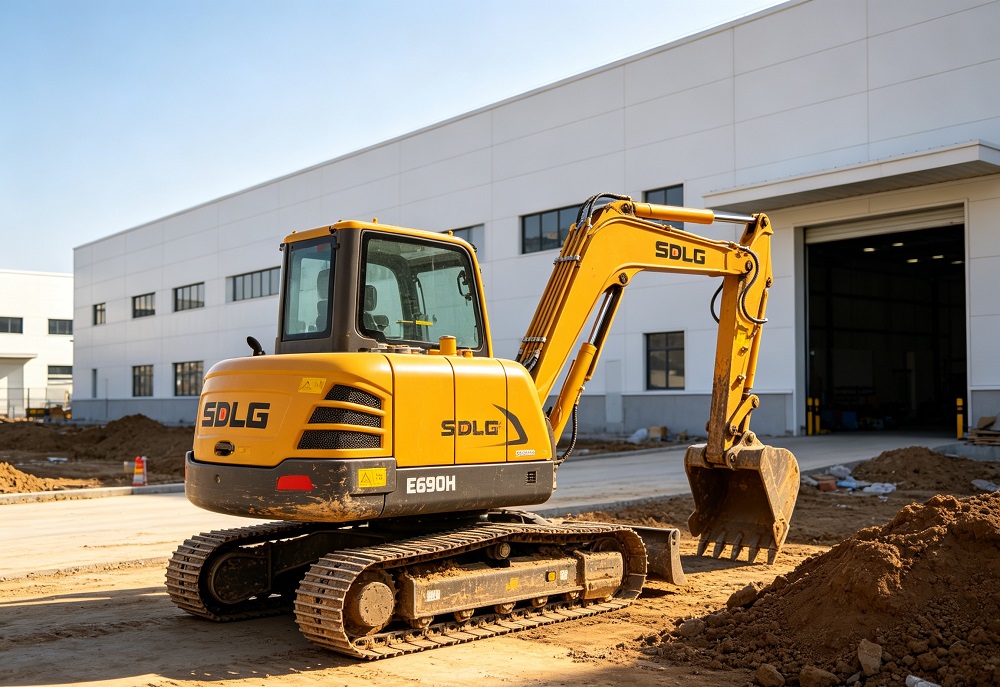

SDLG E690H
Specifications & Parameters
| Engine Model | 4TNV98CT-CVCLG |
| Rated Power(kW) | 53.7 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 295.5 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5.0‑5.8 |
| Engine Displacement(L) | 3.319 |
| Emisson | Tier 4 |
| Track width(mm) | 450 |
| Fuel Tank(L) | 150 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 0.34 |
| Bucket Digging Force(kN) | 60 |
| Boom Length(mm) | 3120 |
| Stick Length(mm) | 1620 |
| Maximum Excavation Radius(mm) | 6340 |
| Maximum Digging Height(mm) | 4125 |
| Maximum Digging Depth(mm) | 5100 |
| Specifications(mm) | 6230×2340×2620 |
| Operating Weight(kg&ton) | 8550 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Yanmar 4TNV98CT-CVCLG Tier4 electronically controlled diesel engine, high torque at low speed, strong power reserve and excellent fuel economy for heavy-duty earthwork.
2. Adopts mature load-sensing hydraulic system with optimized power matching, quick response and smooth compound movements, greatly improves working efficiency for municipal and trenching projects.
3. Reinforced upper frame and heavy-duty undercarriage, uniform load distribution and high stability when digging hard soil and light hoisting operations.
4. High-tensile steel boom and arm with robot welding and flaw detection, enhanced structural strength and long service life under frequent heavy impact loads.
5. New ROPS certified enclosed safety cab with 7-inch color monitor, larger interior space and arc rear window for wide vision, comfortable for long-hour operation.
Interested in used SDLG E690H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
