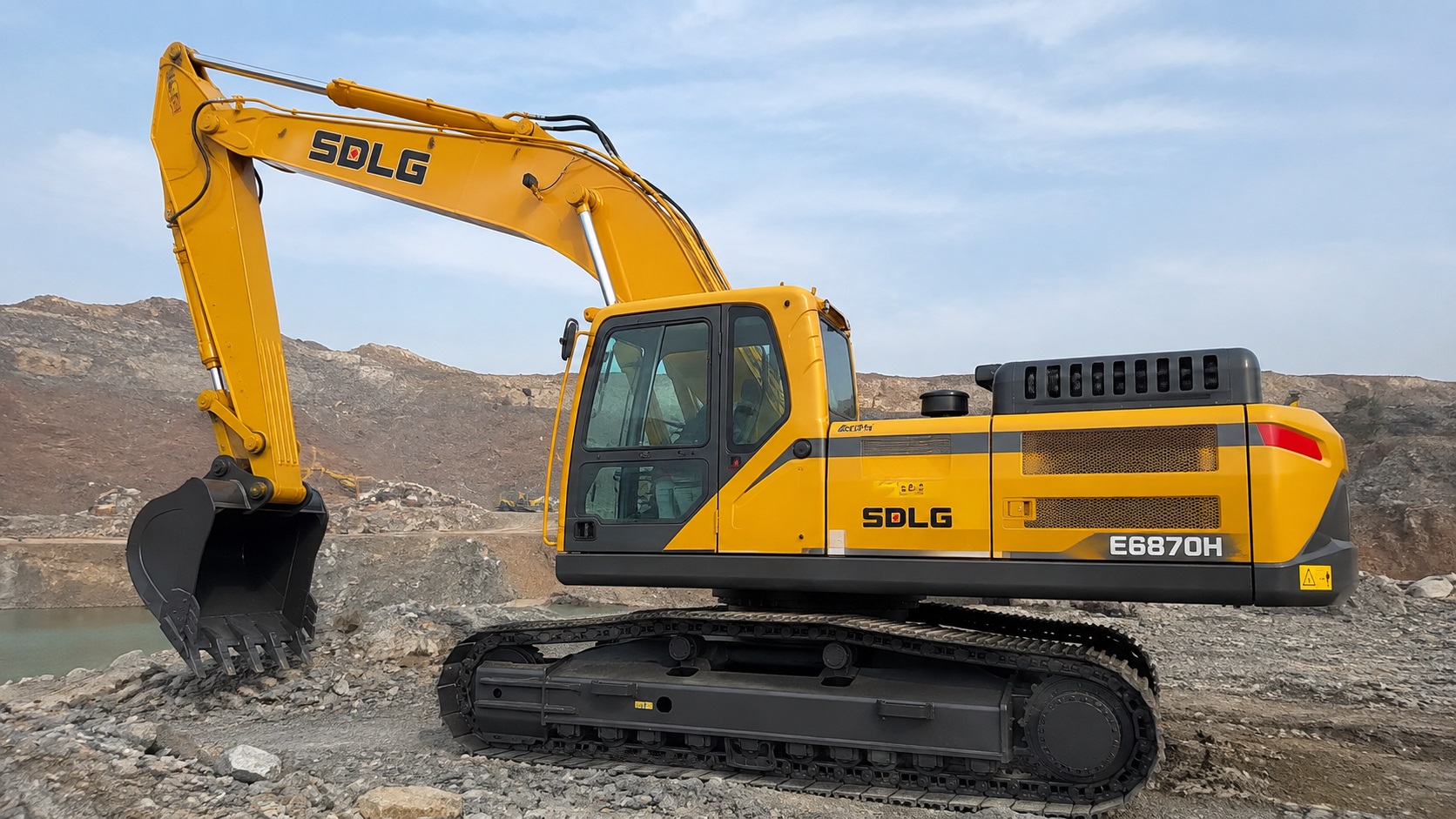

SDLG E6870H
Specifications & Parameters
| Engine Model | Cummins M15 |
| Rated Power(kW) | 563 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 3000 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19‑23 |
| Engine Displacement(L) | 14.5 |
| Emisson | Tier 4 |
| Track width(mm) | 650 |
| Fuel Tank(L) | 1000 |
| Hydraulic Tank(L) | 505 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 5.6 |
| Bucket Digging Force(kN) | 418.6 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 12100 |
| Maximum Digging Height(mm) | 7390 |
| Maximum Digging Depth(mm) | 11150 |
| Specifications(mm) | 13100×4400×5150 |
| Operating Weight(kg&ton) | 84000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Cummins M15 Tier4 electronically controlled diesel engine, twin turbo design, huge low-speed torque, no urea required, greatly reducing operating cost for large open-pit mines.
2. Adopts full electronic positive flow hydraulic system with dual independent electric main pumps and 36mm large bore main valve, fast response and smooth combined actions to improve loading cycle efficiency.
3. 90-ton class heavy-duty mining undercarriage with adjustable track gauge, reinforced boom & arm with forged key parts and overall annealing treatment, strong impact resistance under harsh mine conditions.
4. ROPS luxury cab with air suspension heated seat, 8-inch touch monitor, panoramic camera and automatic centralized lubrication system for long-shift comfortable operation.
5. Dual independent temperature control radiator with reversible cooling fan for self-cleaning, excellent heat dissipation and adaptability for continuous high-load operation.
Interested in used SDLG E6870H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
