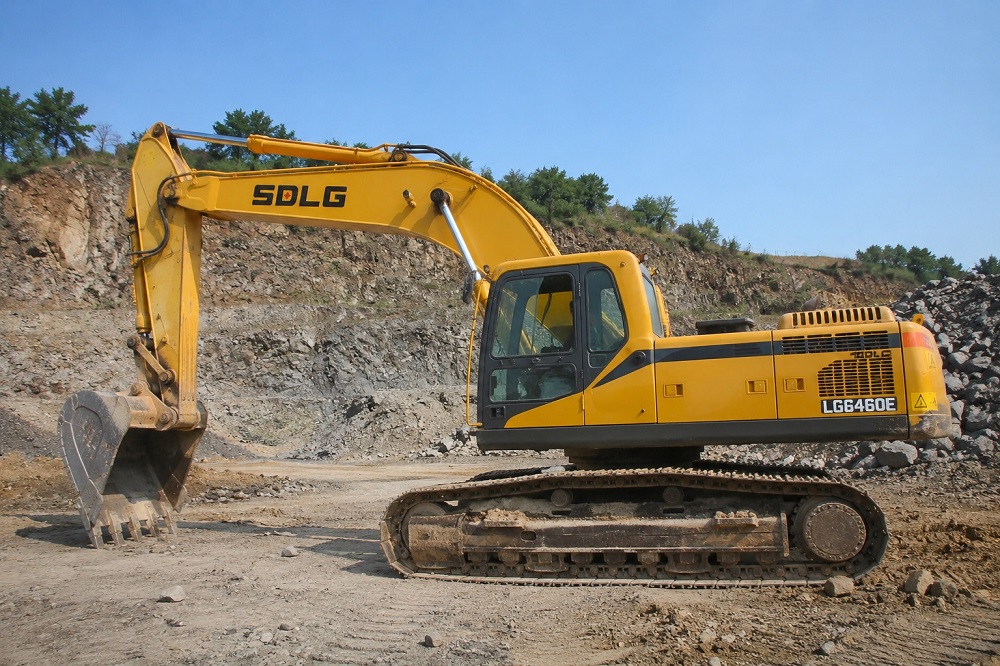

SDLG LG6460E
Specifications & Parameters
| Engine Model | SD130A |
| Rated Power(kW) | 198 |
| Engine Revolutions(rpm) | 1700 |
| Maximum Torque(N·m) | 1475 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19‑22 |
| Engine Displacement(L) | 13 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 515 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 2.5 |
| Bucket Digging Force(kN) | 260 |
| Boom Length(mm) | 6300 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11650 |
| Maximum Digging Height(mm) | 10820 |
| Maximum Digging Depth(mm) | 7950 |
| Specifications(mm) | 12140×3340×3650 |
| Operating Weight(kg&ton) | 44300 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2014 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with SDLG SD130A 13L large-displacement Tier‑3 electronically controlled engine, low-speed high torque output, three-stage fuel filtration system for stable and reliable performance under heavy mining and quarry conditions.
2. Adopts Kawasaki double-pump constant-power negative flow hydraulic system with boom regeneration and swing priority function, fast response and smooth compound movements to improve high-load construction efficiency.
3. Reinforced widened X-type heavy-duty crawler chassis, optimized ground pressure, outstanding stability and trafficability on rocky, muddy and uneven quarry sites.
4. Mining-type reinforced boom and arm with stress-relief welding craft, strong impact resistance for long-time continuous heavy-load operation.
5. Sealed sound-insulated ROPS safety cabin with shock-absorption suspension seat, dual-filter air conditioning and vibration damping design to reduce operator fatigue during long shifts.
