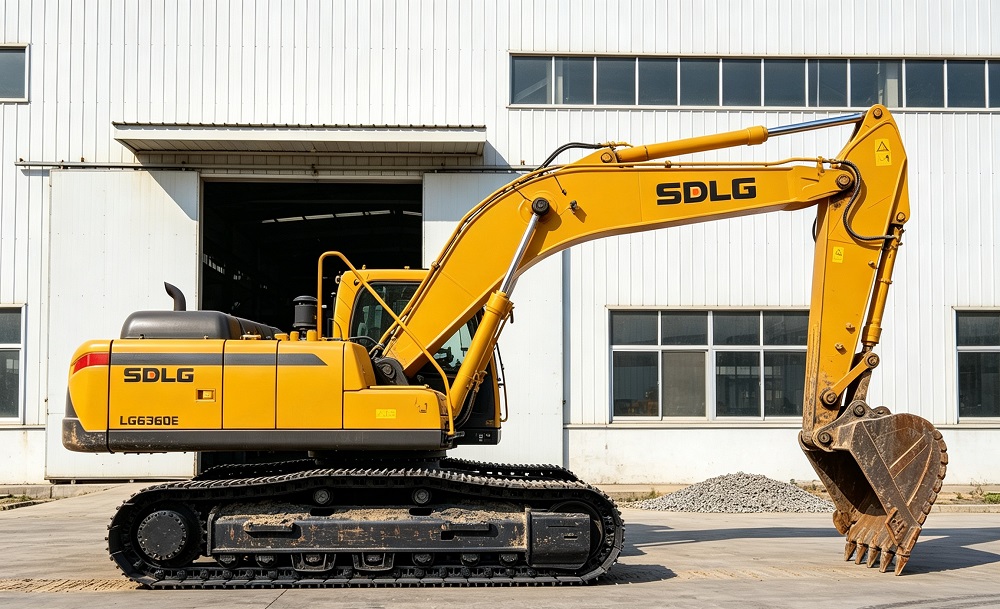

SDLG LG6360E
Specifications & Parameters
| Engine Model | SD130A |
| Rated Power(kW) | 198 |
| Engine Revolutions(rpm) | 1700 |
| Maximum Torque(N·m) | 1475 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 17‑20 |
| Engine Displacement(L) | 13 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 515 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 1.9 |
| Bucket Digging Force(kN) | 236 |
| Boom Length(mm) | 6000 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11130 |
| Maximum Digging Height(mm) | 10170 |
| Maximum Digging Depth(mm) | 7450 |
| Specifications(mm) | 11020×3340×3580 |
| Operating Weight(kg&ton) | 37800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2013 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with SDLG dedicated 13L large-displacement Tier‑3 electronically controlled engine, powerful low-speed torque output, three-stage filtration system for high reliability in heavy mining conditions.
2. Adopts double-pump constant-power negative flow hydraulic system with auto-sensing working mode, boom & arm flow regeneration and swing priority for efficient and smooth compound movements.
3. Reinforced X-type widened chassis and lengthened heavy-duty crawler, low ground pressure, great stability and trafficability on rocky and muddy quarry sites.
4. Heavy-duty reinforced boom and mining-type arm with stress-relief welding, strong impact resistance for long-time continuous heavy-load operation.
5. Spacious sealed sound-insulated ROPS cabin with shock-absorption seat, dual-filter air conditioning and silicone rubber vibration dampers for comfortable long-shift operation.
Interested in used SDLG LG6360E excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
