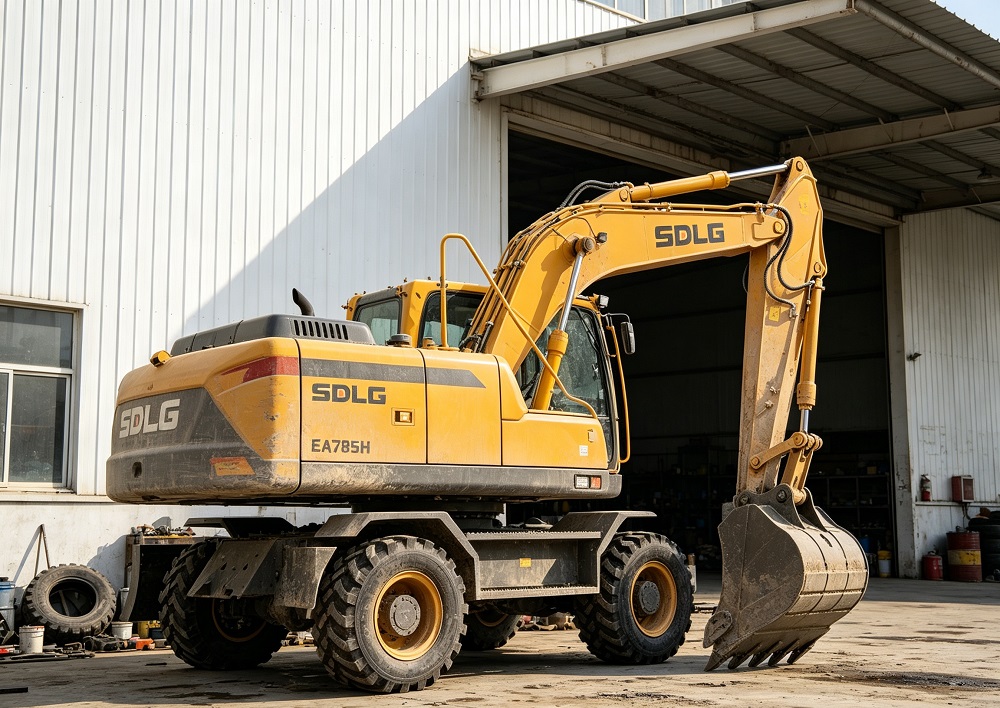

SDLG EA785H
Specifications & Parameters
| Engine Model | YCF3075‑T475 |
| Rated Power(kW) | 55.8 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 265 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6.8-8.2 |
| Engine Displacement(L) | 3.054 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 140 |
| Hydraulic Tank(L) | 85 |
| Travel Speed(km/h) | 30 |
| Bucket Capacity(m³) | 0.30 |
| Bucket Digging Force(kN) | 48 |
| Boom Length(mm) | 3450 |
| Stick Length(mm) | 1950 |
| Maximum Excavation Radius(mm) | 6790 |
| Maximum Digging Height(mm) | 4830 |
| Maximum Digging Depth(mm) | 3440 |
| Specifications(mm) | 6520×2230×2940 |
| Operating Weight(kg&ton) | 7800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Yuchai YCF3075‑T475 national‑IV electronically controlled turbo engine, powerful torque output, reliable performance under heavy‑load municipal working conditions.
2. High‑efficiency load‑sensing hydraulic system delivers fast and smooth compound movements, greatly improves working efficiency for trenching, demolition and material handling.
3. Adopts Carraro transmission and heavy‑duty wheel‑side wet‑brake axle, strong passing performance for paved road and rugged construction ground.
4. Reinforced boom and arm with stress‑relief welding process, excellent impact resistance for long‑time continuous operation.
5. Spacious enclosed air‑conditioned cabin with 360‑degree visibility, reversing image and ergonomic suspension seat, improves operation safety and comfort.
Interested in used SDLG EA785H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
