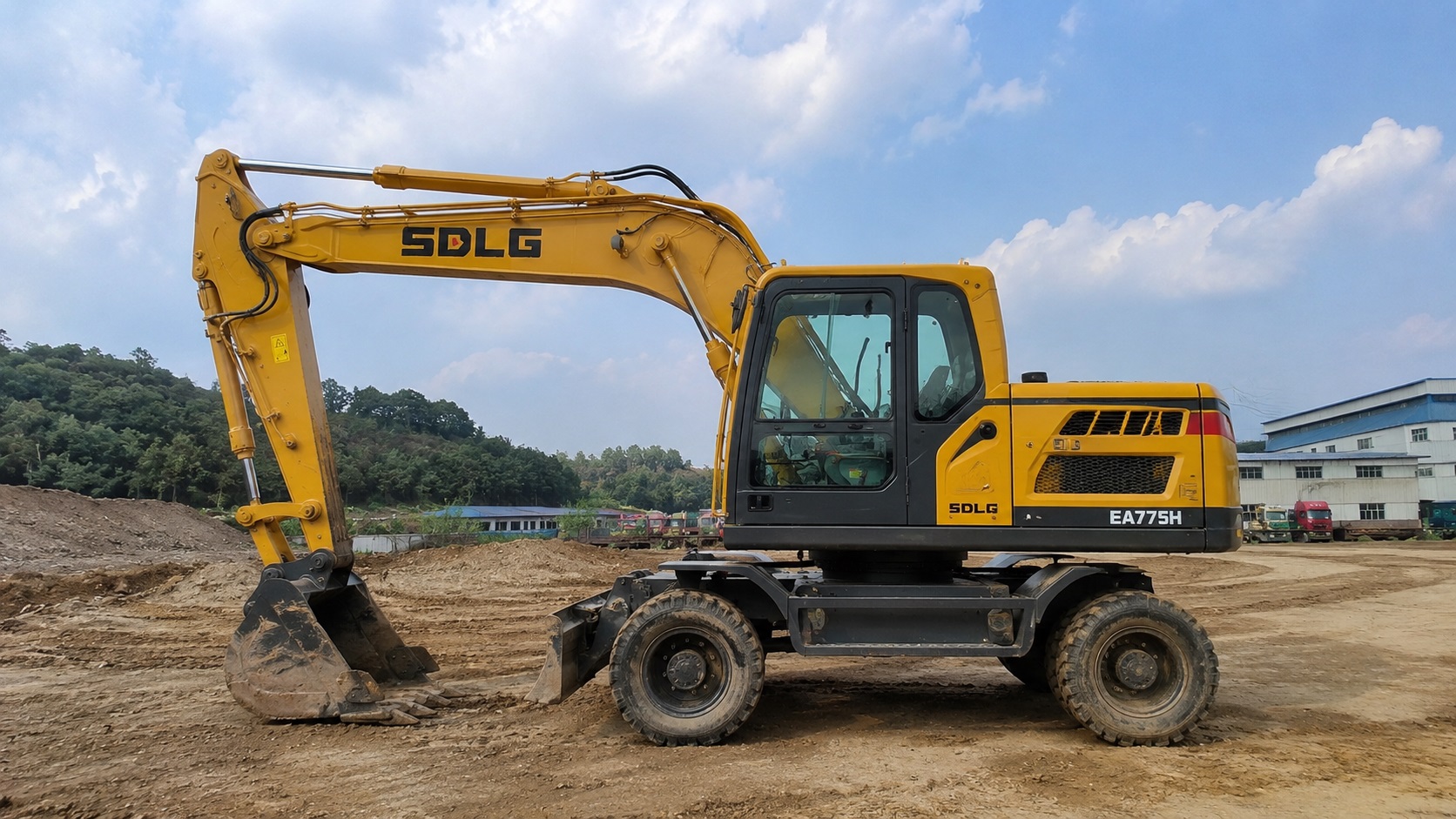

SDLG EA775H
Specifications & Parameters
| Engine Model | YCF3050‑T450 |
| Rated Power(kW) | 36.8 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 170 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5‑6.5 |
| Engine Displacement(L) | 2.997 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 120 |
| Hydraulic Tank(L) | 75 |
| Travel Speed(km/h) | 30 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 33 |
| Boom Length(mm) | 3400 |
| Stick Length(mm) | 1900 |
| Maximum Excavation Radius(mm) | 6489 |
| Maximum Digging Height(mm) | 4654 |
| Maximum Digging Depth(mm) | 3220 |
| Specifications(mm) | 6130×2116×2898 |
| Operating Weight(kg&ton) | 6800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Powered by Yuchai YCF3050‑T450 national‑IV turbocharged engine, no DPF regeneration required, low maintenance cost and stable power output。
2. Advanced load‑sensing hydraulic system realizes smooth compound movements, improves operating efficiency for municipal trench digging and landscaping jobs。
3. Reinforced wheel‑drive chassis with heavy‑duty wheel‑side wet‑brake axle, good adaptability for paved road and uneven construction ground。
4. Optimized boom and arm structure with stress‑relief welding technology, strong durability for long‑time continuous operation.
5. Human‑friendly enclosed cabin equipped with air‑conditioning, reversing image and comfortable suspension seat, greatly improves operation safety and comfort.
Interested in used SDLG EA775H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
