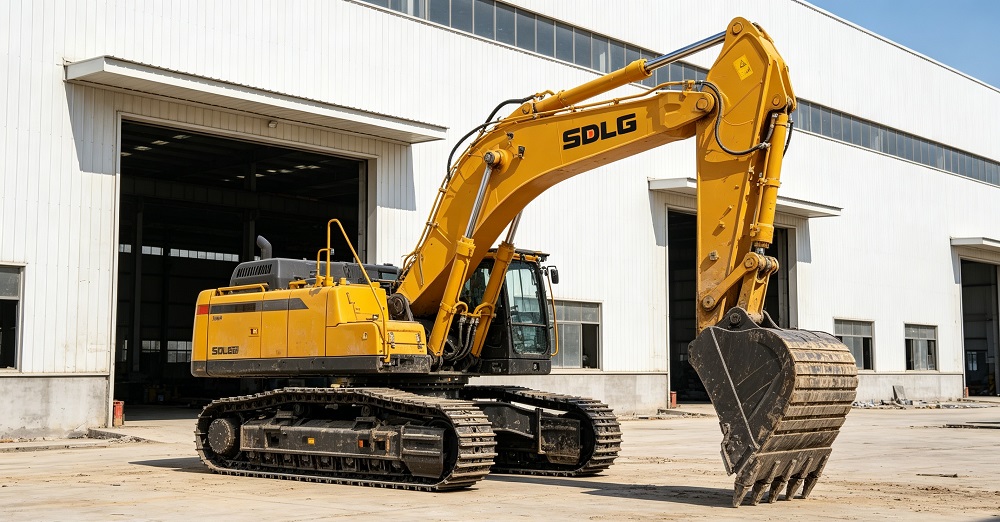

SDLG E6800H
Specifications & Parameters
| Engine Model | Cummins QSK19 |
| Rated Power(kW) | 597 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 3560 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 40-46 |
| Engine Displacement(L) | 19 |
| Emisson | Stage V |
| Track width(mm) | 850 |
| Fuel Tank(L) | 950 |
| Hydraulic Tank(L) | 480 |
| Travel Speed(km/h) | 4.3 |
| Bucket Capacity(m³) | 5.2 |
| Bucket Digging Force(kN) | 430 |
| Boom Length(mm) | 8000 |
| Stick Length(mm) | 3400 |
| Maximum Excavation Radius(mm) | 13600 |
| Maximum Digging Height(mm) | 12800 |
| Maximum Digging Depth(mm) | 8800 |
| Specifications(mm) | 13800×4380×4950 |
| Operating Weight(kg&ton) | 79000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Cummins QSK19 Stage V heavy-duty engine, powerful and stable power output, fully adapted to severe heavy-load open-pit mining conditions.
2. Large-flow heavy load-sensing hydraulic system provides strong digging force and coordinated smooth compound movements, greatly improving mining loading cycle efficiency.
3. Ultra-heavy reinforced boom, arm and bucket adopt thickened high wear-resistant steel, specially designed for heavy rock excavation and bulk material shoveling.
4. Extra strengthened heavy-duty undercarriage, reinforced track frame and wide thick track shoes, stable driving and working on rugged mine ground.
5. ROPS/FOPS certified large safety cab, suspended shock absorption seat, low noise and vibration, effectively relieve operator fatigue during long shifts.
