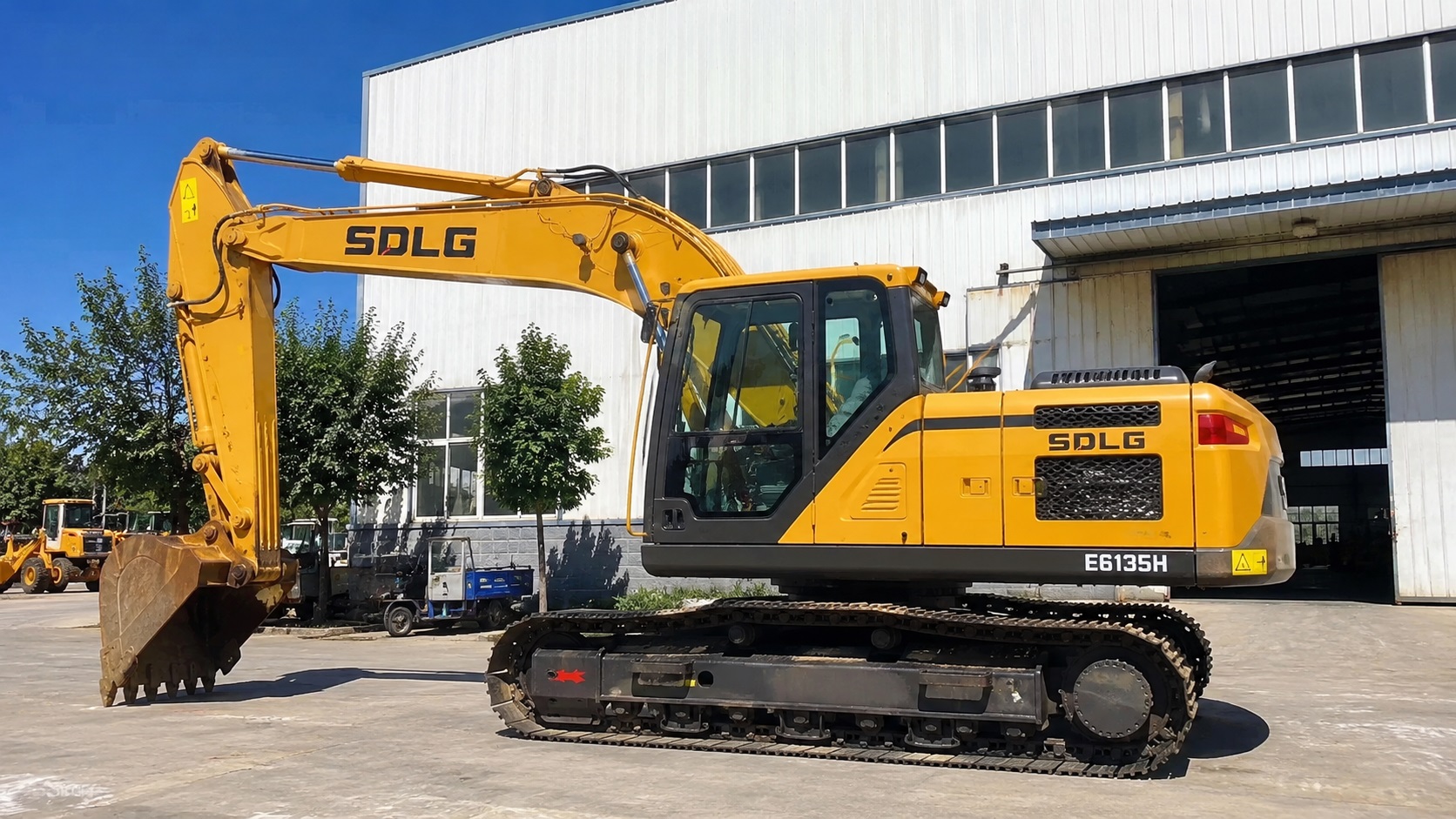

SDLG E6135H
Specifications & Parameters
| Engine Model | B3.9CS4115C |
| Rated Power(kW) | 85 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 480 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.5-10 |
| Engine Displacement(L) | 3.9 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 140 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 0.55 |
| Bucket Digging Force(kN) | 79.5 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8330 |
| Maximum Digging Height(mm) | 8420 |
| Maximum Digging Depth(mm) | 5530 |
| Specifications(mm) | 7750×2490×2830 |
| Operating Weight(kg&ton) | 12800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with Cummins B3.9CS4115C engine meeting Stage V emission standard, strong power output and excellent high-altitude adaptability.
2. Advanced negative flow hydraulic system provides sufficient oil flow, smooth combined movements and high construction efficiency.
3. Optimized power matching design effectively reduces overall fuel consumption and lowers operating costs.
4. Reinforced boom, arm and bucket with high tensile steel plate, robotic welding and flaw detection for long service life.
5. Heavy-duty reinforced undercarriage, stable driving on muddy, sloped and uneven working sites.
Interested in used SDLG E6135H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
