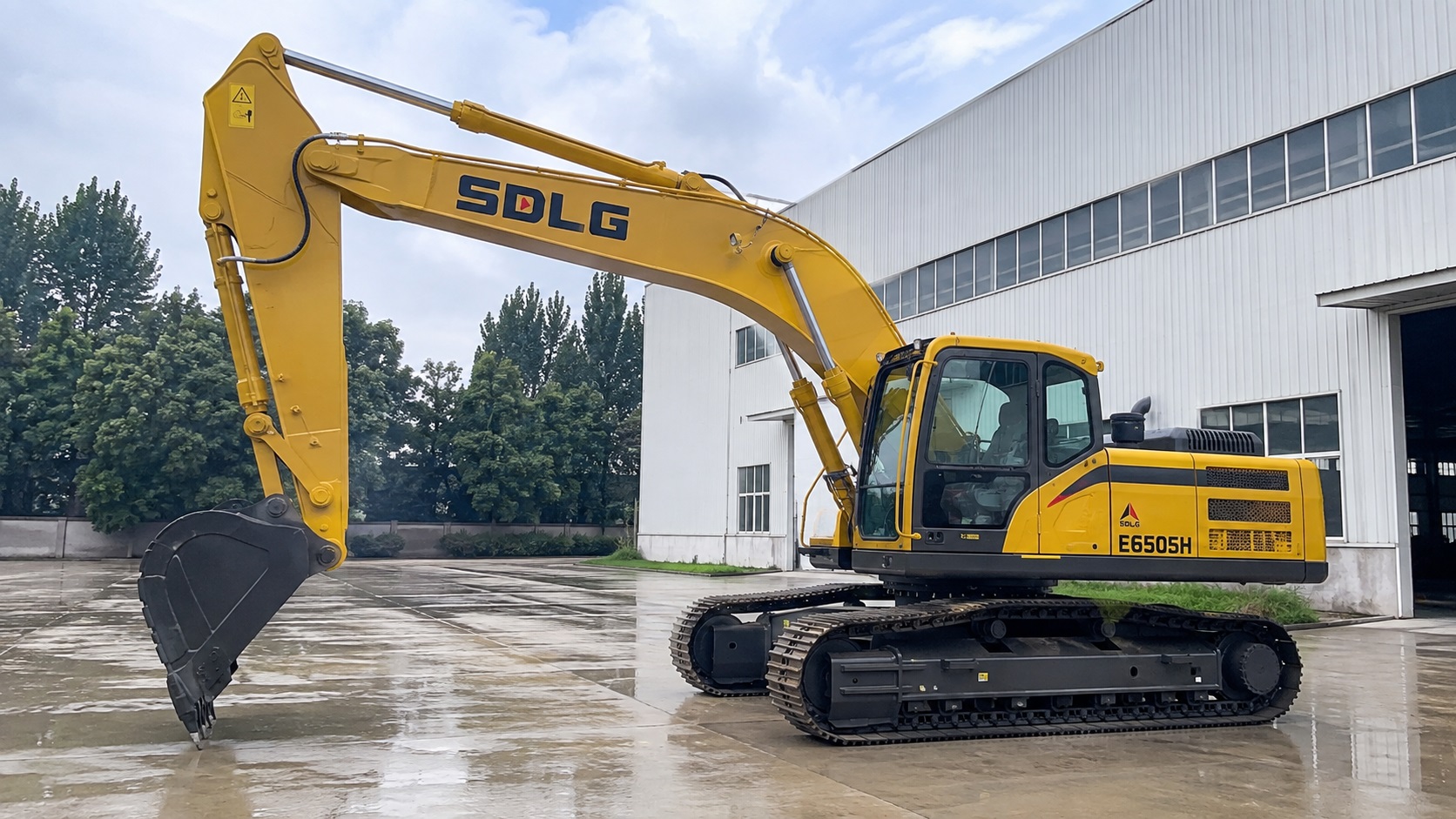

SDLG E6505H
Specifications & Parameters
| Engine Model | X12S3A360 |
| Rated Power(kW) | 268 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1640 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 29‑33 |
| Engine Displacement(L) | 11.8 |
| Emisson | Stage V |
| Track width(mm) | 700 |
| Fuel Tank(L) | 820 |
| Hydraulic Tank(L) | 500 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 3 |
| Bucket Digging Force(kN) | 335 |
| Boom Length(mm) | 7300 |
| Stick Length(mm) | 3300 |
| Maximum Excavation Radius(mm) | 12320 |
| Maximum Digging Height(mm) | 11650 |
| Maximum Digging Depth(mm) | 8250 |
| Specifications(mm) | 12360×3850×4080 |
| Operating Weight(kg&ton) | 52000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. SDLG E6505H excavator is fitted with Cummins X12S3A360 heavy-duty engine, delivering strong, stable power and high durability for mining, quarrying and large earthmoving projects.
2. Reinforced heavy boom & arm match high-power load-sensing hydraulic system, offering powerful digging force, smooth compound movement and precise control.
3. Complete auxiliary hydraulic piping supports rock breaker, ripper and other heavy attachments to realize multi-functional operation.
4. ROPS/FOPS certified luxury cabin with air suspension seat and air conditioner improves operator safety and comfort during long shifts.
5. Centralized maintenance layout and large service access covers shorten inspection time and reduce overall operating cost.
Interested in used SDLG E6505H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
