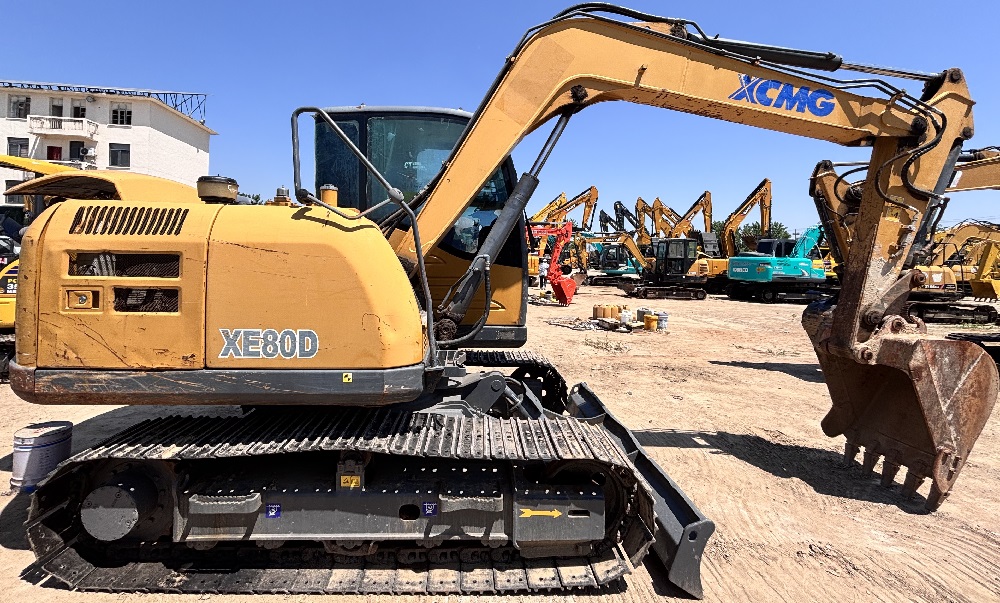

XCMG XE80D
Specifications & Parameters
| Engine Model | Yanmar 4TNV98-ZCSXG |
| Rated Power(kW) | 44.8 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 245.8 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6-8 |
| Engine Displacement(L) | 3.319 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 450 |
| Fuel Tank(L) | 137 |
| Hydraulic Tank(L) | 82 |
| Travel Speed(km/h) | 5.0 |
| Bucket Capacity(m³) | 0.33 |
| Bucket Digging Force(kN) | 57 |
| Boom Length(mm) | 3720 |
| Stick Length(mm) | 1622 |
| Maximum Excavation Radius(mm) | 6245 |
| Maximum Digging Height(mm) | 7120 |
| Maximum Digging Depth(mm) | 4070 |
| Specifications(mm) | 6215 × 2280 × 2690 |
| Operating Weight(kg&ton) | 7730 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1、 Efficient and energy-saving power system
Equipped with Yanmar 4TNV98-ZCSXG naturally aspirated engine, displacement 3.319L, rated power 44.8kW (2200r/min), with low-speed high torque characteristics (maximum torque 225.7-245.8N · m)
Direct injection technology+electronic speed regulation: Compared with mechanical speed regulation, the speed control is smoother, significantly reducing the phenomenon of "black smoke", lower fuel consumption, and good adaptability to oil products
Compliant with Euro III emission standards, equipped with high-precision fuel coarse filters with oil-water separators, with a filtration area 1.5 times that of models of the same tonnage
2、 Advanced and precise hydraulic system
The industry's first electronically controlled main pump (first application in products of the same tonnage) achieves perfect matching of load and power output, improving engine energy utilization efficiency
Load sensitive control system: low energy consumption, fast response, precise control, smooth action, reducing hydraulic shock
The maximum flow rate of the main pump is 176L/min, and the main overflow pressure is 28MPa, ensuring high-precision operation
3、 Reliable and durable structure
Strengthening working device: Key parts of the boom are locally strengthened, and the boom is molded with a "U-shaped plate" and welded together for a longer lifespan
X-frame chassis+large section box design, good load-bearing performance, reduces stress concentration on track beams; Standard international standard reinforced tracks for easy maintenance
The rotary platform adopts a "I-beam+D-shaped section" structure, which improves overall rigidity and reliability
4、 Outstanding homework efficiency
The bucket capacity is 0.33m ³, which is 10% higher than the C series products and improves the efficiency of earthwork operations
Maximum excavation depth of 4070mm, maximum unloading height of 5160mm, maximum excavation radius of 6245mm, suitable for various working conditions
Climbing ability reaches 35% (some data claim 70%, possibly due to different testing conditions), strong terrain adaptability
5、 Comfortable and safe operation
Brand new driver's cab: hidden design of rear pillar, with small blind spots; Equipped with high-power air conditioning as standard, the front window air outlet has defrosting function
Humanized configuration: equipped with ashtray, cup holder, storage box, folder, backup power socket, etc
The cab has passed ROPS/FOPS certification, ensuring high safety
6、 Intelligent control and convenient maintenance
E/P mode switching: Economy mode (low fuel consumption) and efficiency mode (high workload) can be selected as needed
Automatic idle function: Automatically decelerates when the handle is neutral, saving fuel and reducing noise
The design of centralized electrical box, grease gun bracket, oil discharge ball valve, toolbox, etc. greatly simplifies daily maintenance
Interested in used XCMG XE80D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
