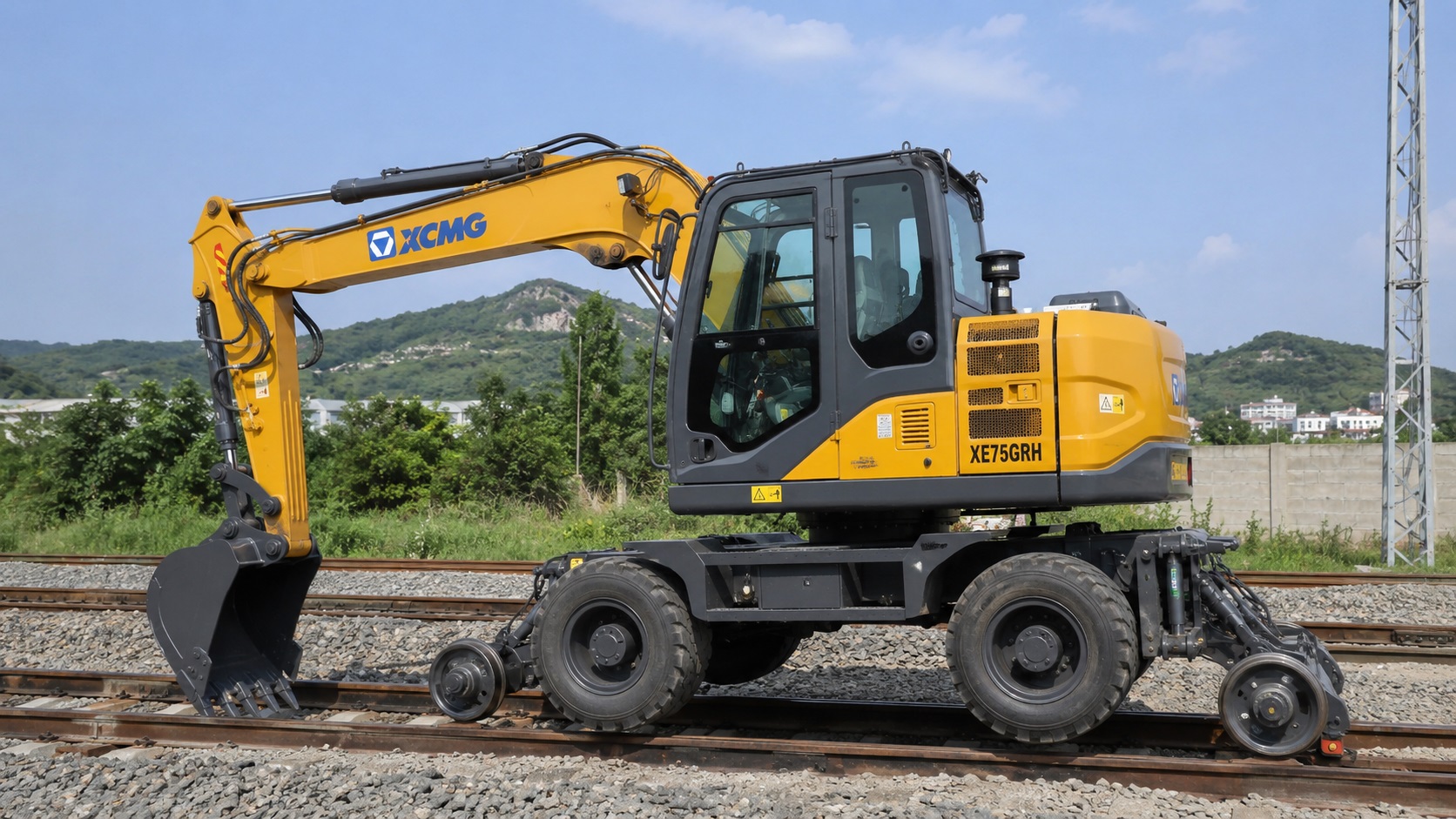

XCMG XE75GRH
Specifications & Parameters
| Engine Model | Weichai WP4.1N |
| Rated Power(kW) | 53.7 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 290 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 5.8‑6.5 |
| Engine Displacement(L) | 4.088 |
| Emisson | Tier 3 |
| Track width(mm) | 450 |
| Fuel Tank(L) | 160 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 15 |
| Bucket Capacity(m³) | 0.28 |
| Bucket Digging Force(kN) | 62 |
| Boom Length(mm) | 3850 |
| Stick Length(mm) | 1750 |
| Maximum Excavation Radius(mm) | 6750 |
| Maximum Digging Height(mm) | 6420 |
| Maximum Digging Depth(mm) | 4250 |
| Specifications(mm) | 7250×2480×2860 |
| Operating Weight(kg&ton) | 10800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Special dual‑purpose rail‑road excavator for railway maintenance, suitable for sleeper replacement, tamping, slope trimming and track‑side excavation work.
2. Weichai WP4.1N diesel engine outputs sufficient power reserve, stable operation under heavy‑load railway working conditions and reliable adaptability.
3. Equipped with professional railway walking device, maximum rail driving speed up to 15km/h; approach and departure angle ≥23°, fitted with electronic boundary and mechanical limit double‑protection system.
4. Insulated working device prevents electric‑shock risk; reinforced counterweight improves whole‑machine stability; optional emergency power system, remote emergency stop and 360‑degree surround‑view for safer operation.
