XCMG XE55D
Specifications & Parameters
| Engine Model | 4TNV94L-BVXG |
| Rated Power(kW) | 36.2 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 180 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 4.5-6 |
| Engine Displacement(L) | 3.053 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 450 |
| Fuel Tank(L) | 110 |
| Hydraulic Tank(L) | 77 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 0.2 |
| Bucket Digging Force(kN) | 48.3 |
| Boom Length(mm) | 3000 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6130 |
| Maximum Digging Height(mm) | 5630 |
| Maximum Digging Depth(mm) | 3830 |
| Specifications(mm) | 5860 × 1950 × 2585 |
| Operating Weight(kg&ton) | 5700 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Energy-saving and environmentally friendly
Equipped with a Yanmar eco-friendly engine, it delivers high low-speed torque, low fuel consumption, and high operational efficiency
Compliant with international certification standards such as CE and ISO9001:2000
Reliable and durable
The boom and stick have been re-optimized in design, with reinforced key components to enhance wear resistance and structural integrity
The cutting teeth are installed with transverse pins, effectively preventing the tooth sleeve from falling off and extending service life
The rotary platform adopts a box-type structure to enhance the overall machine rigidity and prevent tailstock deformation
Efficient work
Equipped with a high-displacement main pump, it delivers large flow rates and high pressure resistance, ensuring smooth operation and high excavation efficiency
Rated power: 36.2 kW / 2100 rpm; Total machine operating mass: 5700 kg; Bucket capacity: 0.2 m³
Maximum digging depth: 3830 mm; Maximum digging radius: 6130 mm; Maximum digging height: 5630 mm
Operation is comfortable and safe
The cab offers an open view with an even better rear visibility, featuring sliding windows for enhanced ventilation and communication
Equipped with a silicone oil damping system to reduce operational fatigue
Equipped with high-back floating seats and full-range adjustment functions to enhance driving and riding comfort
The cab has passed the TOPS safety certification and is equipped with high-strength tempered glass
Multi-function adaptation
The tooth can be adapted to various attachments, supports slope operations, increases rotational torque by 15%, and enhances load-bearing rotation capabilities.
Interested in used XCMG XE55D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

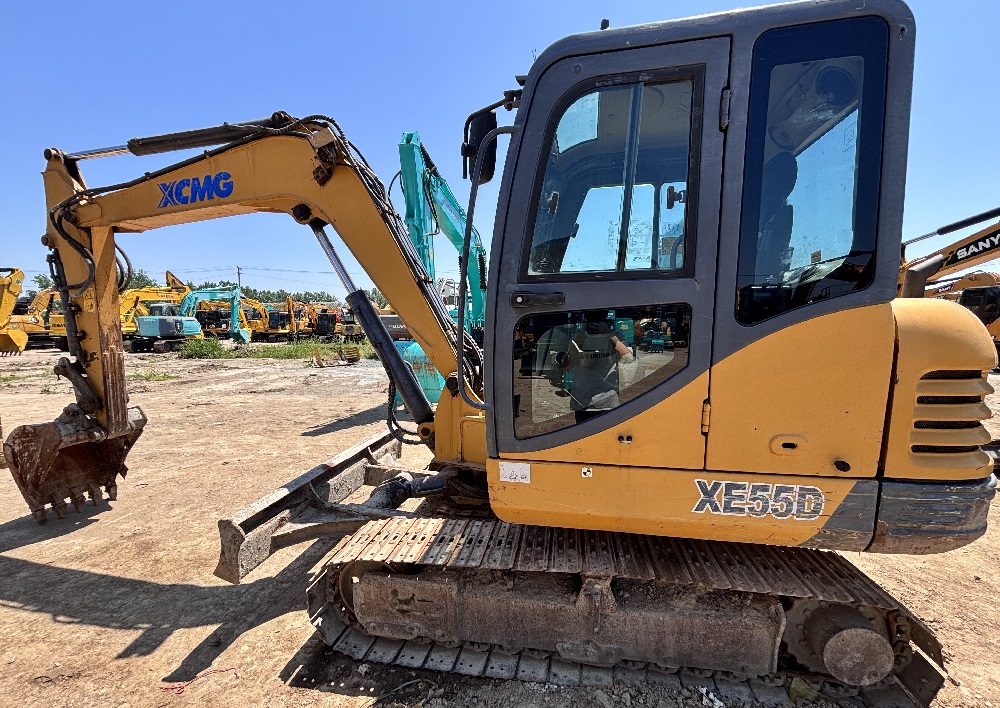

Photos
