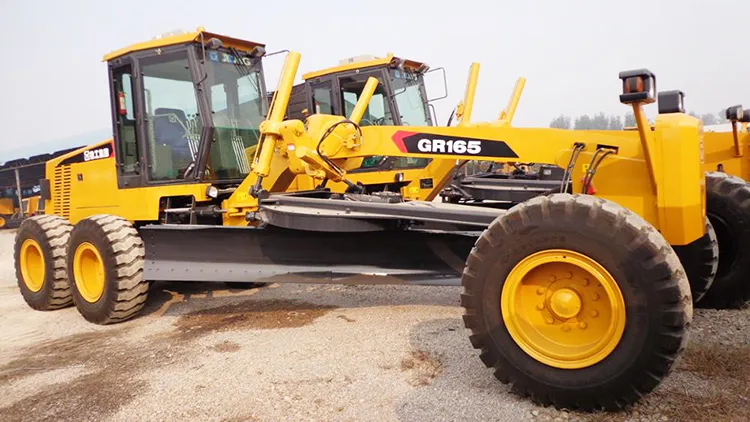

XCMG GR165
Parameters
| Engine Model | Shangchai D6114 |
| Rated Power(kW) | 125 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 600 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 13-16 |
| Engine Displacement(L) | 10.8 |
| Emisson | China III / Tier 3 |
| Fuel Tank(L) | 280 |
| Hydraulic Tank(L) | 96 |
| Travel Speed(km/h) | 38 |
| Operating Weight(kg&ton) | 15000 |
| Specifications(mm) | 8900x2625x3470 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Shovel length × height (mm) | 3965*610 |
| Shovel tilt angle (°) | 90 |
| Shovel rotation angle (°) | 360 |
| Horsepower (hp） | 150-180 |
| Minimum turning radius (m) | 7.3 |
| Maximum traction force (kN) | 77 |
| Maximum forward speed (km/h) | 5, 8, 11, 19, 23, 38 / Backwards 5, 11, 23 |
| Tire specification | 17.5-25 |
| Ground clearance (front axle) | 430mm |
| Tread | 2156mm |
| Space of front and rear axles | 6219 |
| Tractive effort f=0.75 | 77 |
| Maximum gradeability | 25% |
| Tire inflation pressure | 260kPa |
| Working system pressure | 16MPa |
| Transmission pressure | 1.3-1.8Mpa |
| Minimum turning radius | 7.3m |
Features
1. Strong power: Equipped with a high-power engine, it has high power output and torque, and can work efficiently in complex terrain conditions.
2. Easy to operate: Designed with ergonomics and equipped with a precise and flexible control system, the operation is simple and convenient, which can improve the accuracy and efficiency of the task.
3. High construction efficiency: With the ability to quickly level the road surface, it can efficiently complete flat operations and improve construction efficiency.
4. Stable and reliable: Adopting a stable chassis design, it has good stability and balance, and can maintain stability on uneven ground, reducing vibration and shaking during operation.
5. Convenient maintenance: Reasonable design, easy maintenance and upkeep, can reduce repair time and costs, and extend the service life of equipment.
6. Strong adaptability: adaptable to various terrains and working conditions, able to flexibly respond to different construction environments, with a wide range of applications.
7. Good safety performance: Various safety devices are used, such as emergency stop devices, anti-skid devices, etc., to ensure the safety of operators.
In summary, the XCMG GR165 grader has the advantages of strong power, convenient operation, high construction efficiency, stability and reliability, easy maintenance, strong adaptability, and good safety performance.
Interested in used XCMG GR165 grader? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
