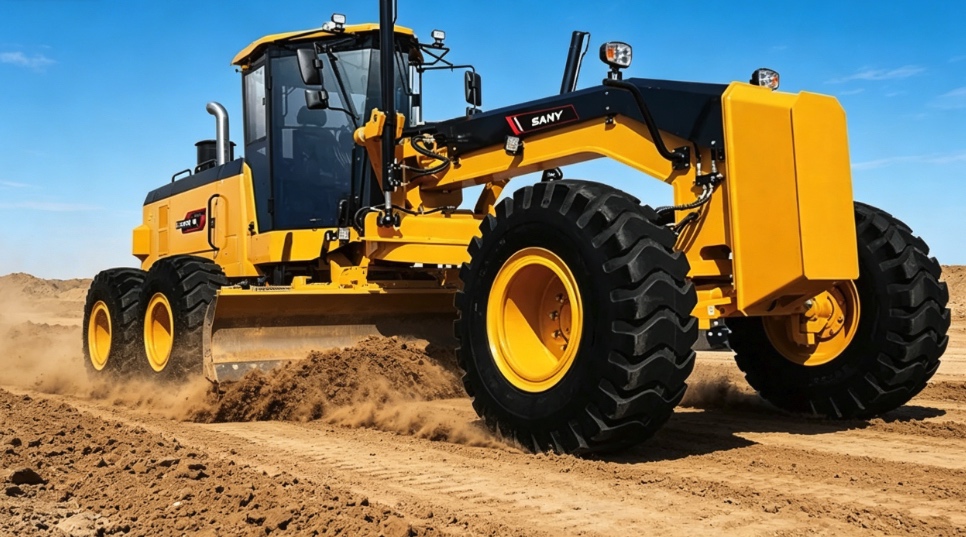

SANY STG265C-10
Parameters
| Engine Model | SANY Deutz D09S3T5A |
| Rated Power(kW) | 200 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1170 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 8.7 |
| Emisson | China IV / Tier 4 Final |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 42 |
| Operating Weight(kg&ton) | 19300 |
| Specifications(mm) | 9700×2860×3580 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Height of Blade | 610mm |
| Length of Blade | 4270 (14ft)mm |
| Max. Depth of Cut | 715mm |
| Max. Lift Above Ground | 515mm |
| Min. Turning Radius | 7.8±0.1m |
Features
Powerful Engine with High Efficiency
WEICHAI/SANY high-power and heavy-load engine is strong and powerful.
VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements of Rotary Bearing Structure
Work implements adopt a fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low cost, and service life longer than 10000h.
The rear axle adopts a rotary bearing structure instead of a conventional copper sleeve structure, which provides easy maintenance, high operation accuracy and service life longer than 10000h.
4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Easy and Convenient Maintenance
SYCD color LCD display show multi-parameter in multi-language .
Visual display of fault information, troubleshooting guide, and automatic prompts for regular maintenance.
Wide-opening door of the engine compartment, centralized arrangement of common electrical components, fuel tank located at the rear of frame all make the daily maintenance a convenient and quick thing.
Safe and Comfortable Ride & Operation Experience
ROPS/FOPS safe cab is equipped with a high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in the car).
It also has a horizontal sliding window, sun visors, curtains, radio, double rearview mirrors, and a mechanical suspension seat with headrest.
With LED lamps arranged at multiple positions, the operator has better vision at night.
Interested in used SANY STG265C-10 grader? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
