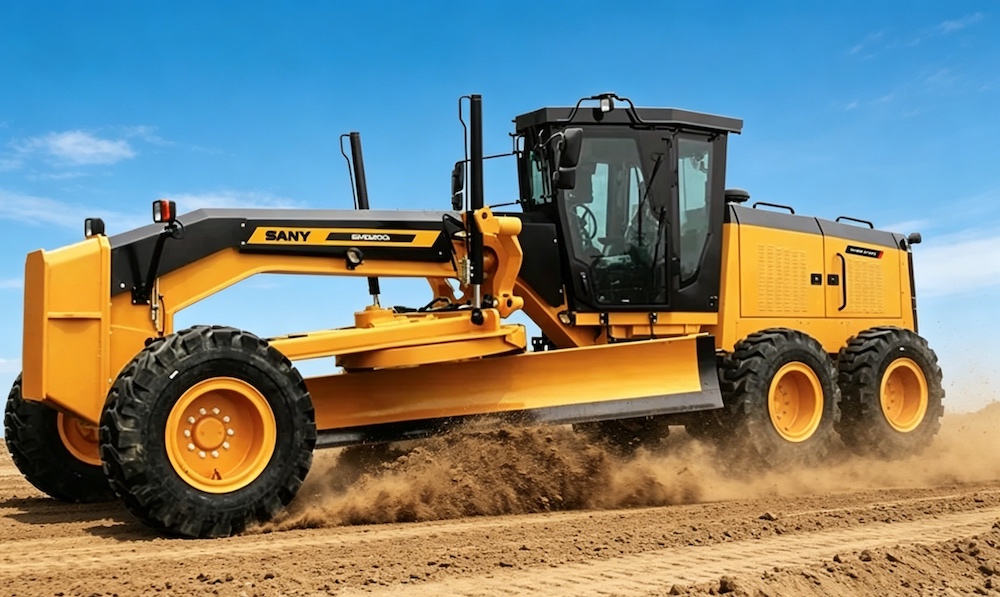

SANY SMG200
Parameters
| Engine Model | CUMMINS QSL9 |
| Rated Power(kW) | 186 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 1085 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-25 |
| Engine Displacement(L) | 8.9 |
| Emisson | Tier 4 Final / Stage IV |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 115 |
| Travel Speed(km/h) | 46.8 |
| Operating Weight(kg&ton) | 179600 |
| Specifications(mm) | 9187×2667×3498 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Height of Blade | 620mm |
| Length of Blade | 4270mm |
| Max. Depth of Cut | 715mm |
| Max. Lift Above Ground | 480mm |
| Min. Turning Radius | 7.5m |
Features
Engine with Variable Power Function
For SMG200, a Cummins QSC8.3 engine with a variable power function can automatically match different curves according to the actual load. Guarantee the best efficiency on other load conditions. (SMG200 only)
Direct Drive Transmission
Power shift transmission developed by the SANY international R&D team(members from China, America, and Japan) has eight forward and six reverse gears, and its efficient and responsive power performance can meet all kinds of heavy load conditions.
Hydraulic Control Differential Lock / Multi-disc Brake Drive Axle
Hydraulic control differential lock can provide enough traction in poor underfoot conditions.
Hydraulic control multi-disc brakes are applied on service and parking brakes, which have excellent brake performance and low maintenance frequency because of the sealed structure.
Circle Drive with Overload Protection
Circle drive with an overload protection function can prevent the machine from sudden impact when the moldboard encounters a massive obstacle during operation.
All-sealed Circle with Slewing Bearing Structure
A full-sealed slewing bearing structure can protect the circle from dirt and dust, achieving higher operation accuracy and 10000h service life than a traditional wear plate structure.
Load Sensing Hydraulic System
Load-sensing variable displacement pumps can adjust the displacement based on the cylinders' load to reduce power consumption.
A proportional priority pressure-compensating valve can achieve accurate and simultaneous multi-cylinder motion.
Excellent Operation Visibility
During operation, it is easy to see the moldboard, tires, and behind the machine.
Adjustable Suspension Seat
Adjustable mechanical suspension seat significantly reduces the vibration to the operator and improves comfort.
Hexahedron Cab
The Hexahedron cab structure provides an excellent view of blade operation. (SMG200C-8 only)
Hydraulic Electric Control Joysticks
Equipped with electro-hydraulic joysticks, which integrate the steering and operation function of the grader, joysticks and the steering wheel can independently steer to ensure driving safety. (SMG200C-8 only)
Serviceability
Large engine doors on both sides provide easy access for maintenance and service.
