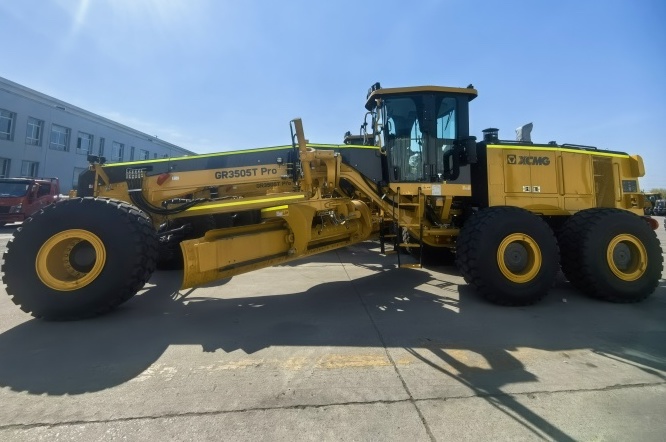

Used XCMG GR3505T Pro
Mining Grader
Parameters
| Engine Model | Cummins QSM11 |
| Rated Power(kW) | 261 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 1674 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 25-30 |
| Engine Displacement(L) | 10.8 |
| Emisson | EU Stage Ⅲ |
| Fuel Tank(L) | 550 |
| Hydraulic Tank(L) | 310 |
| Travel Speed(km/h) | 45 |
| Operating Weight(kg&ton) | 32000 |
| Specifications(mm) | 11320×3400×4100 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Traction force f=0.75(kN) | ≥160 |
| Maximum gradeability(%) | ≥30 |
| Minimum turning radius(m) | 9.6 |
| Blade Length x Height(mm) | 4877×686 |
Features
The GR3505T Pro motor grader is a constructionmachine used in open pit mines for haul road shaping and leveling operations.It is characterized bystrong power, efficient operation and comfortable and intelligent control performance.The machine is mainly used for heavy-duty soil and rock leveling in open pit mines, but also for snow removal, material paving and side trenching in open pit mines. The machine has sufficient power, reliable and durable, and high operation comfort, which is the ideal leveling equipment in the maintenance and repair of the road surface of open pit mine.
1、 Mining heavy load, powerful power
Specially designed for heavy-duty working conditions in open-pit mines, with sufficient power reserve and torque, it can easily and stably handle hard rock cutting, thick layer leveling, and steep slope operations.
The electronic fuel injection power system has fast power response, fuel economy, and can maintain efficient output even under high loads, making it suitable for continuous high-intensity operations in mines.
The overall structure is reinforced, with key components designed for high wear resistance, impact resistance, and fatigue resistance. It has a long lifespan and low failure rate in extreme mining environments.
2、 Strong hydraulic pressure, efficient operation
The high displacement load sensing hydraulic system has sufficient pressure, stable flow rate, and sensitive response. The lifting/rotating/lateral movement of the shovel blade is precise and smooth.
Hydraulic transmission belt locking clutch has high transmission efficiency, low power loss, reasonable matching of traction and operating speed, and significantly improves construction efficiency.
Optimized blade curvature, wear-resistant material, strong cutting force, high leveling accuracy, good one-time molding quality, and reduced repetitive operations.
3、 Intelligent and comfortable, easy to operate
Electric dual handle control simplifies operation and reduces labor intensity. Compared to traditional multi handle control, it is easier to operate and less prone to fatigue during long-term work.
Intelligent integrated monitoring and three-level fault alarm, real-time status visualization, rapid fault diagnosis, reducing downtime for troubleshooting.
Wide field of view, low vibration and low noise cab, comfortable driving and high safety, suitable for long shifts in mining operations.
4、 Safe and reliable, easy to maintain
Speed sensing steering+backup steering system, stable at high speeds, agile at low speeds, and controllable in case of steering failure, making mining complex road conditions safer.
Modular design+maintenance free rotary support, non interfering disassembly and assembly, no need to frequently adjust wear-resistant parts, significantly reducing maintenance time and costs.
Centralized lubrication, remote oil/water discharge on the ground, and parallel arrangement of filter elements make daily maintenance convenient, without the need to climb high, and improve maintenance efficiency.
5、 Suitable for working conditions, versatile and versatile
Specially designed for open-pit mines, this machine is versatile for heavy-duty leveling, road shaping, slope trimming, snow removal/material paving/side ditch excavation.
Strong traction, good climbing ability, strong adaptability to harsh terrain, meeting the high load and multi scenario operation needs of mines.
