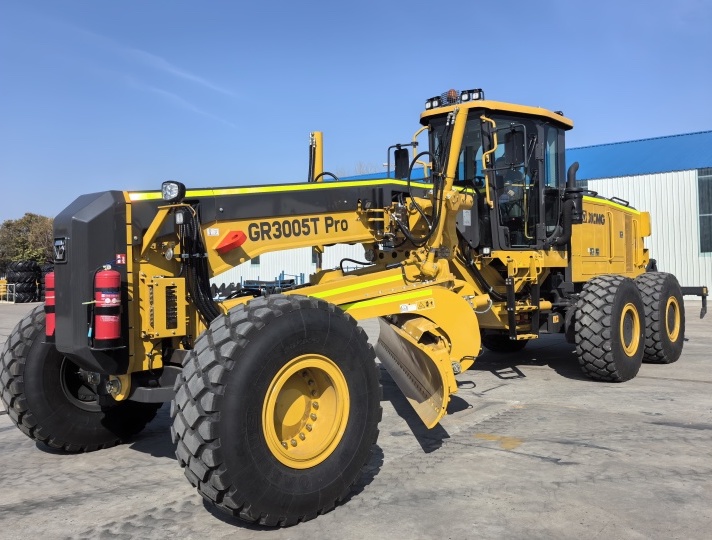

Used XCMG GR3005T Pro
Mining Grader
Parameters
| Engine Model | Cummins QSL8.9 |
| Rated Power(kW) | 242 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 1520 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 25-30 |
| Engine Displacement(L) | 8.9 |
| Emisson | EU Stage Ⅲ |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 210 |
| Travel Speed(km/h) | 40 |
| Operating Weight(kg&ton) | 28500 |
| Specifications(mm) | 11096x3270x3850 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Traction force f=0.75(kN) | ≥140 |
| Maximum gradeability(%) | ≥30 |
| Minimum turning radius(m) | 9 |
| Blade Length x Height(mm) | 4572x686 |
Features
As major machine for shaping and leveling operation in earthwork engineering, motor grader is widely used for large grading (such as road and airport) operation. With the constant expansion of its functions and development of its high-efficiency over the years, motor grader is applied to bulldozing and spreading of open-pit and roadbed mixture as well trimming of original landform. The mining working conditions are hard surface, wide working plane, the conventional motor grader is in light weight, the pressure under the blade is small, and the front wheel is floating during working. In addition, the blade is short and requires several back and forth to finish the road leveling; The serious working condition also puts forward higher requirements for the safety and comfort and intelligence of the machine. The function of the construction grader is no longer suitable for this condition.The power of GR3005T Pro is 331HP, the whole machine structural parts strength is high, strong power is specially designed for open pit mine, heavy load bulldozing and original landform finishing and other high load conditions.
