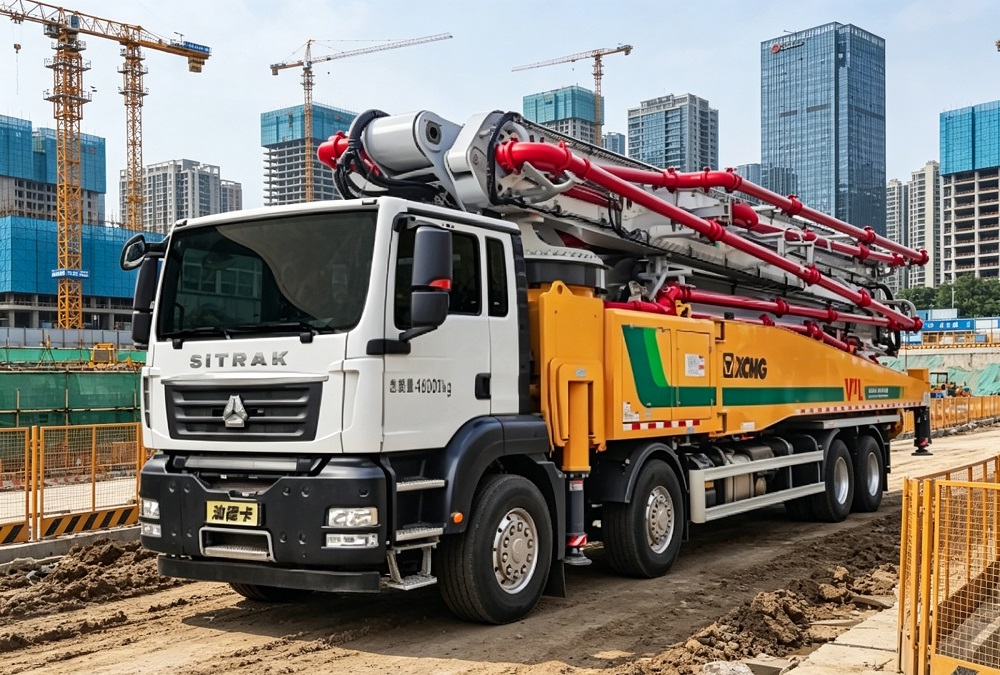

XCMG HB65V
Parameters
| Engine Model | MC13.50-61 |
| Rated Power(kW) | 370 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2300 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-24 |
| Engine Displacement(L) | 12.419 |
| Emisson | China VI |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 700 |
| Travel Speed(km/h) | 90 |
| Operating Weight(kg&ton) | 46000 |
| Specifications(mm) | 14192×2550×4000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2025 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Boom Vertical Reach / Horizontal Length | 64.2/56.8 |
| Theoretical Concrete Output (m³/h) | 180/125 |
| Pumping Pressure (MPa) | 8.3/13 |
| Boom Sections & Configuration | 6-section RZ folding boom design |
Features
Precision & Stability
Micro-control technology enables centimeter-level boom movement for high-precision concrete placement, validated by 6 years of 300,000+ m³ of practical use.
Energy-Efficient Performance
Schwing integrated main valve and swing valve technology reduce pressure loss, paired with adaptive working condition control to cut fuel consumption significantly.
High-Efficiency & Durability
Streamlined hopper design improves suction efficiency and reduces residual concrete. High-precision reversing system lowers impact forces and extends component service life.
Flexible Site Adaptability
Compact footprint and stable outriggers support single-side operation, making it ideal for tight urban construction sites.
Interested in used XCMG HB65V Concrete pump truck? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
