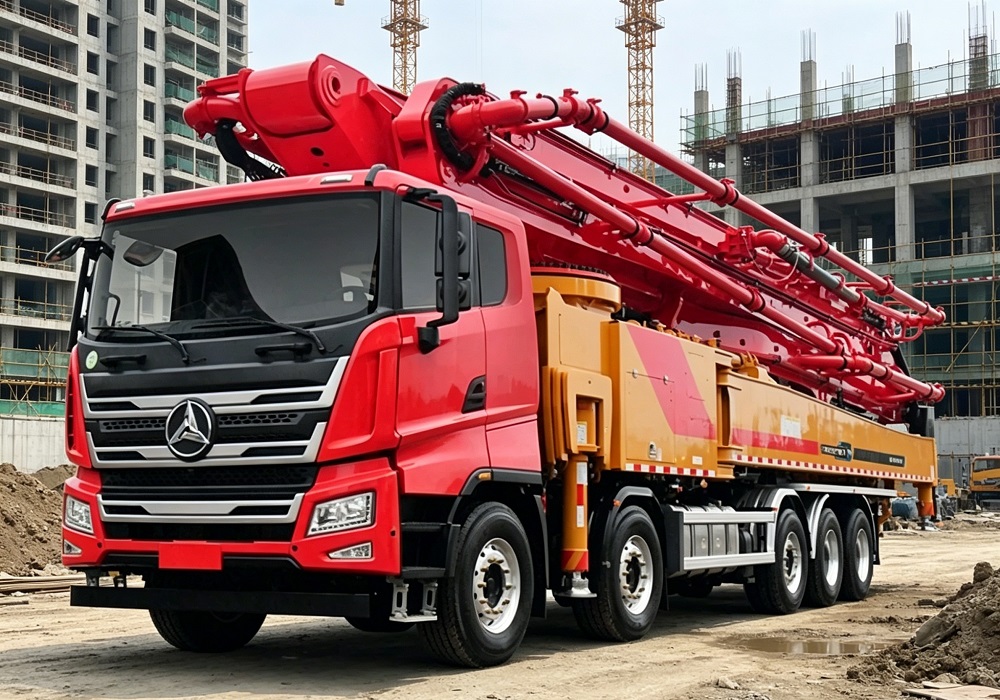

SANY SYM5552THB 710SC-MHEV
Parameters
| Engine Model | D13C6-530E3 |
| Rated Power(kW) | 390 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2600 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 22–30 |
| Engine Displacement(L) | 12.94 |
| Emisson | China VI |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 960 |
| Travel Speed(km/h) | 90 |
| Operating Weight(kg&ton) | 55000 |
| Specifications(mm) | 16090×2550×4000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2025 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Boom Vertical Reach / Horizontal Length | 70.2/61.5 |
| Theoretical Concrete Output (m³/h) | 180/125 |
| Pumping Pressure (MPa) | 8.3/13 |
| Boom Sections & Configuration | 7-section RZ folding design |
Features
Hybrid Efficiency
Advanced micro-hybrid system cuts fuel costs by up to 30%, with pure-electric idling and mixing for zero-emission waiting periods.
Ultra-Long Reach
70.2m vertical reach with a 7-section boom, designed for high-rise and large-scale infrastructure projects.
Heavy-Duty Pumping Performance
High-pressure pumping system delivers consistent flow with low wear, handling large volumes of concrete efficiently.
Stable & Reliable Operation
5-axle chassis and optimized boom design ensure superior stability even at full extension.
