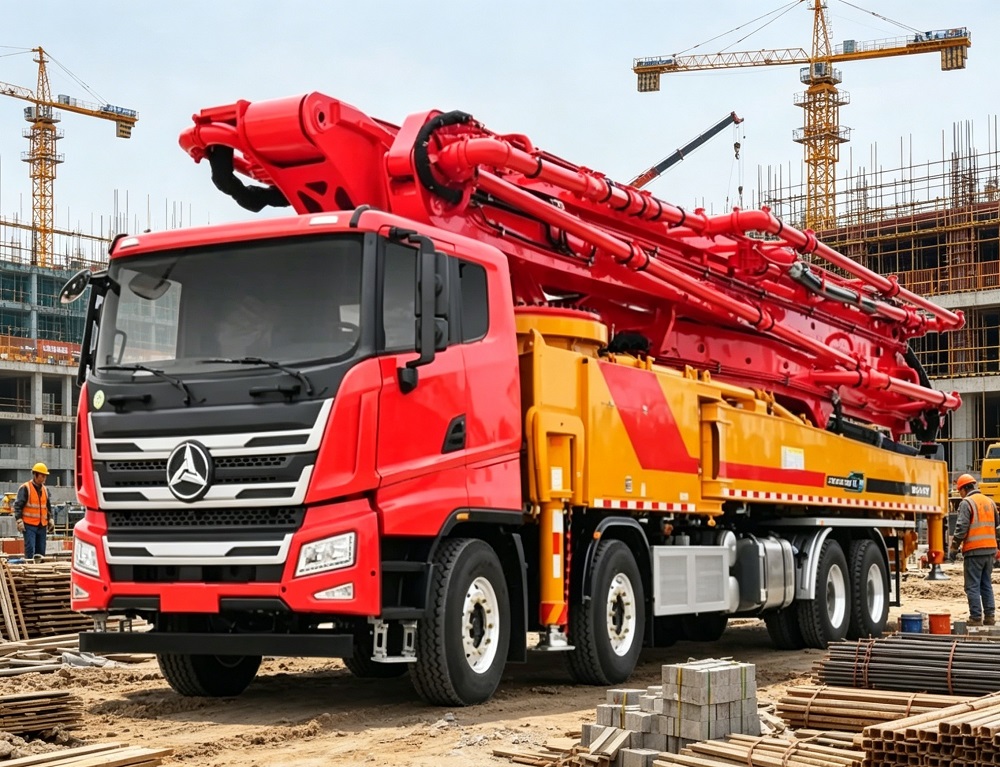

SANY SYM5465THBF 630SPM 63
Parameters
| Engine Model | Deutz D13C6-480E4 |
| Rated Power(kW) | 348 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2600 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 425-32 |
| Engine Displacement(L) | 12.9 |
| Emisson | China VI |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 450 |
| Travel Speed(km/h) | 90 |
| Operating Weight(kg&ton) | 46000 |
| Specifications(mm) | 14720×2550×4000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Boom Vertical Reach / Horizontal Length | 62.1 / 55.4 |
| Theoretical Concrete Output (m³/h) | 180 |
| Pumping Pressure (MPa) | 12 |
| Boom Sections & Configuration | 7-section RZ folding design |
Features
Advanced micro-hybrid system cuts fuel costs by up to 30%, with pure-electric idling for zero-emission waiting periods.
High-Reliability Pumping
High-efficiency pumping system with smooth concrete flow, less blockage, and consistent performance even in long-duration projects.
Versatile 7-Section Boom
62.1m vertical reach with flexible folding design, covering hard-to-reach areas with minimal site footprint.
Smart Operation
Auto-shifting hydraulic system and multi-mode power switching for easier operation and reduced maintenance needs.
