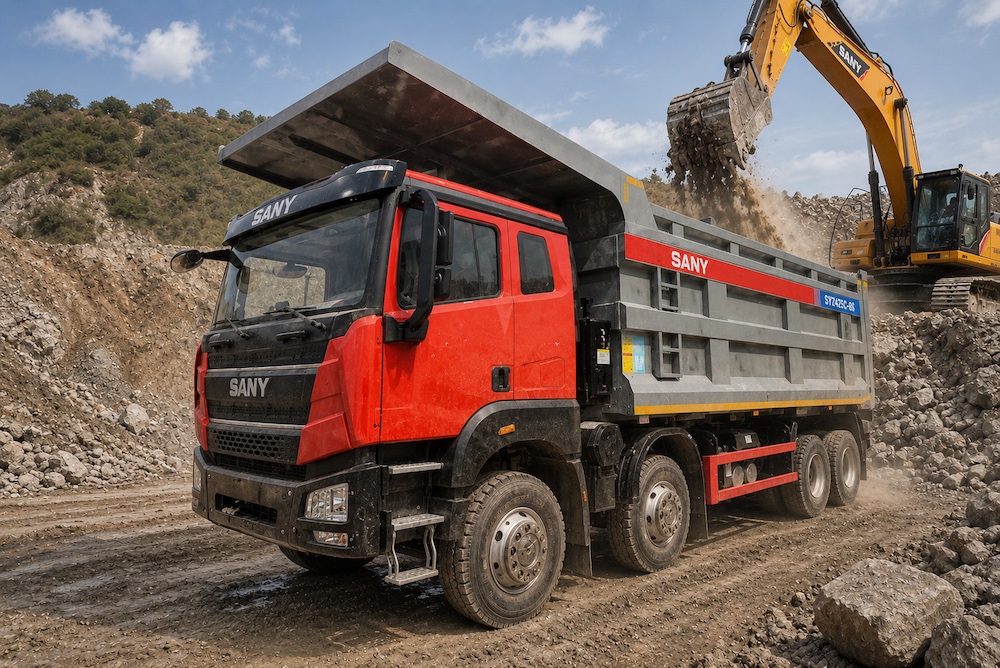

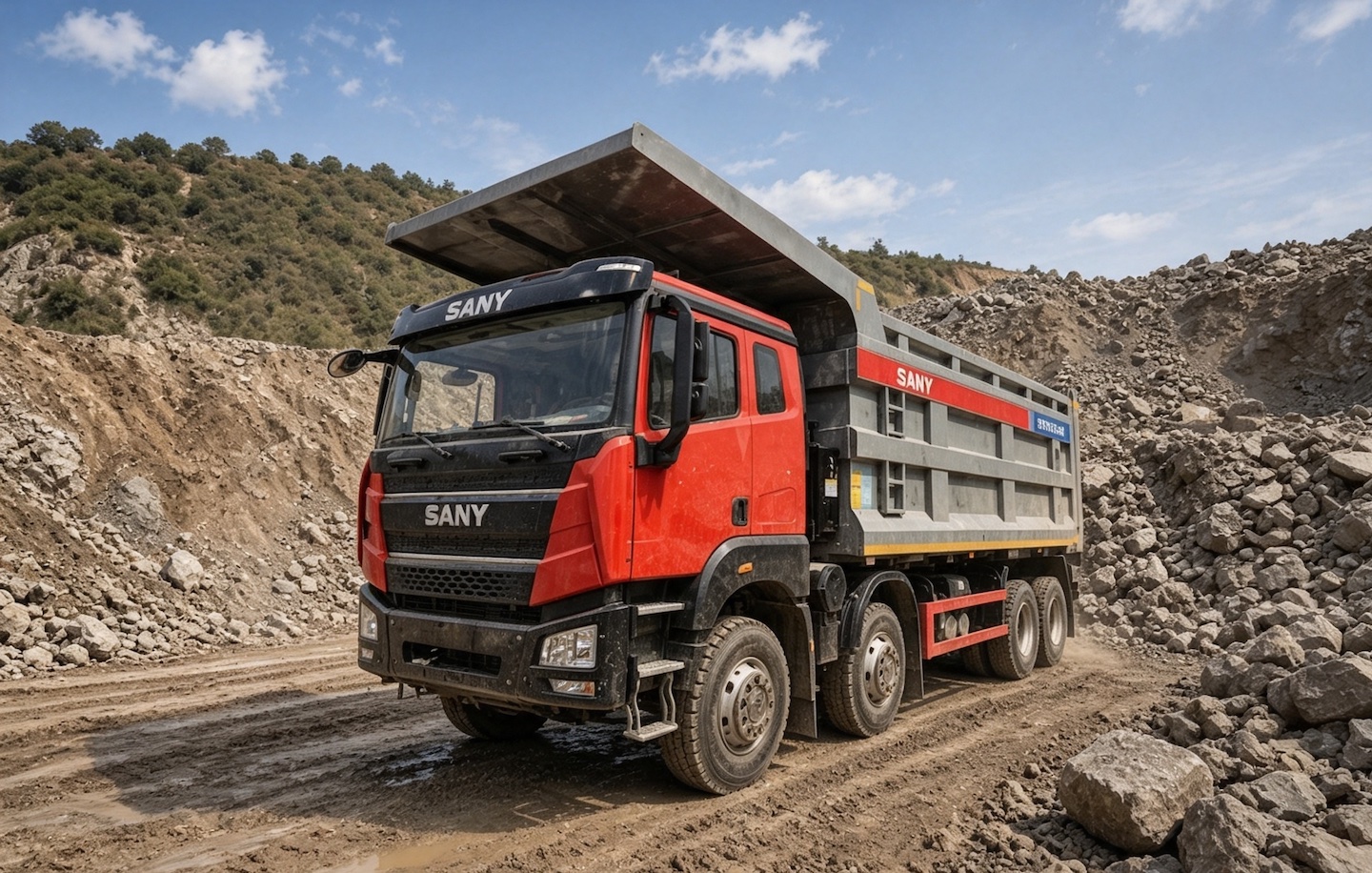

Used SANY SYZ425C-8S
Parameters
| Engine Model | Generator TZ460XS-LKM2401 |
| Rated Power(kW) | 480 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2800N·m |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 42 |
| Engine Displacement(L) | 12.12 |
| Emisson | China V / Euro V |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 250 |
| Travel Speed(km/h) | 85 |
| Operating Weight(kg&ton) | 42T |
| Specifications(mm) | 9340×2540×3665mm |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Motor |
Sany Power D12C5-462E1 |
|
Emission Standard |
Euro V |
| Gear-box | Fast 12JSDX240TB |
| Front Axle | 2×9.5T |
| Middle,Rear axle | 2×16T |
| Tyre | 315/80 R22.5 |
| Fuel Tank | 400L |
| Rated Power | 360kW |
| Rudder Direction | Left |
| Curb Weight | 42T |
| Full Load Weight | 55T |
| Dimension (L×W×H) | 9340×2540×3665mm |
| Wheel Base | 2000+2300+1400mm |
| Cargo capacity | 25m³ |
| Cargo empty | 6200×2300×1800mm |
Features
1. Range and energy consumption: The high power configuration gives it an advantage in intercity transportation. Official data shows that the power consumption per 100 kilometers can be as low as 140kWh. Combined with industry-leading energy recovery technology, it effectively improves the range economy.
2. Bearing capacity: The designed bearing capacity of the middle and rear axles is 13 tons, and the total traction mass of the vehicle exceeds 100 tons, which can meet the high-intensity operation requirements such as heavy load climbing.
3. Lightweight design: By using fewer leaf springs and optimizing the material selection of the frame and components, it has achieved an outstanding level of lightweight among similar products, which helps to improve payload and operational efficiency.
4. Cab configuration: Equipped with a high ceiling flat floor cab, providing spacious interior space. The driver's seat is an integrated airbag shock absorber seat, which enhances the comfort of long-distance driving. The car is equipped with a 12 inch multimedia screen, LED headlights, and a multifunctional steering wheel, enhancing its sense of technology and practicality.
