Home > Forklifts > CAT EC40N

Used CAT EC40N

used CAT EC40N — Used CAT EC40N For Sale

Request a Quote

Parameters

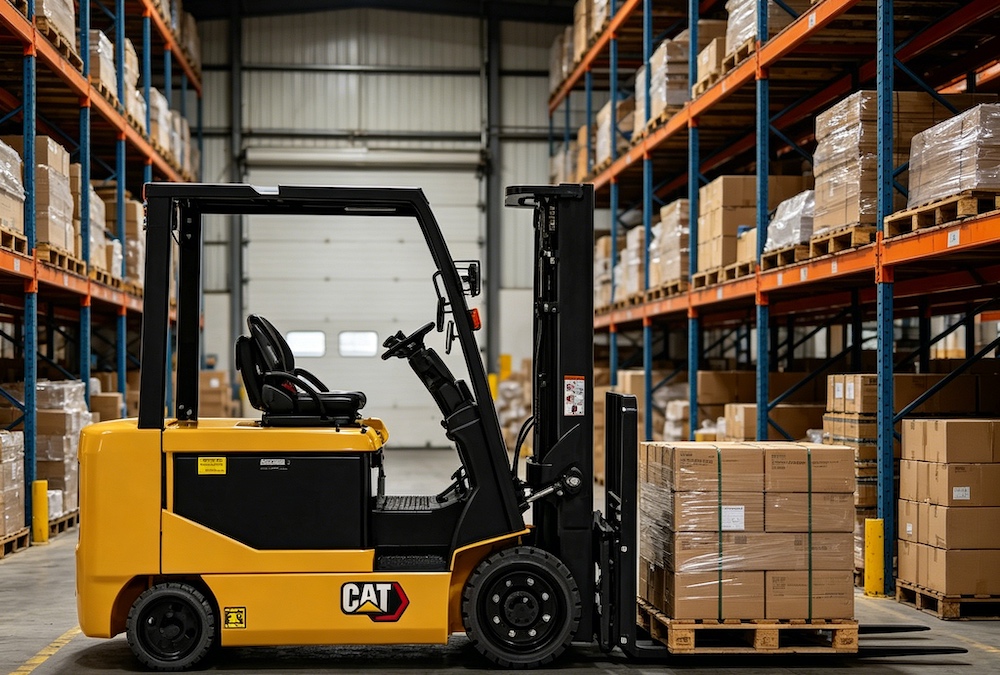

Caterpillar EC40N
Engine Model	AC Electric Motor 36/48V
Rated Power(kW)	/
Engine Revolutions(rpm)	/
Maximum Torque(N·m)	/
Inject Type	/
Fuel consumption(L/h)	/
Engine Displacement(L)	/
Emisson	/
Fuel Tank(L)	/
Hydraulic Tank(L)	/
Travel Speed(km/h)	14.5
Operating Weight(kg&ton)	5615
Specifications(mm)	2545×1100×2220
Size Class	Medium
Power Type	Electric
Walking Mode	Wheel
Country of Origin	China
Year of Production	2024
Condition	Used
Working Hours(h)	2000/5000/7000
Price($)	Check the latest price.

Rated Capacity	3500kg
Load Center	600mm
Turning Radius	2245mm
System Voltage	36V/48V
Battery Weight	1600 kg
Loaded Lift Speed	0.22 m/s
Lowering Speed	0.5 m/s
Battery Capacity	1400 Ah

Features

Productivity
Exceptional Run Times – Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.
Advanced drive system – no brushes or commutator
All AC hydraulic system
Enhanced electric power steering

Adaptable Performance Modes – Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.

Awareness
Operator Presence Detection System – This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.

Highly-Visible Orange Seat Belt – Helps to clearly see when the operators are wearing their seat belt.

Energy Efficiency
Regenerative Braking – Activated when the lift truck decelerates, changes directions, or service brakes are applied, this feature helps to return energy to the battery. The result is extended run times and extended service brake life.
Improves battery life
Reduces brake wear
Minimizes heat build up

Two-Stage Hydraulic System – Allows these cushion tire lift trucks to provide precise load handling, fast lift speeds and less energy consumption.

Ergonomics
Adjustable Full-Suspension Seat – The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible:
Front and back
Lumbar support
Suspension

Narrow Steering Column
Easy to operate
Tilt-adjustable
Full-hydrostatic steering
