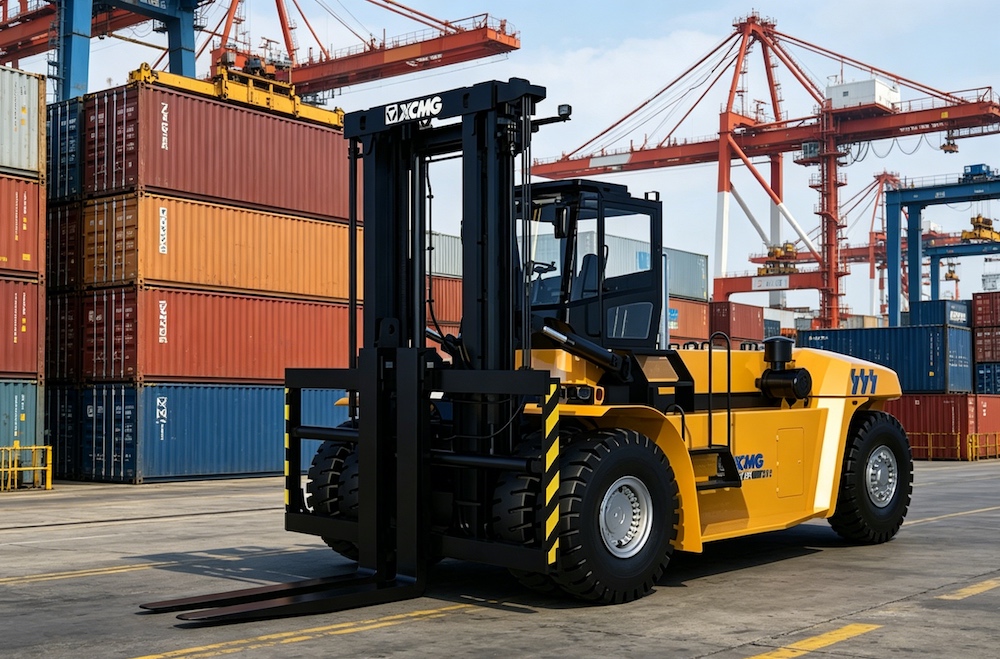

Used XCMG XCF4612K
Port counterbalanced forklift
Parameters
| Engine Model | Volvo TAD1151VE |
| Rated Power(kW) | 265 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 1785 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 10.84 |
| Emisson | Tier 3 / Stage IIIA |
| Fuel Tank(L) | 550 |
| Hydraulic Tank(L) | 350 |
| Travel Speed(km/h) | 28 |
| Operating Weight(kg&ton) | 58600 |
| Specifications(mm) | 7930×4130×4850 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Rated capacity | 46000kg |
| Maximum lifting height | 4000mm |
| Maximum travelling speed （unloaded\loaded） | 26/23 km/h |
| Maximum gradeability（loaded） | 0.25 |
| Wheel base | 5500mm |
| Load center | 1200mm |
| Minimum turning radius | 7500mm |
| Fork dimensions | 2440×300×145mm |
| Fork adjustment range | 1250-2850mm |
Features
Industry leading electronic control technology can achieve precise control of loads and improve work efficiency; Electronic micro motion function ensures more precise stacking operation of goods;
Fully enclosed driver's cab, shock-absorbing suspended seats, intelligent temperature control and high-power air conditioning, single handle operation mode, greatly reducing operational fatigue;
Automatically detect vehicle operating conditions, identify dynamic power requirements, actively adjust and control engine speed, ensure that the engine operates in the optimal operating area, and reduce system fuel consumption by 10%;
The structural design is sturdy and durable, suitable for loading and unloading heavy loads; The combination of precise weight matching technology and active electronic protection technology ensures high stability of forklifts;
Design a larger radiator and provide shock absorption protection for the radiator. Scientifically layout the cooling system for high-intensity operation in a 45 degree environment, with water temperature maintained at around 98 degrees Celsius.
Counter-balanced Forklift is Mainstream configuration.safe and reliable. comfortable operation. energy saving and high efficiency. convenient maintenance.Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment. It can also be used to handle steel coils, bulk materials, concrete, logs, 20 'containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations.
