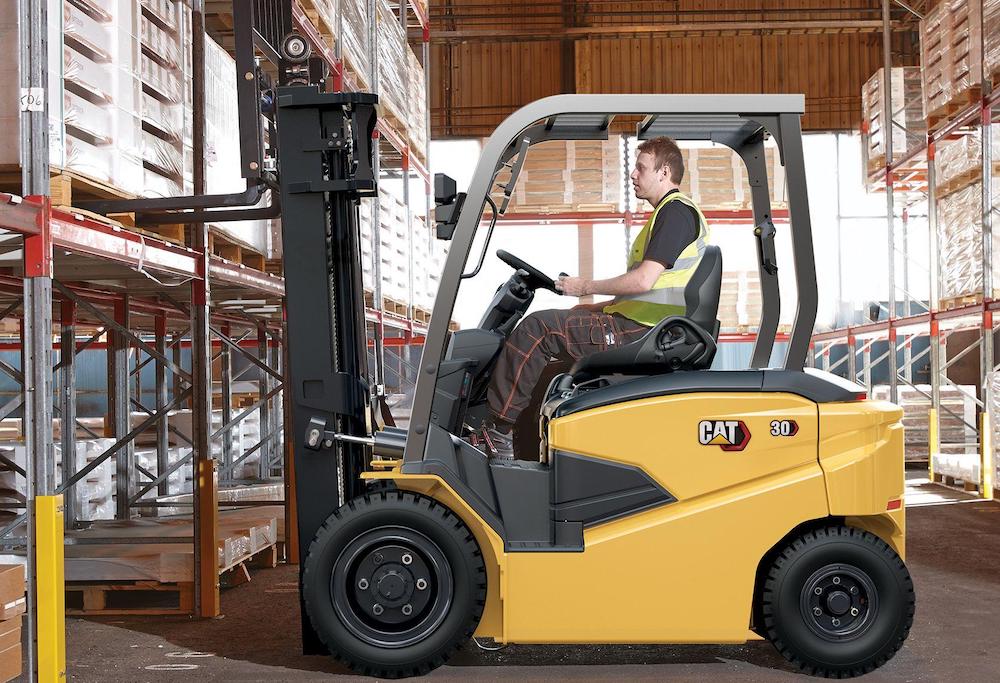

CAT EC30LN
Parameters
| Engine Model | AC Electric Motor 48V(16.5 kW Drive / 17.3 kW Lift) |
| Rated Power(kW) | / |
| Engine Revolutions(rpm) | / |
| Maximum Torque(N·m) | / |
| Inject Type | / |
| Fuel consumption(L/h) | / |
| Engine Displacement(L) | / |
| Emisson | / |
| Fuel Tank(L) | / |
| Hydraulic Tank(L) | / |
| Travel Speed(km/h) | 18.2 |
| Operating Weight(kg&ton) | 5012 |
| Specifications(mm) | 2256×1105×2235 |
| Size Class | Medium |
| Power Type | Electric |
| Walking Mode | Wheel |
| Country of Origin | America |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Rated Capacity | 2950kg |
| Load Center | 600mm |
| Turning Radius | 2020mm |
| System Voltage | 36V/48V |
| Battery Weight | 1410 kg |
| Loaded Lift Speed | 0.38 m/s |
| Lowering Speed | 0.5 m/s |
| Battery Capacity | 1140 Ah |
Features
Productivity
Exceptional Run Times – Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.
Advanced drive system – no brushes or commutator
All AC hydraulic system
Enhanced electric power steering
Adaptable Performance Modes – Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.
Awareness
Operator Presence Detection System – This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.
Highly-Visible Orange Seat Belt – Helps to clearly see when the operators are wearing their seat belt.
Energy Efficiency
Regenerative Braking – Activated when the lift truck decelerates, changes directions, or service brakes are applied, this feature helps to return energy to the battery. The result is extended run times and extended service brake life.
Improves battery life
Reduces brake wear
Minimizes heat build up
Two-Stage Hydraulic System – Allows these cushion tire lift trucks to provide precise load handling, fast lift speeds and less energy consumption.
Ergonomics
Adjustable Full-Suspension Grammer® Seat – The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible:
Front and back
Lumbar support
Suspension
Optional Fingertip Controls – Effortlessly control the hydraulic function, horn and direction (Forward/Neutral/Reverse) with the optional seat-mounted armrest.
Narrow Steering Column
Easy to operate
Tilt-adjustable
Full-hydrostatic steering
Options
Special Application Packages
Two drive-in rack options to better fit different applications
Freezer for intermittent use below 14 degrees Fahrenheit
Electronic Back-up “Smart” Alarm
Ideal option for freezer and cold applications
Alarm automatically adjusts its volume level to suit the environment
Productivity Options
Foot direction control
Steering wheel knob
Rear grab handles with horn button
More Efficiency, Less Maintenance
The Lithium-ion battery package provides the highest performance battery solution.
High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency
No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output
No more battery change outs, watering and degassing areas
Maximize truck productivity through opportunity charging that can be interrupted anytime
5-year battery warranty included
Interested in used CAT EC30LN Forklift? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
