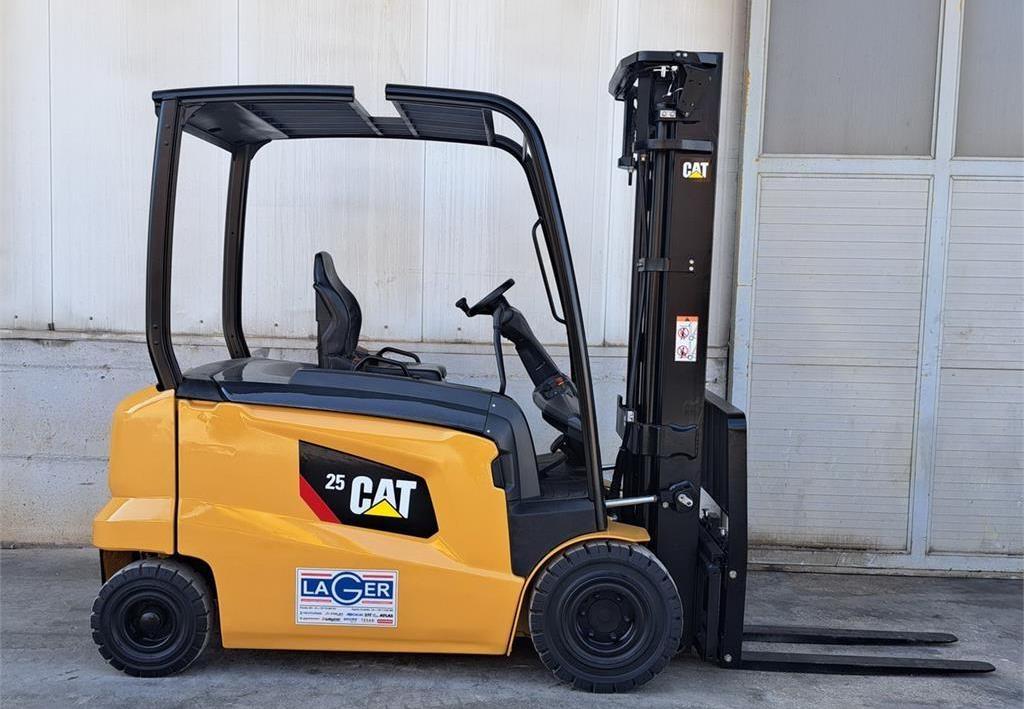

CAT EC25N
Parameters
| Engine Model | AC Electric Motor 48V(16.5 kW Drive / 17.3 kW Lift) |
| Rated Power(kW) | / |
| Engine Revolutions(rpm) | / |
| Maximum Torque(N·m) | / |
| Inject Type | / |
| Fuel consumption(L/h) | / |
| Engine Displacement(L) | / |
| Emisson | / |
| Fuel Tank(L) | / |
| Hydraulic Tank(L) | / |
| Travel Speed(km/h) | 18.2 |
| Operating Weight(kg&ton) | 4128 |
| Specifications(mm) | 2083×1054×2235 |
| Size Class | Medium |
| Power Type | Electric |
| Walking Mode | Wheel |
| Country of Origin | America |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Rated Capacity | 2500kg |
| Load Center | 500mm |
| Turning Radius | 1860mm |
| System Voltage | 36V/48V |
| Battery Weight | 1,180 kg |
| Loaded Lift Speed | 0.45 m/s |
| Lowering Speed | 0.5 m/s |
| Battery Capacity | 620 Ah |
Features
1. Efficient AC Drive System
Three-phase AC motor and hydraulic system
Fast response for acceleration, braking, and direction changes
Stable performance for demanding applications
2. Energy Efficiency & Long Runtime
Regenerative braking recovers energy during operation
Extends battery life for multi-shift use
Reduces brake wear and energy loss
3. Selectable Performance Modes
Modes for Performance, Efficiency, and Energy Saving
Adaptable to different working environments
4. Safety Features
Operator Presence Detection system
Audio and visual safety alerts
Improved visibility and operational safety
5. Ergonomic Design
Adjustable suspension seat with lumbar support
Optional fingertip controls on armrest
Compact layout reduces operator fatigue
6. Low Maintenance
Brushless AC motors reduce servicing needs
Sealed components for dust and water resistance
Longer service intervals and less downtime
7. Eco-Friendly Operation
Zero emissions during use
Lower operating cost than diesel forklifts
Quiet operation for indoor environments
8. Applications
Warehousing and logistics
Manufacturing industries
Food, chemical, and electronics sectors
Rental and multi-shift operations
Interested in used CAT EC25N Forklift? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
