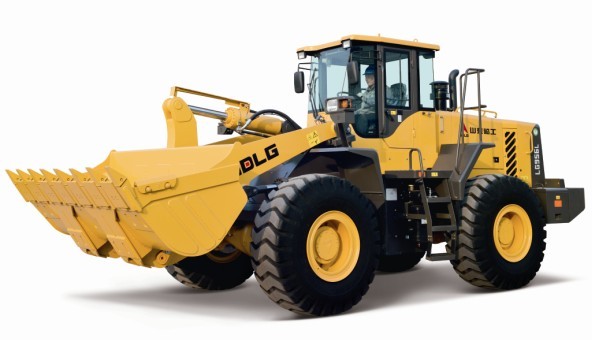

SDLG LG956L
Parameters
| Engine Model | Weichai WD10G220E23 |
| Rated Power(kW) | 162 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 840 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12-21 |
| Engine Displacement(L) | 9.726 |
| Emisson | Stage IIIA |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 240 |
| Travel Speed(km/h) | 36 |
| Operating Weight(kg&ton) | 5000 |
| Specifications(mm) | 8300x3024x3426 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Operating weight (kg) | 17250 |
| Bucket capacity(m³) | 3.0 |
| Rated load (kg) | 5000 |
| Length×Width×Height (mm) | 8300x3024x3426 |
| Engine Model | Weichai WD10G220E23 |
| Rated power (kW) | 162 |
| Max.tractive force (kN) | 165 |
| Max.breakout force (kN) | 170 |
| Gears | Forward 2 reverse 1 |
| Fuel tank capacity (L) | 300 |
Features
SDLG LG956L is a mining shovel loader suitable for loading and unloading harder materials. With a long wheelbase and high excavation force, it is tailor-made for mining and heavy load conditions and widely used in construction sites, sand and gravel factories, mining, urban construction and other occasions.
1. Equipped with energy-saving low-speed engines that meet the emission requirements of China II, perfectly matched with high-efficiency and high-capacity torque converters, it improves work efficiency, reduces energy consumption, and achieves comprehensive energy savings of over 10%.
2. The planetary power shift gearbox adopts mature technology from Lingong, with two gears in front and one gear behind, easy to operate, and long service life; Configure a reinforced drive axle for temporary work, with high load-bearing capacity and reliability.
3. The comprehensive application of LinGong NVH technology, three-level vibration reduction optimization design, new vibration reduction seats, and better vibration reduction performance have improved the comfort of driver operation.
4. Adopting a load sensing fully hydraulic steering system, the steering is lightweight, fast, energy-saving and reliable; The hydraulic system of the pilot operated working device is easy to operate and has high operational efficiency; The hydraulic pipeline adopts a double sealed structure with high reliability.
5. The new steel structure cab has a wide field of view, large operating space, full coverage of the cab interior, good sealing, standard air conditioning, and a comfortable driving environment.
6. The digital stepper dashboard independently developed by Lingong has high human-computer interaction; The whole machine adopts centralized control for electrical appliances, which is easy to detect and maintain, and the reliability of electrical components is high.
7. The front and rear frames have undergone finite element optimization design and passed 200000 fatigue strengthening tests, with high strength and long service life; Long wheelbase and increased weight design ensure good stability during walking operations.
8. The rock bucket is equipped with a high-strength wear-resistant main blade plate as standard, and the bottom and rear walls of the bucket are designed according to the excavation conditions. The bucket teeth are welded and fitted with small wear-resistant plates between the teeth, which is more suitable for mining operation conditions.
Interested in used SDLG LG956L Loader? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
