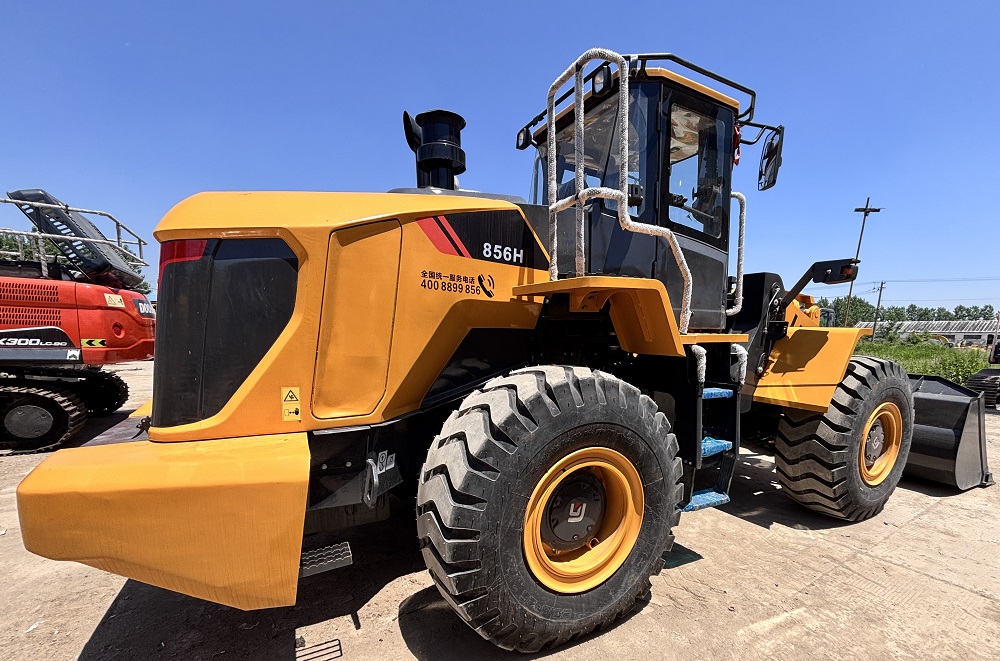

LiuGong 856H
Parameters
| Engine Model | Guangxi Cummins QSL9.3 |
| Rated Power(kW) | 168 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1187 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 15~18 |
| Engine Displacement(L) | 9.3 |
| Emisson | EU Stage V |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 210 |
| Travel Speed(km/h) | 37 |
| Operating Weight(kg&ton) | 17800 |
| Specifications(mm) | 8565×2750×3500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Bucket Capacity(m³) | 3 |
| Bucket Width(mm) | 2970 |
| Bucket Digging Force(kN) | 180 |
| Dump Clearance(mm) | 3480 |
Features
Core features and advantages
Strong power and efficient energy saving
Equipped with Cummins QSL9.3 or QSB6.7 electronic control engines (depending on the version), with a rated power of 170 kW, meeting the National IV/Euro IV emission standards, adopting high-pressure common rail, variable geometry turbocharging and other technologies, and excellent fuel economy.
The actual comprehensive fuel consumption is about 11 liters per hour, which shows outstanding fuel saving performance among similar models
Excellent homework performance
Rated load capacity of 5500-5800 kg, standard bucket capacity of 2.7-5.6 m ³ (some versions are 3.5 m ³)
The maximum excavation force reaches 180 kN, approaching the operational capacity of a 6-ton loader
Three items and action time of about 9.7 seconds, fast homework cycle, high efficiency
High reliability and durability
Adopting a reinforced frame, axle housing, and ZF transmission system, the load-bearing capacity is increased by 40%, and the average lifespan is extended by 250%
Stable operation under extreme working conditions such as high altitude (4500 meters), extreme cold (-40 ℃), high temperature, mines, ports, etc
There are cases showing that a single machine can run for over 38000 hours and still maintain efficient operations
Intelligence and Autonomous Driving Capability (856H MAX Version)
Equipped with LiuGong's independently developed "Smart Eye System" and "Intelligent Control System", it supports functions such as environmental perception, automatic obstacle avoidance, path planning, autonomous operation, remote diagnosis, and one click repair reporting
Unmanned operations can be achieved in scenarios such as port clearance and mining transportation, improving safety and efficiency
Comfortable and safe driving experience
Equipped with a panoramic micro turbocharged cab, the noise level is as low as 77 dBA (better than the national standard of 86 dBA)
Compliant with ISO3471 ROPS/FOPS safety standards, providing protection against rollover and falling objects
Pilot control, electric proportional FNR lever, automatic transmission to reduce operational fatigue
Convenient maintenance design
Forward leaning engine hood, ground maintenance point, single-layer radiator for easy daily inspection and maintenance
Maintenance cycle up to 500-1000 hours (depending on configuration)
Interested in used LiuGong 856H Loader? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
