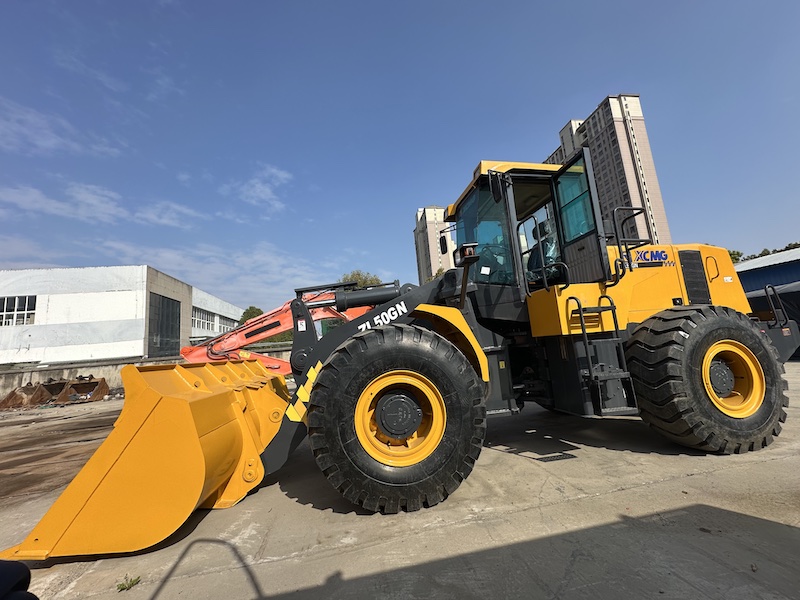

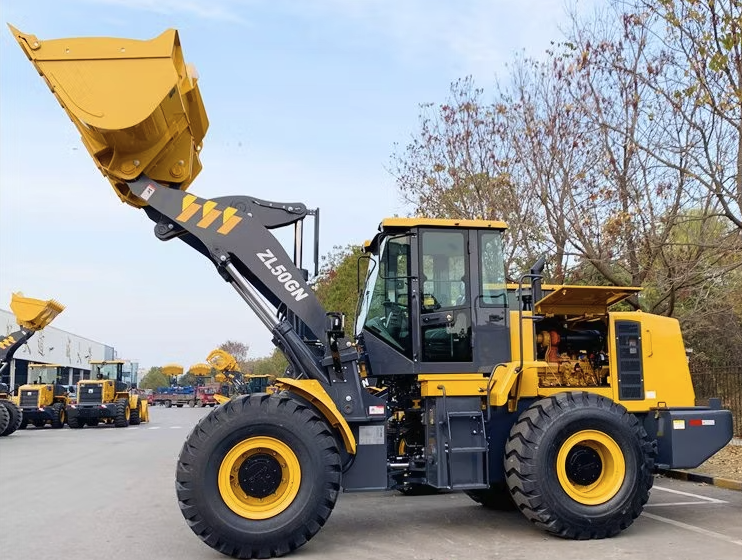

XCMG ZL50GN
Parameters
| Engine Model | WEICHAI WD10G220E341 |
| Rated Power(kW) | 162 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 843 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12-22 |
| Engine Displacement(L) | 9.726 |
| Emisson | China III/ Tier 3 / Stage IIIA |
| Fuel Tank(L) | 315 |
| Hydraulic Tank(L) | 250 |
| Travel Speed(km/h) | 41 |
| Operating Weight(kg&ton) | 17500kg |
| Specifications(mm) | 8225×3016×3515 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Rated Load | 6t |
| Transmission | Hydraulic |
| Load and Unload Mode | Front Discharge |
| Walking Mode | Wheeled |
| Type | Medium-sized Loader |
| Wheel Base | 3300mm |
| Machine Weight | 17500kg |
| Dump Clearance at Maximum Lift | 3100~3780mm |
| Rated Power | 162kw |
| Transport Package | Comply with Export Packaging Requirements |
| Specification | 8165*3016*3485 mm |
| Rated operating load | 5000kg |
| Bucket capacity | 2.5~4.5m³ |
| Machine weight | 17500±300kg |
| Dump clearance at maximum lift | 3100~3780mm |
| Reach at maximum lift | 1100~1220mm |
| Wheel base | 3300mm |
| Tread | 2250mm |
| Max.breakout force | 175±5kN |
| Max.horse power | 160±5kN |
| Hydraulic cycle time-raise | ≤6s |
| Total hydraulic cycle time | ≤10.5 |
| Min. turning radius over tyres | 5925±50mm |
| Articulation angle | 38 |
| Gradeability | 30 |
| Tyre size | 23.5-25-16PR |
| Overall machine dimension L×W×H | 8225*3016*3515mm |
| Model | WD10G220E21 |
| Rated Power | 162kW |
| Travel Speed | 13/17/41 |
Features
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
XCMG's exclusive high torque and high efficiency drive chain features reasonable matching. XCMG's characteristic super-heavy-load structure parts are free of redundant weight. With extended wheelbase, the working capacity and stability are leading the industry. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
