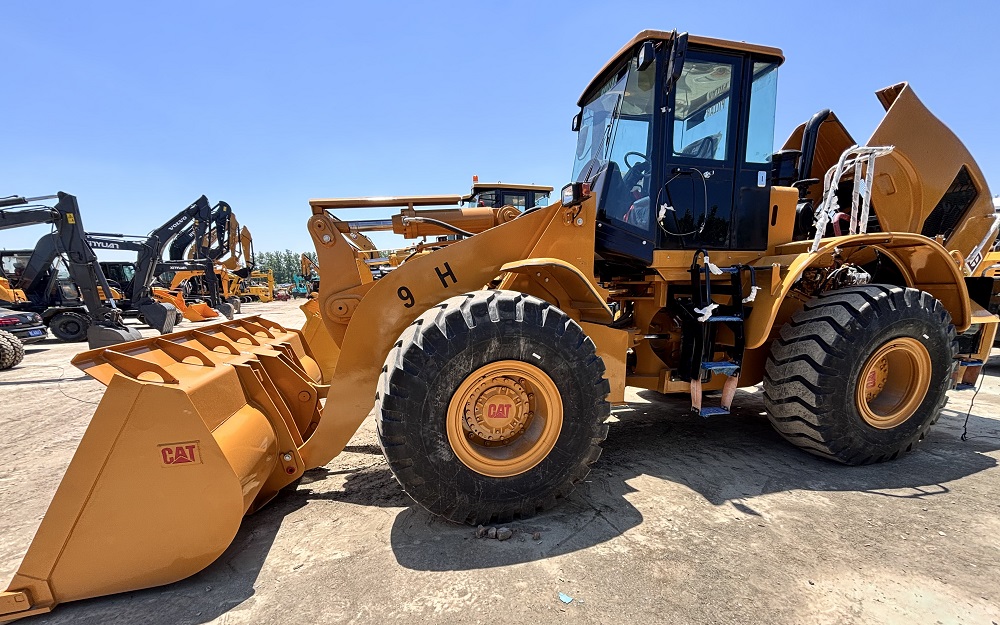

CAT 966H
Parameters
| Engine Model | Cat® C11 ACERT |
| Rated Power(kW) | 213 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1,299 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 21-26 |
| Engine Displacement(L) | 11.1 |
| Emisson | China Stage III |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 110 |
| Travel Speed(km/h) | 37.4 |
| Operating Weight(kg&ton) | 23698 |
| Specifications(mm) | 8340×3012×3552 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | America |
| Year of Production | 2013 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Bucket Capacity(m³) | 4.2 |
| Bucket Width(mm) | 3145 |
| Bucket Digging Force(kN) | 216 |
| Dump Clearance(mm) | 3005 |
Features
1. Power and Fuel Efficiency
Equipped with the Cat® C11 ACERT™ engine: displacement 11.1L, rated power 195 kW (approximately 261 hp), compliant with EPA Tier III / Euro III emission standards, delivering high performance while reducing emissions
Constant net horsepower output: Maintains stable power output even under maximum parasitic load, enhancing productivity
Load-sensing hydraulic system: Supplies only the hydraulic flow required by the tool, significantly reducing fuel consumption
On-demand variable-speed fan + EIMS idle management system: Optimizes cooling efficiency, reduces fuel consumption and noise
II. Structure and Durability
High-Strength Structural Design: Features a box-section engine frame + automatically welded four-panel tower, with a fixed front axle and a rear axle that can swing ±13°, enhancing stability on rugged terrain
Z-shaped link + high-performance bucket: Enhances material pile penetration, digging force, and rear tilt angle, reduces cycle time, and extends tire lifespan
Heavy-duty component design: Reduces early wear risks, extends overall machine lifespan, and minimizes downtime
III. Operational Comfort and Ergonomics
The C-500 series air suspension comfort seats offer an open and unobstructed view of the cabin, ensuring clear visibility both in front and behind
Fusion™ Quick Connector: Compatible with various attachments (such as side dump buckets, pallet forks, snow blowers, etc.), easy to install, and performs nearly as well as pin-type connectors
Optional driving control system: Enhances ride comfort on rough terrain and improves load retention capability
IV. Production Efficiency and Versatility
Bucket capacity: 3.4–4.2 m³ (maximum 4.2 m³), dumping height: 3005 mm (at 45° tilt angle)
Hydraulic system flow: 305 L/min (rated speed), standard cycle time for three actions approximately 9.9 seconds
Support for Multiple Work Tools: Rapid switching via Fusion Connectors to adapt to various working conditions
V. Maintenance and Service Support
Centralized Hydraulic/Electrical Maintenance Center, Facilitating Ground-Level Repairs
Integral tilt cover provides ample engine maintenance space
The Cat Global Agent Network supports preventive maintenance (e.g., S·O·S oil analysis), original manufacturer remanufactured parts (priced at 40%–70% of new parts), and operator training
