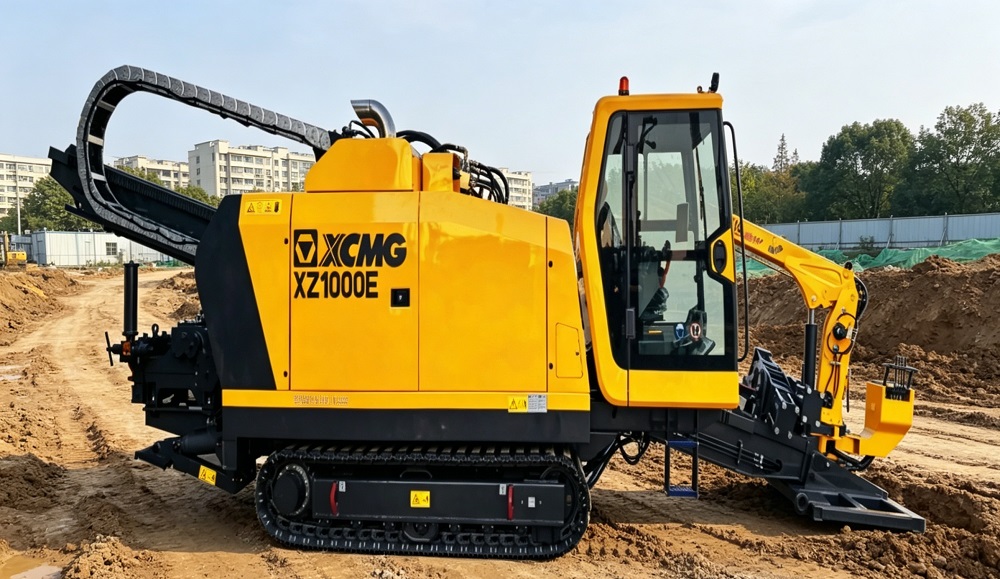

XCMG XZ1000E(Horizontal Directional Drilling Rig)

used XCMG XZ1000E(Horizontal Directional Drilling Rig)
Used XCMG XZ1000E(Horizontal Directional Drilling Rig) For Sale
Request a Quote

Parameters

Specifications & Parameters
Engine ModelWeichai WP10HG313E672
Rated Power(kW)230
Engine Revolutions(rpm)2200
Maximum Torque(N·m)1280
Inject TypeDirect Injection
Fuel consumption(L/h)13-16
Engine Displacement(L)9.726
EmissonStage V
Fuel Tank(L)380
Hydraulic Tank(L)620
Travel Speed(km/h)2.6
Operating Weight(kg&ton)20000
Specifications(mm)10780x2850x2770
Size ClassMedium
Power TypeDiesel
Walking ModeWheel
Country of OriginChina
Year of Production2023
ConditionUsed
Working Hours(h)2000/5000/7000
Price($)Get the Latest Price from sales via WhatsApp
Max.Reaming Diameter Φ1200mm
Drill Pipe Φ 114/127 (optional) x 6 m
Max.Mud Pressure 10 MPa

Features

Weichai Stage V engine, easy spare parts supply & low maintenance cost worldwide.
1000kN pull/push force, perfect for medium trenchless river-crossing & municipal pipeline.
Built-in drill pipe crane saves extra truck crane cost.
Heavy-duty crawler plus hydraulic anchor legs for stable work on rough ground.
Enclosed air-conditioned cab with integrated control system.
Load-sensing hydraulic system reduces fuel consumption effectively.
