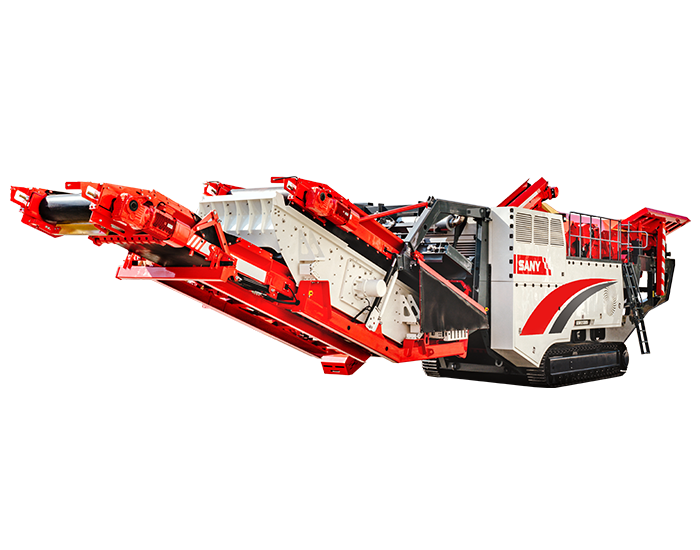

SANY SCIM1213RC6A (Mobile Impact Crusher)
Parameters
| Engine Model | Scania GB3-4JJ1X-73-2000 |
| Rated Power(kW) | 330 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2200 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 28-40 |
| Engine Displacement(L) | 12.94 |
| Emisson | China IV/ Euro V |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 250 |
| Travel Speed(km/h) | 1.0 |
| Operating Weight(kg&ton) | 67000 |
| Specifications(mm) | 21800×3400×3900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Crushing Strength | ＜150MPa |
| Max. Feeding Size | 600mm |
| Processing Capacity | 150-450t/h |
| Engine Power | 371/1800kW/rpm |
| Rated Power of the Whole Machine | 330kW |
| L x W x H | 21800x3400x3900mm |
| Transportation Weight of the Whole Machine | 67T |
| Operating Mode | 1-button touch screen operation |
Features
High Output
Intelligent feeding and independent pre-screening
Direct drive of crusher by engine
Double-chamber structure and high-precision heavy-duty rotor
Low Energy Consumption
Direct drive system
Separate setting of traveling/working power
Adaptive power-saving mode of the system
With an environmental-friendly spray and dust reduction system
High Reliability
Imported core components
Super wear-resistant parts
High-strength endurance test under full working conditions
Intelligent Control
Professional controller, touch screen control, one-click operation, and platform-based operation management.
Interested in used SANY SCIM1213RC6A (Mobile Impact Crusher) Other machines? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

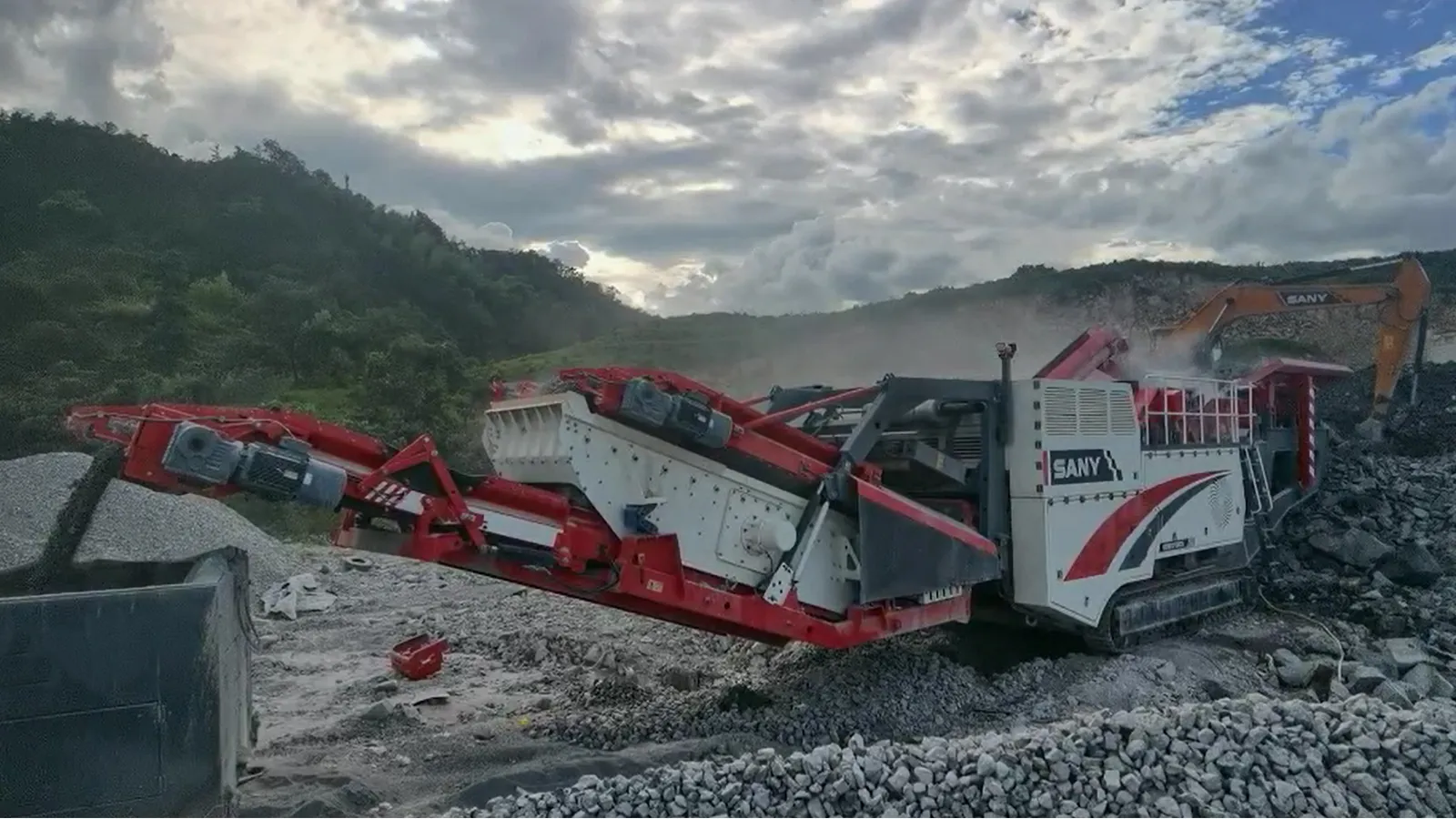

Photos
