Used John Deere 956R
Parameters
| Engine Model | John Deere PowerTech PSX |
| Rated Power(kW) | 417.6 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 2585 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 60–75 |
| Engine Displacement(L) | 13.5 |
| Emisson | Tier 4A |
| Fuel Tank(L) | 1325 |
| Hydraulic Tank(L) | 227 |
| Travel Speed(km/h) | 40 |
| Operating Weight(kg&ton) | 19690 |
| Specifications(mm) | 7163 × 3048 × 3683 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2012 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
1、 Strong power, durability, and fuel efficiency (core advantages)
560 horsepower/13.5L 6-cylinder PowerTech PSX engine, high torque of 2585N · m, does not stall or lose speed under heavy loads.
Tier 4A (iT4/Stage 3B) emissions, EGR without urea, simple structure, low failure rate, and cheap maintenance.
Reasonable fuel consumption: plowing at around 80L/h, heavy towing at around 110L/h, with high horsepower, it is fuel-efficient and durable.
2、 Gearbox+transmission: durable, easy to drive, high efficiency
E18 PowerShift full power shifting (18 front/6 rear), no need for clutch, smooth shifting, and non-stop work.
Articulated 4WD+electro-hydraulic differential lock, strong traction on rough terrain and slopes, and no slipping.
Wet disc brake+heavy-duty final drive, stable and long-lasting heavy-duty braking.
3、 Hydraulic+Suspension: Suitable for all heavy agricultural tools
High pressure and high flow hydraulic (2900psi/up to 78gpm), equipped with 4-6 sets of multi way valves, easy to operate with large plows, seeders, and rakers.
The rear suspension lifting force is 6940kg (optional 9072kg), and heavy agricultural tools can be pulled directly without tilting their heads.
5 types of heavy-duty traction rods, stable traction of heavy loads, and not easily damaged.
4、 The unique advantages of the track version (9560RT) include the desired movement speed and track width
Track width: Standard 914mm (36 ")/optional 762mm (30"), with a large grounding area, few sinking vehicles, and strong wetland passability.
Maximum speed: 35km/h, fast field transition, faster and more efficient than ordinary tracked machines.
Static water pressure differential steering, small radius turning, and flexible ground turning.
The track has low grounding pressure, protects the soil, and is suitable for deep plowing/heavy harrowing.
5、 Cab+Comfort: Long distance/long work without fatigue
CommandView II luxury driver's cabin, air conditioning, leather seats, 7-inch touchscreen, low noise, good visibility, and long hours of work without fatigue.
Front and rear HID headlights provide sufficient brightness and safety for night work.

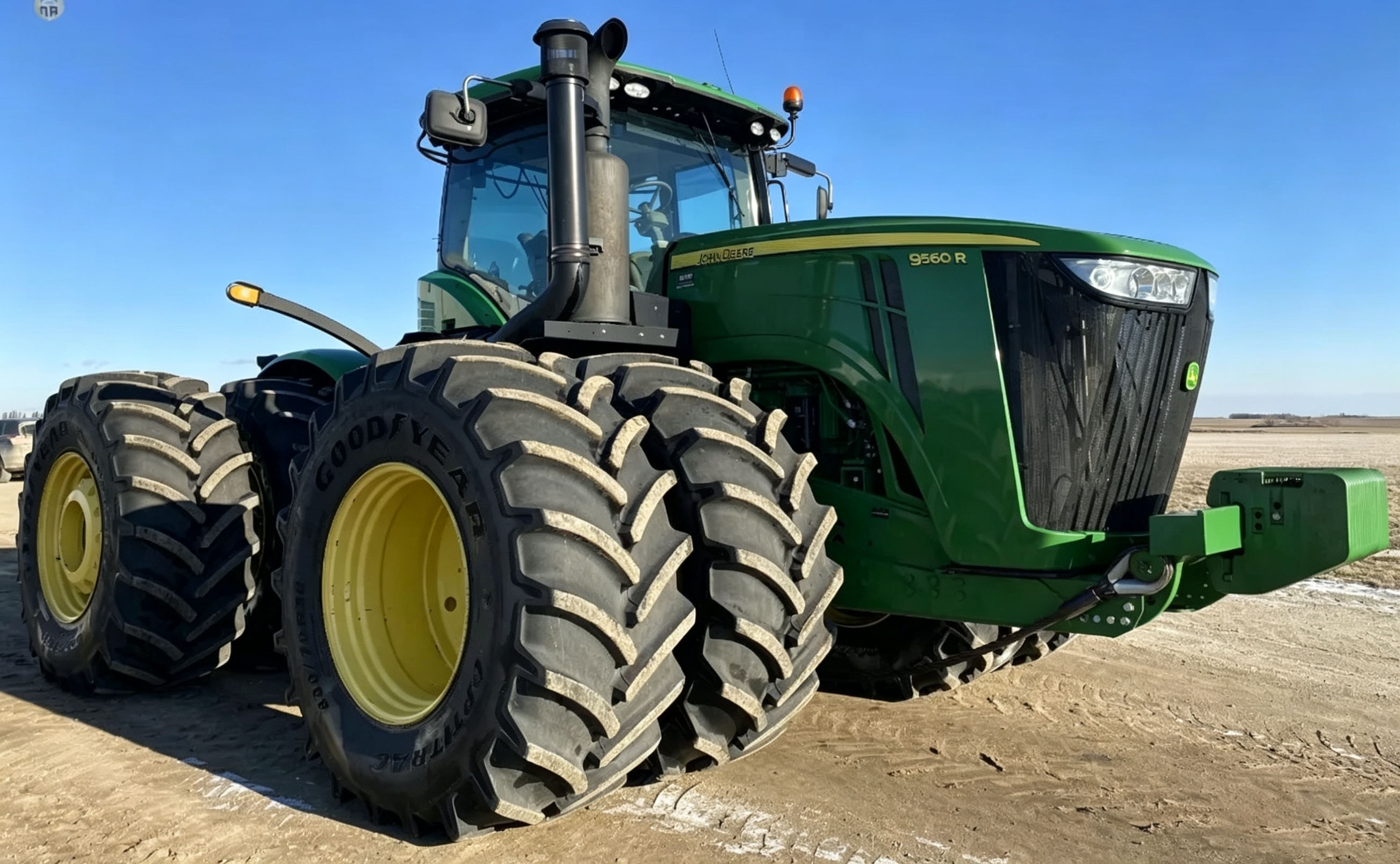

Photos
