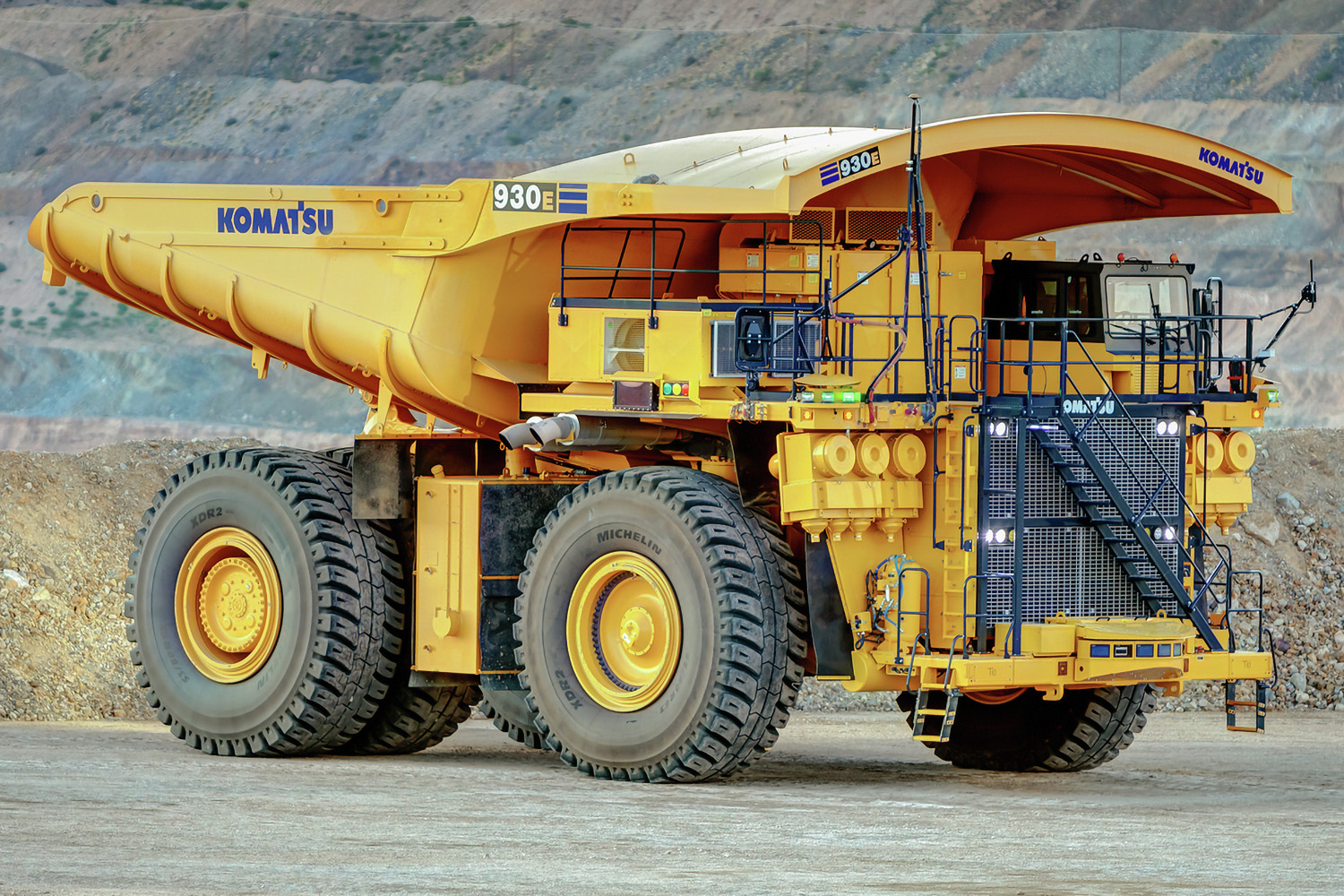

Used Komatsu 930E-5
Parameters
| Engine Model | Komatsu SSDA18V170 Diesel Engine |
| Rated Power(kW) | 2610 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 12000 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 280-360 |
| Engine Displacement(L) | 81.7 |
| Emisson | Tier 4 Final |
| Fuel Tank(L) | 4500 |
| Hydraulic Tank(L) | 1000 |
| Travel Speed(km/h) | 64.5 |
| Operating Weight(kg&ton) | 265000 |
| Specifications(mm) | 15000× 9100×7200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Drive System | Diesel-Electric Drive (Generator + Traction Motors) |
| Drive Type | 4×2 Electric Rear-Wheel Drive |
| Max Gradeability (Loaded) | 20% |
| Operating Weight | 521,640 kg |
| Heaped Capacity (SAE 2:1) | 202 m³ |
Features
Cost-effective heavy hauling: 290-ton (320 st) payload balances productivity and operating costs, ideal for mid-to-large scale open-pit mines.
Proven electric drive reliability: Mature diesel-electric powertrain reduces downtime and maintenance, maximizing machine uptime.
Powerful hill-climbing performance: Turbocharged engine delivers strong low-end torque for steady hauling on steep, loaded grades.
Extreme durability in harsh conditions: Reinforced frame and wear-resistant body built to withstand the toughest mining environments.
Superior maneuverability: Compact turning radius ensures efficient operation even in constrained mining layouts.
Advanced safety and monitoring: Integrated payload tracking, braking systems, and diagnostics for safer operation and lower risk.
