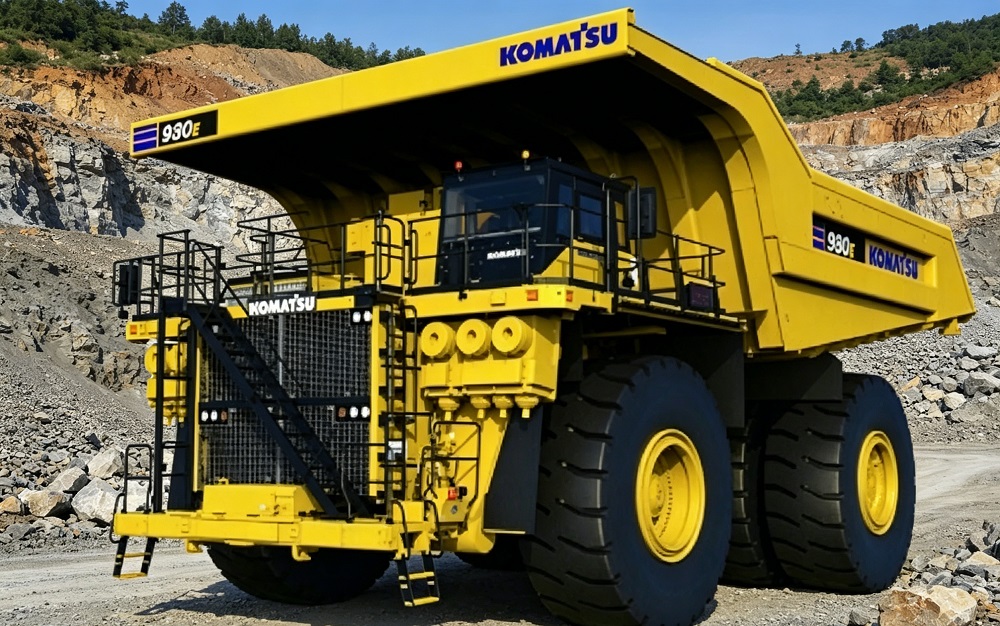

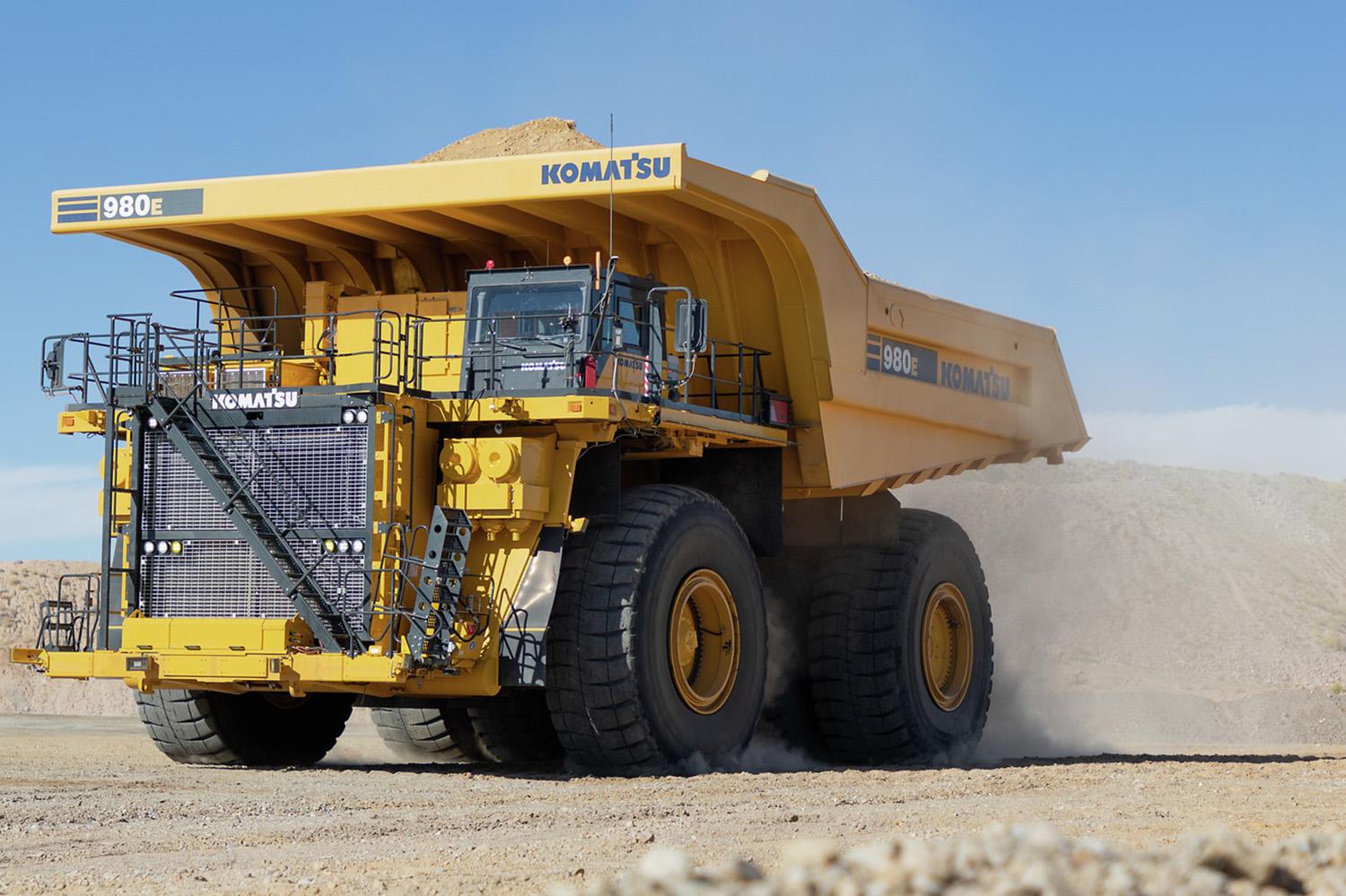

Komatsu 980E-5
Parameters
| Engine Model | Komatsu SDA16V160E-2 Diesel Engine |
| Rated Power(kW) | 3281 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 3500 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 320–400 |
| Engine Displacement(L) | 81.7 |
| Emisson | Tier 4 Final |
| Fuel Tank(L) | 5300 |
| Hydraulic Tank(L) | 1200 |
| Travel Speed(km/h) | 61 |
| Operating Weight(kg&ton) | 272000 |
| Specifications(mm) | 15600×9600×7700 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Heaped Capacity (SAE 2:1) | 202 m³ |
| Drive System | Diesel-Electric Drive (Generator + Traction Motors) |
| Drive Type | 4×2 Electric Rear-Wheel Drive |
| Standard Tire Size | 59/80R63 |
| Max Gradeability (Loaded) | 20% |
Features
Ultra-large 363-ton payload for maximum mining productivity
High-performance Komatsu diesel-electric drive system for reliable power
Robust heavy-duty frame and body built for harsh mining environments
Large 202 m³ body capacity reduces cycles and lowers cost per ton
Advanced monitoring systems maximize uptime and minimize maintenance
Optimized powertrain efficiency reduces fuel consumption in typical mining cycles
Interested in used Komatsu 980E-5 Mining trucks? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
