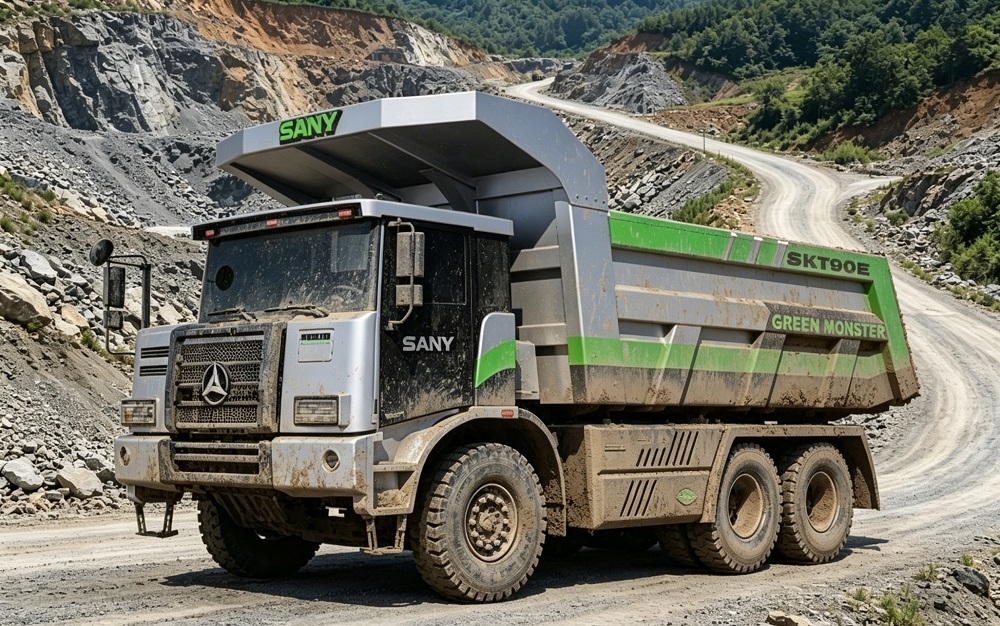

SANY SKT90E
Parameters
| Engine Model | LVKON CED21000 |
| Rated Power(kW) | 420 |
| Engine Revolutions(rpm) | 1500 |
| Maximum Torque(N·m) | 2300 |
| Inject Type | / |
| Fuel consumption(L/h) | / |
| Engine Displacement(L) | / |
| Emisson | / |
| Fuel Tank(L) | / |
| Hydraulic Tank(L) | / |
| Travel Speed(km/h) | 30 |
| Operating Weight(kg&ton) | 32000 |
| Specifications(mm) | 9000×3600×4100 |
| Size Class | Large |
| Power Type | Electric |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Range (Full Load) | 160 km |
| Gross Vehicle Weight | 92t |
| Body Volume | Heaped 31 m³ / Struck 26 m³ |
| Tire Size | 14.00R25×6 |
| Battery Capacity | 422 kWh |
| Max Gradeability | 35% |
Features
Zero-Emission All-Electric Power for Green Mines
Fully electric drive with no exhaust emissions and low noise, significantly reducing air and noise pollution in mining areas. It meets "green mine" construction requirements and is eligible for policy subsidies.
Fast Power Response & Strong Climbing Performance
550 kW peak power with peak torque available at low speeds, delivering 35% max gradeability. It excels in heavy starts and long uphill climbs, offering higher efficiency than comparable diesel trucks.
Low Operating Costs for Long-Term Savings
Electricity costs are about 1/3 of diesel costs, with no routine engine maintenance (oil, filters, etc.), significantly reducing cost per ton-km. The regenerative braking system further cuts energy consumption and improves range.
Triple Braking System for Safe Downhill Operation
Three-layer protection: electric braking, electric retarder, and drum brakes. Electric braking and retarders provide continuous braking force on downhill runs, reducing brake pad wear and avoiding thermal fade for safer operation.
Low Maintenance & High Reliability for Maximum Uptime
Simple structure with fewer wearing parts and long maintenance intervals. Built with a high-strength low-stress frame and hydro-pneumatic suspension for impact and fatigue resistance, key components last over 10 years with low failure rates.
Smart Connected Management for Efficient Fleet Operations
Integrated intelligent monitoring system provides real-time tracking of battery level, energy consumption, and fault status, supporting remote diagnostics and OTA updates. It is compatible with mine intelligent dispatching systems for refined fleet management.
