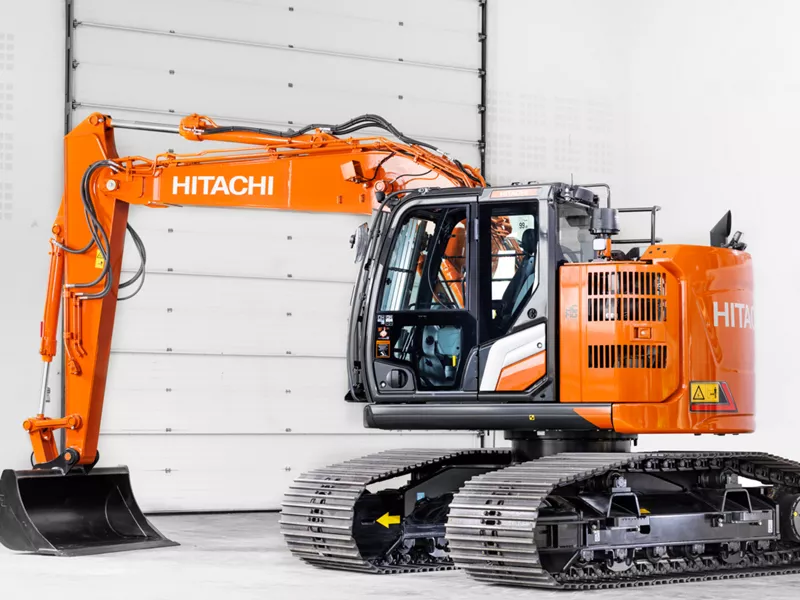

Hitachi ZX135USL-7
Parameters
| Engine Model | TOYOTA INDUSTRIES CORPORATION 1KDE |
| Rated Power(kW) | 74 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 375 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12-16 |
| Engine Displacement(L) | 2.999 |
| Emisson | EU Stage V / Tier 4 Final（DOC+CSF） |
| Fuel Tank(L) | 200 |
| Hydraulic Tank(L) | 60 |
| Travel Speed(km/h) | 4.6 |
| Operating Weight(kg&ton) | 16900 |
| Specifications(mm) | 7390×2490×3030 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Engine & hydraulic system
Engine Model:TOYOTA INDUSTRIES CORPORATION 1KDE
Engine emissions:EU Stage V
Engine Type:4-cycle water-cooled, common rail direct injection
Aspiration:Turbocharged, intercooled, cooled EGR
Aftertreatment:DOC and CSF system
No. of cylinders:4
Piston displacement:2.982 L
Pilot pump:1 gear pump
Maxium oil flow pilot pump:33.6 L/min
Weights and ground pressure
Shoe grouser type:triple
Shoe width:500 / 800 mm
Operating weight:15900 - 16900 kg
Ground pressure:31 - 51 kPa
Working ranges
Arm length:2.10 / 2.52 / 3.01 m
Max. digging reach:8 020 / 8 390 / 8 860 mm
Max. digging depth:4 850 / 5 270 / 5 760 mm
Max. dumping height:9 240 / 9 510 / 9 910 mm
Dimensions
Undercarriage length:3 790 mm
Overall width of upperstructure:2 480 mm
Overall height of cab:3 030 mm
Top Features
Engine Rated Power (kW):74 kW (ISO14396)
Operating weight (kg):15 900 - 16 900 kg
Max. digging reach (mm):8 020 / 8 390 / 8 860 mm
Features
Up to 10% reduced fuel consumption compared to previous models.
Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, TRIAS III.
Improved comfort in the cab with integrated console and seat suspension, lowest noise levels in the market and 20% less vibration than previous models.
Increased safety thanks to superior visibility and 270-degree bird’s-eye view from the cab.
With a durable undercarriage, it provides exceptional stability, higher ground clearance, smooth travelling performance over uneven terrain. The new ZX135USL-7 achieves a high level of performance in reliability, efficiency and productivity, enabling you to reduce running costs, along with an industry leading cab with first-class comfort and safety features.
The Hitachi ZX135USL-7 forestry excavator is ideal for a variety of applications such as logging, log felling, loading and digging. Thanks to its robust design, it offers enhanced durability, stability and safety for challenging working conditions.
Interested in used Hitachi ZX135USL-7 forestry machinery? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
