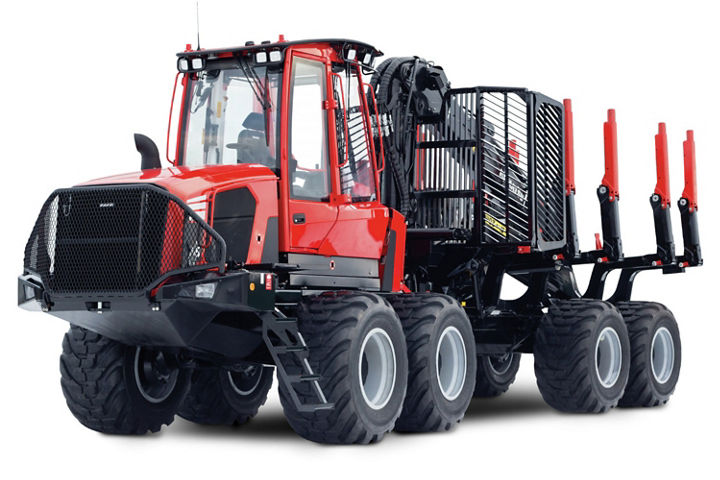

KOMATSU 875-1
Parameters
| Engine Model | AGCO Power, 6-cylinder |
| Rated Power(kW) | 190 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 1130 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 22–28 |
| Engine Displacement(L) | 7.4 |
| Emisson | EU Stage V / Tier 4F |
| Fuel Tank(L) | 220 |
| Hydraulic Tank(L) | 150 |
| Travel Speed(km/h) | 23 |
| Operating Weight(kg&ton) | 16000 |
| Specifications(mm) | 10360×2980×3990 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Driving speed (kph): | 0 - 23 |
| Tractive force (kN): | 214 |
| Type, Europe and North America: | AGCO Power, 6-cylinder diesel engine with turbo and intercooler. Tier 4 F. |
| Power, max.: (kW): | 190 kW DIN at 1 850 rpm |
| Torque (Nm): | 1 130 Nm @ 1 500 rpm |
| Fuel tank (L): | 220 |
| Stroke volume (L): | 7,4 |
| Flow (L/min): | 360 @ 2 000 rpm |
| Reach (m): | 8 m / 10 m - 8.5 m / 10 m |
| LIfting torque, gross (kNm): | 127 - 145 |
| Slewing torque, gross (kNm): | 28.7 - 38 |
| Rotator: | G121 ProTec and slewing dampened link |
| Grapple: | Komatsu G28/G36 |
| Approximate weight (kg): | 6WD: 17 800 kg; 8WD: 20 100 kg |
| Specification details: | The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice. |
| Gross load (kg): | 16 000 |
| Bunk area (m^2): | 4.5 - 6.4 m² |
| Width (mm): | With 710/45x26,5 tires: 2 980 mm |
| Length, total (with shortest rear frame)(mm): | 10 360 |
| Length, front axle to articulated joint (mm): | 1 900 |
| Length, articulated joint to rear axle (with shortest rear frame)(mm): | 3 480 |
| Transport height with hoses and tyre compression: | 130F: 3 880 mm; 145F: 3 930 mm |
| Ground clearance, at steering clearance: | 8WD: 710 mm |
| Note on dimensions: | Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment. |
| Voltage: | 24 V |
| Battery capacity: | 2 x 180 Ah |
Features
A class all its own.
You'll be hard-pressed to find a forwarder with more features shaped by everyday loggers. With a 16-metric-ton capacity, the 875-1 is well-positioned to meet your needs. Hydraulic retarder overspeed protection ensures the driveline won't run too fast.Choose the right machine for the job with four load-capacity options
Drive high productivity with powerful cranes and rugged FlexBunks
Tackle the roughest terrain with powerful hydrostatic transmission and high ground clearance.
Efficient loading
Match the machine to the job with a variety of load capacities — 12, 14, 16 or 20 metric tons — and several frame-length options. Designed for smooth and precise operation. Rugged cranes have a long reach and excellent lifting and slewing torque.
Smooth, fast transport
Maneuver with confidence in the most rugged forests, even when fully loaded. Chassis and suspensions are designed for performance under demanding conditions. Komatsu Comfort Bogie axles with a high portal offset and V-shaped frames provide some of the highest ground clearance in the industry.
Operator comfort
Operator comfort is key to your productivity. Spacious and open, our cab provides fantastic visibility, ergonomic controls and a seat that delivers all-day comfort. Optional Comfort Ride suspension provides added comfort and capabilities.
Powerful yet efficient
Maximize performance with high power and torque while driving efficiency with a fuel-efficient engine. A sophisticated control system automatically adapts to changes in engine load.
Technology-driven traction
Get exceptional tractive force thanks to an intelligent hydrostatic transmission system that considers machine load, terrain conditions, power and torque output. Hydraulic retarder overspeed protection on the 875-1 and 895-2 models ensures the driveline won't run too fast.
Customize your controls
Give operators the benefit of machine controls they can fine-tune for sensitivity and speed or smoothness and accuracy – whatever the job demands. Our state-of-the-art MaxiXplorer/MaxiXT system monitors and controls everything from engine and crane to the transmission and service ladders.
Easy to maintain
Less time servicing means more time forwarding. Maintenance is quickly and easily completed with a service-friendly design featuring an electronically powered tilting hood. All filters are located together for easy access under the hood.
Overcome climbing obstacles
When you need to do ground or stump leveling on tough terrain, an optional heavy-duty stacking blade is available. Mounted with a high angle of departure for climbing obstacles, there’s no interference between blade, battery boxes or hood guard.
Options for added benefit
Multiple options are available to enhance your productivity and comfort, including bunk wideners, rear- and front-view video cameras, computer touchscreen and electric fuel fill pump.
Cold weather starting
Don’t lose valuable time when the temperatures drop. A standard diesel heater system heats the engine coolant, hydraulic oil and the batteries to facilitate cold-weather starting on the 845-1, 855-3, 875-1 and 895-2.
