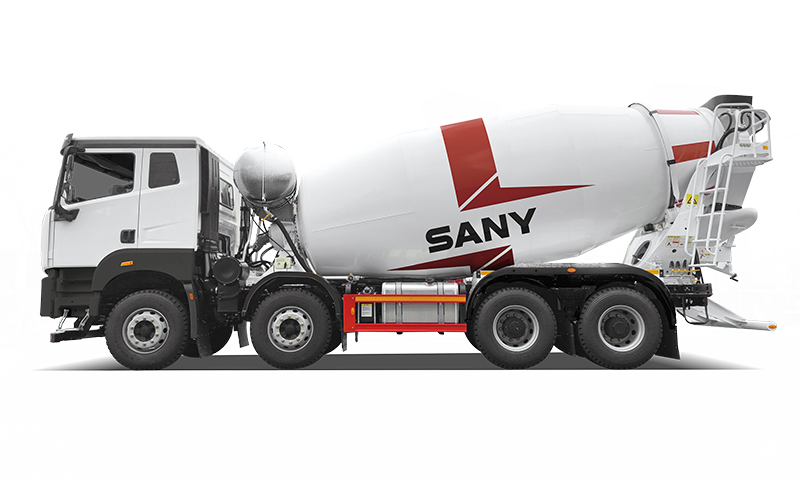

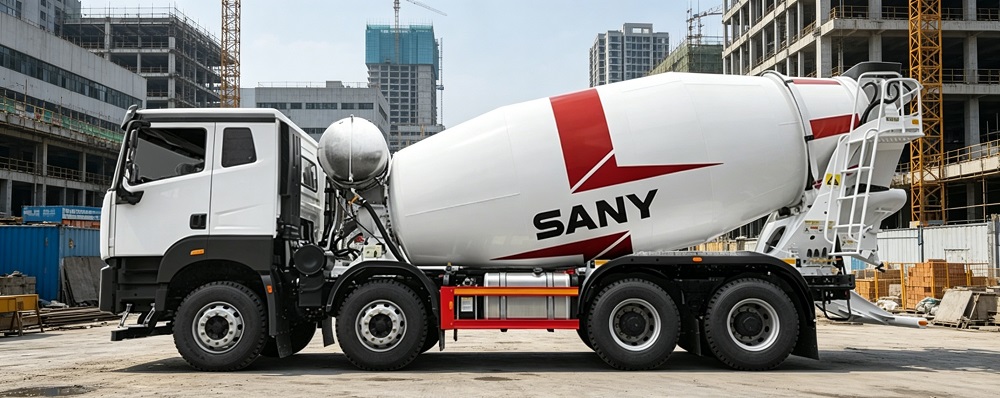

Sany SY412C-8S (Ⅴ)

Request a Quote

Parameters

Specifications & Parameters

Engine Model	D12C5-435E1
Rated Power(kW)	320
Engine Revolutions(rpm)	1900
Maximum Torque(N·m)	2150
Inject Type	Electronic Injection
Fuel consumption(L/h)	42
Engine Displacement(L)	12.12
Emisson	China Stage Ⅴ / Euro Ⅴ
Fuel Tank(L)	300
Hydraulic Tank(L)	200
Travel Speed(km/h)	80
Operating Weight(kg&ton)	15200
Specifications(mm)	10300×2525×3980
Size Class	Medium
Power Type	Diesel
Walking Mode	Wheel
Country of Origin	China
Year of Production	2024
Condition	Used
Working Hours(h)	2000/5000/7000
Price($)	Get the Latest Price from sales via WhatsApp

Drum

Mix Capacity	12m³
Feeding Speed	≥8m³/min
Discharge Speed	≥5m³/min
Water Tank Capacity	1000L

Overall Specification

Curb Weight	15200kg
GVW	44000kg
Dimension (L×H×W)	10300×2525×3980mm
Wheel Base	1900+2950+1350mm

Driving Motor

Engine Brand	D12C5-435E1
Cab	Sany Cab CB329

Engine

Displacement	12.12L
Rated Power/Rev Speed	320/1900kW/rpm



Features

Specialized Cab
Safe and secure
Built for the driver
Convenient ACCESS maintenance
Attractive styling
Panoramic monitoring (optional)
Improved Braking
By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear is decreased by 50%. Sany uses a high-volume air compressor, high quality piping, and new sealing technology that shortens air build up time and brake response time.
Energy-saving Technology
The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
The frame is made of high-strength special steel plates, improving reliability and safety. It uses Sany's original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edge Steering Technology
The large displacement power steering pump reduces operator effort by 40%. Optimized chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
The three-section blade provides an efficient discharge angle.
The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
Each truck is equipped with a GPS system, which features five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep good management of the mixer truck's location, maintenance items, discharge, etc.
Maintenance Tips
Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling.

Interested in used Sany SY412C-8S (Ⅴ) Concrete mixer truck? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
