Used VOLVO EC140BLC
Parameters
| Engine Model | Volvo D5D EBE2 |
| Rated Power(kW) | 91.7 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 390 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 10-13 |
| Engine Displacement(L) | 4.8 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 250 |
| Hydraulic Tank(L) | 235 |
| Travel Speed(km/h) | 30 |
| Bucket Capacity(m³) | 0.75 |
| Bucket Digging Force(kN) | 93.2 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8200 |
| Maximum Digging Height(mm) | 8600 |
| Maximum Digging Depth(mm) | 5000 |
| Specifications(mm) | 7500 × 2540 × 3370 |
| Operating Weight(kg&ton) | 15400 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2011 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
1.???? Power system: sturdy and durable, fuel-efficient
Equipped with Volvo's self-developed D4D turbocharged engine (4.0L displacement, 69kW rated power, 390N · m @ 1500rpm), it has high torque at low speeds, strong power at low speeds, and does not hold up the car even under heavy load conditions.
Adopting mechanical direct injection and two-stage air filtration design, it has strong adaptability to oil products, low failure rate, and lower maintenance costs compared to Japanese models of the same era.
The combination of turbine and intercooler has high combustion efficiency and lower fuel consumption compared to other models in the same class under the same operating conditions. It can save a lot of fuel money over the long term.
2.⚙️ Hydraulic system: stable and smooth, coordinated action
Equipped with Volvo's original hydraulic system as standard, the flow distribution is precise, the compound action is smooth, and it is easy to throw soil, level, and dig trenches, making it easy for beginners to get started.
Equipped with an auxiliary hydraulic valve, the crushing hammer pipeline interface is reserved at the factory, which can be used directly by installing the hammer. It has strong compatibility and is easy to modify later on.
The hydraulic system has strong anti attenuation ability, and old machines are not prone to slow movement and arm dropping problems. Its stability has always been well received.
3.????️ Structure and durability: solid materials, resistant to manufacturing and manufacturing
The upper and lower arms are welded using robot welding technology, which has high weld strength and is not easy to crack. Even old machines over 10 years old rarely have the common problem of upper arm cracks.
LC has a long chassis design, with a large track contact area and strong stability. It is also less likely to overturn when working on soft soil or slopes, and has higher safety than short chassis models.
The walking mechanism adopts sealed and lubricated track chains to reduce wear, and the service life of chassis components is longer than other brands in the same class.
4. ????✈️ Cabin and control: comfortable, worry free, and user-friendly
Volvo caring cab, spacious, equipped with air conditioning and shock-absorbing seats, excellent noise control, and is not easily tired during long hours of operation.
The cab adopts hydraulic shock absorbers, which have good filtering effect on bumps and reduce operator fatigue; Standard air filtration system to reduce dust ingress.
The maintenance points for key components are concentrated on one side, and maintenance can be done by opening the side door. Oil changes and filter inspections are also very convenient, with short downtime.
5. ???? Multi scenario adaptation: municipal/earthwork/crushing all rounder
With a 14 ton body size that balances flexibility and operational efficiency, it is capable of handling municipal construction, road renovation, landscaping, and earthwork projects.
In the crushing mode, the hydraulic system output is stable, and the efficiency and durability of the crushing hammer are good. Many construction sites use it for long-term hammering.
The models produced by the Changwon factory in South Korea have strict quality control standards, solid materials and assembly processes, and a good resale value in the second-hand market.

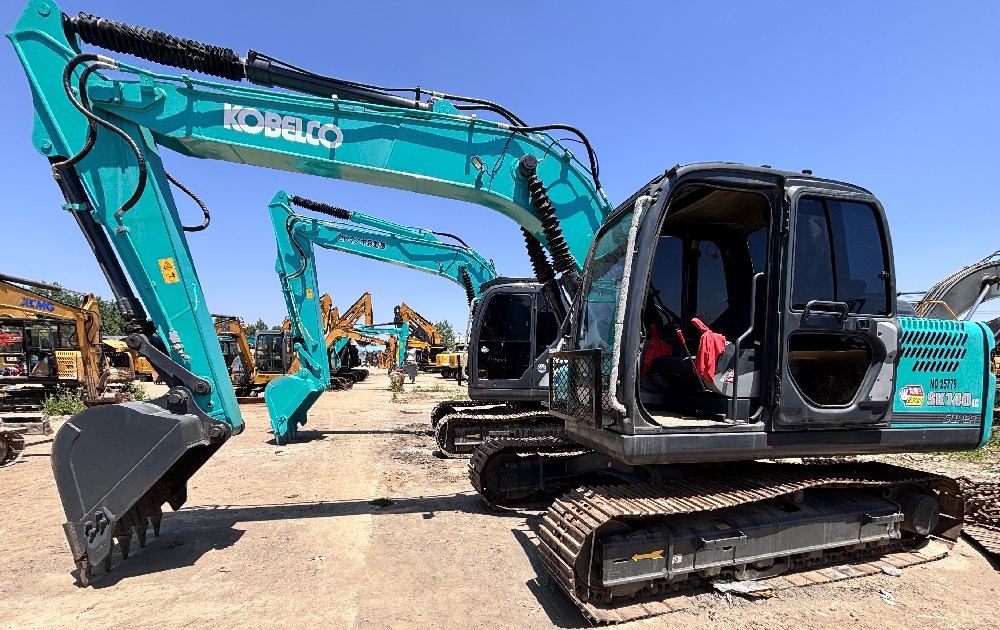

Photos
