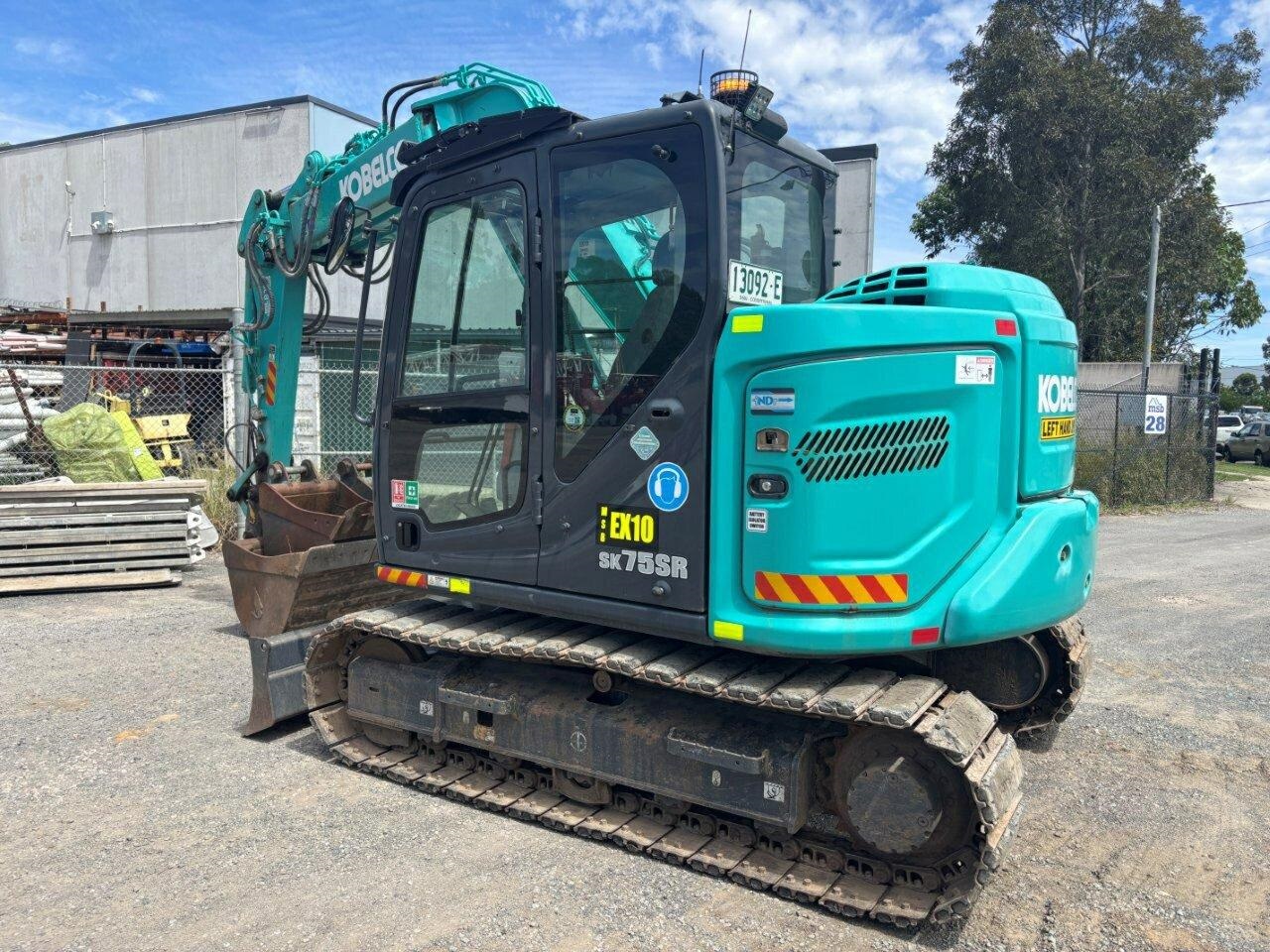

KOBELCO SK75SR-6
Specifications & Parameters
| Engine Model | ISUZU AU-4LE2X |
| Rated Power(kW) | 21 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 211 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 3.7-4.8 |
| Engine Displacement(L) | 2.179 |
| Emisson | Tier3 |
| Track width(mm) | 450 |
| Fuel Tank(L) | 120 |
| Hydraulic Tank(L) | 36 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 0.28 |
| Bucket Digging Force(kN) | 53.2 |
| Boom Length(mm) | 3840 |
| Stick Length(mm) | 1710 |
| Maximum Excavation Radius(mm) | 6490 |
| Maximum Digging Height(mm) | 7410 |
| Maximum Digging Depth(mm) | 4190 |
| Specifications(mm) | 5850×2300×2550 |
| Operating Weight(kg&ton) | 7630 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
7520kg short tail swing excavator, production year 2019–2024, overall dimension 5850×2300×2550mm
Fixed track width 2300mm, standard 450mm steel tracks, optional rubber tracks for pavement jobs
Standard bucket capacity 0.28m³, compatible with breaker, auger, grapple attachments
Boom 3840mm + standard stick 1710mm, optional long stick 2130mm for deeper excavation
ISUZU 4-cylinder turbo engine, Emission: Tier3, max torque 211N·m, fuel consumption 2.8–6.2 L/h
120L large fuel tank, 36L hydraulic tank, supports long continuous shifts
Short tail swing design, iNDr low noise cooling system, mature mechanical injection engine without urea maintenance
